Quick Details
-
Brand Name:
-
C
-
Model Number:
-
V101B
-
Warranty:
-
12 Months
-
Function:
-
Monitoring Tire Pressure
-
Keyword:
-
Tire Sensor Tpms
-
Color:
-
Black
-
Material:
-
ABS+stainless Steel
-
Usage:
-
Car TPMS Tool
-
MOQ:
-
2pcs
-
Pressure range:
-
± 10kPa
-
Battery life time:
-
3-5 Years
-
Work Temperature:
-
-30℃~ +70℃
-
Certification:
-
ce
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
3V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
C
-
Model Number:
-
V101B
-
Warranty:
-
12 Months
-
Function:
-
Monitoring Tire Pressure
-
Keyword:
-
Tire Sensor Tpms
-
Color:
-
Black
-
Material:
-
ABS+stainless Steel
-
Usage:
-
Car TPMS Tool
-
MOQ:
-
2pcs
-
Pressure range:
-
± 10kPa
-
Battery life time:
-
3-5 Years
-
Work Temperature:
-
-30℃~ +70℃
-
Certification:
-
ce
Specification
|
product name
|
v101b 5.0 tpms
|
|
color
|
black
|
|
Collection
|
Collect with Phone, Show datas on the phone
|
|
Usage
|
for 4 tires Home car
|
|
APP Installation
|
Option 1:Scan QR code on card, then download and install;
Option 2: Search "TPMSII" in APP store or Google play Store, then download and install |
Product Description

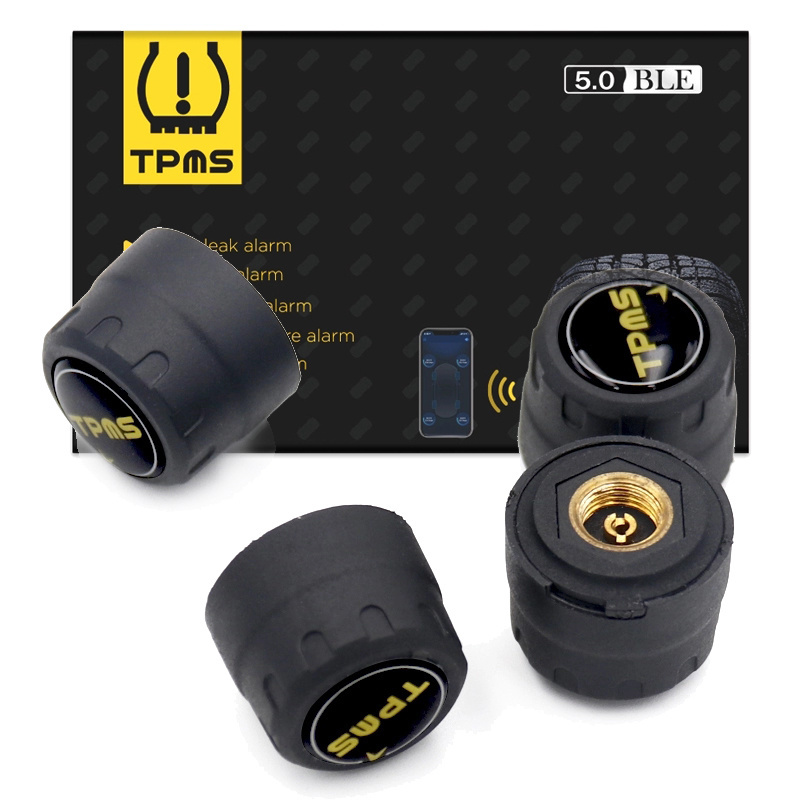

Introduction for BT5.0 External TPMS
Thanks for choosing our BLE TPMS product which is designed for smart cellphones and supports cellphone with
BLE
4.0 or above. Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety,please read manual before using, thank you!
TPMS Benefits
Puncture Protection: Real time monitor pressure and temperature nip in the bud.
Save the Fuel: Keeping correct tire pressure, lower fuel consumption.
Less Treadwear: Insufficient pressure causes treadwear which shorten the tire life span.
Save the Fuel: Keeping correct tire pressure, lower fuel consumption.
Less Treadwear: Insufficient pressure causes treadwear which shorten the tire life span.
TPMS Specifications
Processor: ARM M0
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 1.5μA
Working Frequency: 2.4GHz
Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s
Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃ (Outer Sensor)
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 1.5μA
Working Frequency: 2.4GHz
Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s
Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃ (Outer Sensor)
Storage Temperature: -30℃ ~ +85℃ (Outer Sensor)
Storage Temperature: -45℃ ~ +125℃ (Inner Sensor)
Battery Capacity: 140mAh (Outer Sensor)
Battery Life: 3~5 Years (Outer Sensor)
Sensor Weight: 10g±1g(Outer Sensor)
Battery Capacity: 140mAh (Outer Sensor)
Battery Life: 3~5 Years (Outer Sensor)
Sensor Weight: 10g±1g(Outer Sensor)
Smart Terminal (APP):
Support CellPhone with BLE 4.0 or above.car status can be monitor in real-time. View each tire pressure and temperature easily.
APP Feature:
Fast Leakage Alert:
Pressure leakage above 5Kpa within 5 seconds, Fast Leakage Alert’s ON and “Leakage” icon appears.
High Pressure Alert:
Pressure value’s even higher than highest configured pressure limit, “High Pressure Alert’s ON.
Low Pressure Alert:
Pressure value’s even lower than lowest configured pressure limit, “Low Pressure Alert’s ON.
High Temperature Alert:
Temperature value’s even higher than Highest configured temperature limit, “High temperature Alert’s ON.
No Signal Alert:
No signal accepted for a while, No Signal Alert’s ON.
Low Battery Alert:
Battery voltage’s lower than configured value, Low Battery Alert’s ON.
Pairing instructions
Recommend use method:bind by scanning code open the APP, Please scan the QR code card which with words "one-clicking binding" or complete the binding by scan the corresponding sensor ID code
Installation and pairing :Open APP,please follow the sensor's mark and install sensor on corresponding tire until get each sensor data,The installation is complete
Note
:if the data of external sensor can't be get,please re-install the sensor.(please install slowly to make the air pressure fully contact the sensor
If the data of internal sensors can;t be get,please drive the car more than 20km/h and drive about 2-3km to get the data.
Packing List
4*Outer Sensor
1*Manual
1*Box
1*wrench
4* locknut
