Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XYZ-TECH
-
Voltage:
-
220V/380V 50/60HZ
-
Dimension(L*W*H):
-
3350*1950*1990mm
-
Weight (KG):
-
1000
-
drive mode:
-
stepper motor(servo for optional )
-
Repeatability accuracy:
-
0.0254mm
-
carving speed:
-
50m/min
-
control system:
-
NCstudio or DSP off-line
-
lathe bed:
-
cast wholly by iron
-
max motion speed:
-
80000mm/min
-
Operating Voltage:
-
3phase 380v
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XYZ-TECH
-
Voltage:
-
220V/380V 50/60HZ
-
Dimension(L*W*H):
-
3350*1950*1990mm
-
Weight (KG):
-
1000
-
drive mode:
-
stepper motor(servo for optional )
-
Repeatability accuracy:
-
0.0254mm
-
carving speed:
-
50m/min
-
control system:
-
NCstudio or DSP off-line
-
lathe bed:
-
cast wholly by iron
-
max motion speed:
-
80000mm/min
-
Operating Voltage:
-
3phase 380v

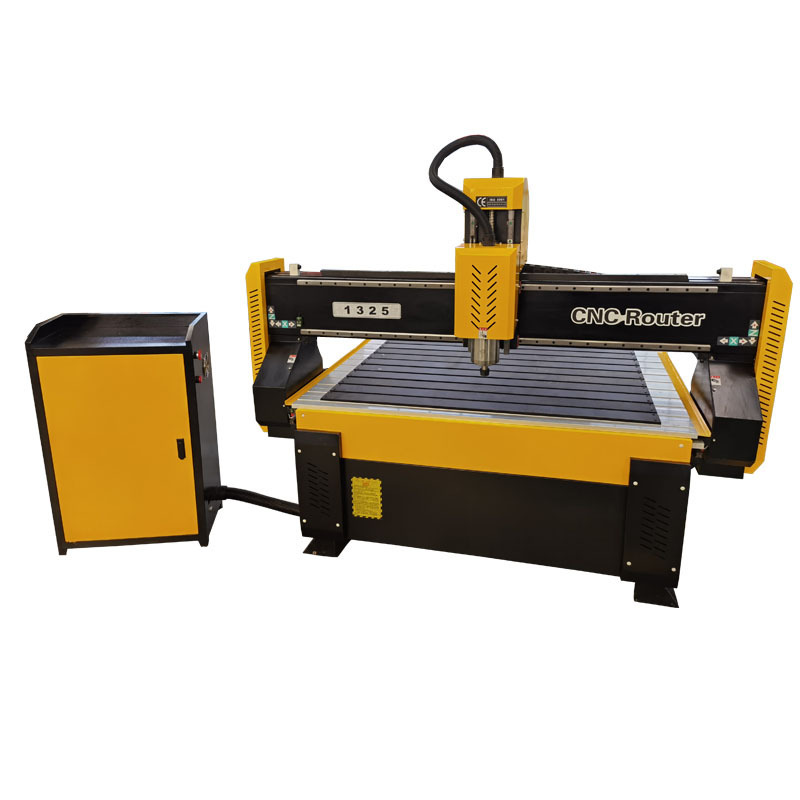

hot sale wood carving horizontal spindle 1325 machine double heads atc cnc wood carving cnc working router
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 8 year export and service experinece for overseas’ buyers.
Applications of cnc wood router:
a) Furniture processing industry
b) Decoration
c) Wooden art crafts
d) Wood furniture engraving
Features of cnc wood router:
1) Max motion/working speed can reach 50m/30m/min
2) Two-motor drive system ensures quick, even, stable operation
3) Highly accurate gears allow for engraving characters as small as 1.5mm
4) The subdivision, stepper motor, and the high power main shaft make the
machine more efficient
5) The vacuum cleaning system offers a clean working environment and better quality
6) USB ensures high speed and efficiency
7) The unique calculating system realizes speedy, accurate, curvy operation.
Technical specification of cnc wood router:
| Model | XJ1325 | ||
| Working Area |
1300×2500×200mm
|
||
| Spindle Motor | 9.0kw Inverter-driven spindle motor cooled by water (or air for option) | ||
| Working Mode | Stepper motor (servo motor for your optional ) | ||
| Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system | ||
| Drive Mechanism | Gear-wheel on x,y axis | ||
| Table Surface | Vacuum table o& T-slot extrusions | ||
| Frame | wholly steel structure | ||
| Motion Positioning Accuracy | ± 0.03/300mm | ||
| Repositioning Accuracy | ± 0.05mm | ||
| Max Motion Speed | 80,000mm/min | ||
| Max Engraving Speed | 50,000mm/min | ||
| Rotating Speed of Spindle | 2,4000rpm | ||
| Z-axis setting | Auto Z origin tool high sensor | ||
| Dictate Formate | G code, *.u00, *.mmg, *.plt | ||
| Operating Voltage |
3phase 380v |
||
| Software |
|
||
| Packing Size | 3350×1950×1990mm | ||
| Lubrication System | Oil lubrication system | ||
| Net weight/ Gross Weight | 1227kg/ 1240kg | ||
| Noise Level | Racing | LAeep dB(A)72±1 | |
| Engraving | LAeep dB(A)80±2 | ||
| Engraving Peak | LAeep dB(C)95 | ||
| Optional Parts | Dust Collecting System | ||
| Vacuum Table with Air Pump (For XJ-1224,1325) | |||
| Mist Sprayer and flume | |||
| Rotary device with Dia80mm/100mm/200mm | |||
| DSP System w/Portable Control Pad (128MB) | |||
