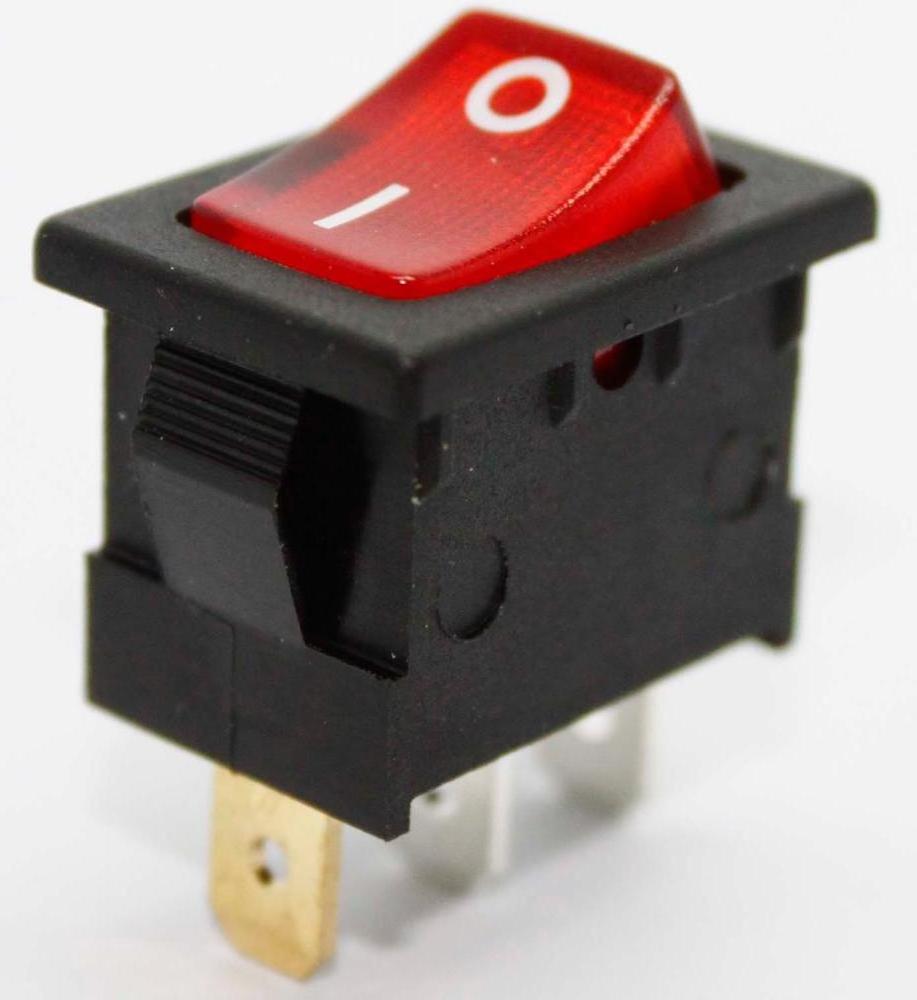

Quick Details
-
Model Number:
-
RL-311/N-G-2-RE/BK-P4
-
Max. Current:
-
16A
-
Mechanical Life:
-
20000
-
Function:
-
on off
-
Certificate:
-
ENEC
-
Color:
-
RED
-
Lamp color:
-
RED
-
Button Color:
-
RED
-
Housing color:
-
BLACK
-
Electrical Life:
-
10000
-
Certification:
-
RoHs
Quick Details
-
Max. Voltage:
-
125VAC
-
Place of Origin:
-
China
-
Brand Name:
-
RLEIL
-
Model Number:
-
RL-311/N-G-2-RE/BK-P4
-
Max. Current:
-
16A
-
Mechanical Life:
-
20000
-
Function:
-
on off
-
Certificate:
-
ENEC
-
Color:
-
RED
-
Lamp color:
-
RED
-
Button Color:
-
RED
-
Housing color:
-
BLACK
-
Electrical Life:
-
10000
-
Certification:
-
RoHs
SPECIFICATION:
1. CONTACT RESISTANCE : 50mΩMAX
2. INSULATION RESISTANCE :100MΩ MIN
3. DIELECTRIC STRENGTH :NO DAMAGE TO PARTS ARCING,OR BREAKDOWN ETC.
4. PRACTICAL TEMPERATURE RANGE :AT-16℃ ~+125 ℃
5.SOLDERABILITY TEST:THE TOP OF THE TERMINALS SHALL BE DIPPED 2mmINTHE SOLDER BATH OF 230+10℃ FOR 3+0.5 SECONDS.
6.RESISTANCE TO SOLDERING HEAT TEST:SOLDER BATH METHOD:SOLDER TEMPERATURE260+5℃ ,IMMERSION TIME5+0.5SEC,IMMERSION DEPTH UP TO THE SURFACE OF THE BOARD,DIMENSIONS OF COMPONENT HOLES IN THE PRINTED WIRING BOARD SHALL BEING ACCORDANCE WITH THOSE SPECIFIED IN THIS SPECIFICATION.
