N type full-auto facial tissue folding machine paper napkin folding machine facial tissue making machine

N type full-auto facial tissue folding machine paper napkin folding machine facial tissue making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

≥2 Sets

US $6400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V, 380V50HZ

Power:: 14KW, 3.0kw

Weight:: 800 kg, 800kg

Finished Products:: Extractor paper towel folding machine

Size:: 1050x800x1770(mm)

Folding speed:: 800-1100pcs/min

Width of the raw paper:: 200mm

Outer diameter raw paper:: 1200mm

Finished paper width:: 100-200mm

Source pressure:: 0.8Mpa

Quick Details

Production Capacity:: 800-1100pcs/min

Place of Origin:: Henan, China

Brand Name:: KOVI

Voltage:: 380V, 380V50HZ

Power:: 14KW, 3.0kw

Weight:: 800 kg, 800kg

Finished Products:: Extractor paper towel folding machine

Size:: 1050x800x1770(mm)

Folding speed:: 800-1100pcs/min

Width of the raw paper:: 200mm

Outer diameter raw paper:: 1200mm

Finished paper width:: 100-200mm

Source pressure:: 0.8Mpa

Product Description

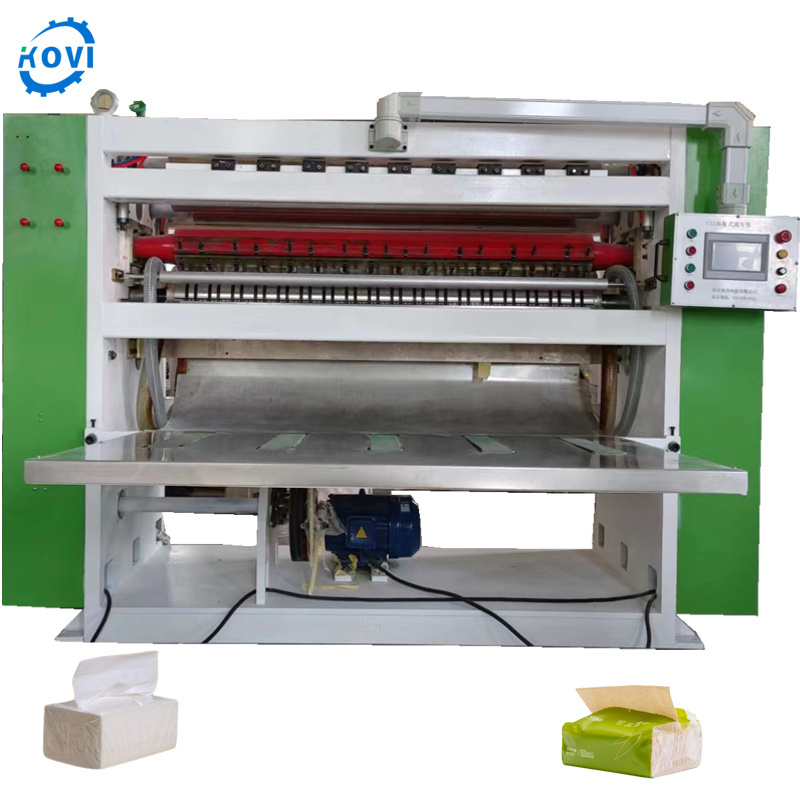

N Fold Hand Towel Machine

N folding hand towel machine process paper material after embossing,cut off,interfold become N fold,The products are widely used in hotels, office and kitchenand so on,convenient health.This machine can folding,slitting,counting,with high speed,output orderliness. 1.Using PLC microcomputer program control, frequency conversion control system, multi-function touch screen, real-time monitoring of equipment operation, independent drive control and tension control, product quality is more guaranteed lead protection device, automatic shutdown to avoid damage, rotary controller, easy operation, beautiful appearance; 2.The knife adopts spiral (scissor) guide knife, the guide cloth is simple, avoid the damage of the blade, the noise is small, easy to adjust, and ensure that the cutting is not connected; 3.The front and back feeding adopts independent moving rubber arc roll to avoid folding surface wrinkling and prevent dust accumulation and pollution of the finished product; 4.The machine adopts wallboard fuselage structure to ensure more stable high-speed operation of the machine, adopts synchronous gear belt and flat belt transmission, high transmission precision and maintenance-free; 5. Can be connected with automatic cutting equipment and automatic packaging equipment for production.

If you need more information, you can send us specific information and we will help you.

Technological parameters	2L	3L	4L	5L
Finished products size	230（L）X230±2mm(Other sizes are available)
Raw material size	460mm	690mm	920mm	1150mm
Raw material core diameter	76.2mm(Other sizes are available)
Speed	0-100m/min (Depending on the machine model)
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding Type	Vacuum suction“N”fold
Transmission Unit	Timing belt
Counter	Ink marked
Embossing unit	Streel to steel
Slitting unit	Pneumatic dot slitting
Pneumatic system	3HP Air compressor,mini air pressure 5 kg/cm2 (provided by customer)
Total power	14KW	18KW	19KW	24KW
