2. Low-speed rotation: the rotation speed of the rotating shaft is about 2-3 rpm, low electrode consumption, few failures, low noise and vibration, and safe operation.
3. It is not easy to be clogged: It has the function of self-cleaning, and does not need to be cleaned to prevent the filter from clogging, reducing the amount of flushing water and the burden of internal circulation.
4. Simple operation: Through the electric control cabinet, it is linked with the drug bubbler, the mud pump, the dosing pump, etc., to achieve 24-hour continuous unmanned operation, short daily maintenance time, and simple maintenance operations.
5. Small design: compact design, the dehydrator includes an electric control cabinet, a metering tank, a flocculation mixing tank and a dehydration main body. It occupies a small space and is easy to repair and replace.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Wooden box, Stainless steel
-
Weight:
-
2000 kg
-
Size:
-
5160*3160*2100 mm
-
Power:
-
7.1
-
Productivity:
-
10000
-
Weight (KG):
-
800 kg
-
Product name:
-
Screw press dewatering machine
-
Application:
-
Sludge dewatering
-
Function:
-
Sludge treatment
-
Color:
-
custom
-
Certification:
-
ISO
-
Capacity:
-
10~180 m³
-
Voltage:
-
380V/220V
-
Operation:
-
Automatic control
-
Filter Media:
-
Screw
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
China
-
Brand Name:
-
KTL
-
Material:
-
Wooden box, Stainless steel
-
Weight:
-
2000 kg
-
Size:
-
5160*3160*2100 mm
-
Power:
-
7.1
-
Productivity:
-
10000
-
Weight (KG):
-
800 kg
-
Product name:
-
Screw press dewatering machine
-
Application:
-
Sludge dewatering
-
Function:
-
Sludge treatment
-
Color:
-
custom
-
Certification:
-
ISO
-
Capacity:
-
10~180 m³
-
Voltage:
-
380V/220V
-
Operation:
-
Automatic control
-
Filter Media:
-
Screw
Products Description

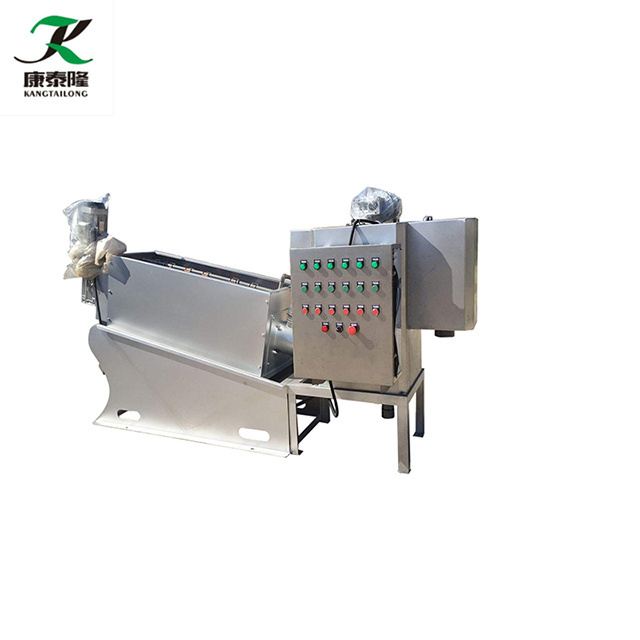

Screw press sludge dewarting treatment
1.
Adapt to a wide range:
T
he spiral sludge dewarting machine is suitable for the dehydration of high and low concentration sludge; suitable for small sludge treatment projects; suitable for municipal government sewage, food, beverage, livestock, chemical, pharmaceutical, printing and dyeing, leather, paper, welding materials And other industries.
Images
Product Paramenters
|
Type
|
Motor Power
|
Washing water consumption(L/H)
|
Sludge treatment capacity(m³/h)
|
Processing capacity (kg.DS/h)
|
|
DL-101
|
0.2kw
|
24
|
2-0.15
|
3-6
|
|
DL-102
|
0.2kw
|
48
|
4-0.25
|
6-12
|
|
DL-103
|
0.2kw
|
72
|
6-0.35
|
9-18
|
|
DL-201
|
0.8kw
|
32
|
7-0.4
|
10-20
|
|
DL-202
|
0.8kw
|
64
|
10-0.7
|
18-30
|
|
DL-203
|
0.8kw
|
96
|
16-1.0
|
28-50
|
|
DL-301
|
0.8w
|
40
|
17-1.2
|
30-50
|
|
DL-302
|
1.2kw
|
80
|
30-2.0
|
60-100
|
|
DL-303
|
1.95kw
|
120
|
45-3.5
|
90-150
|
