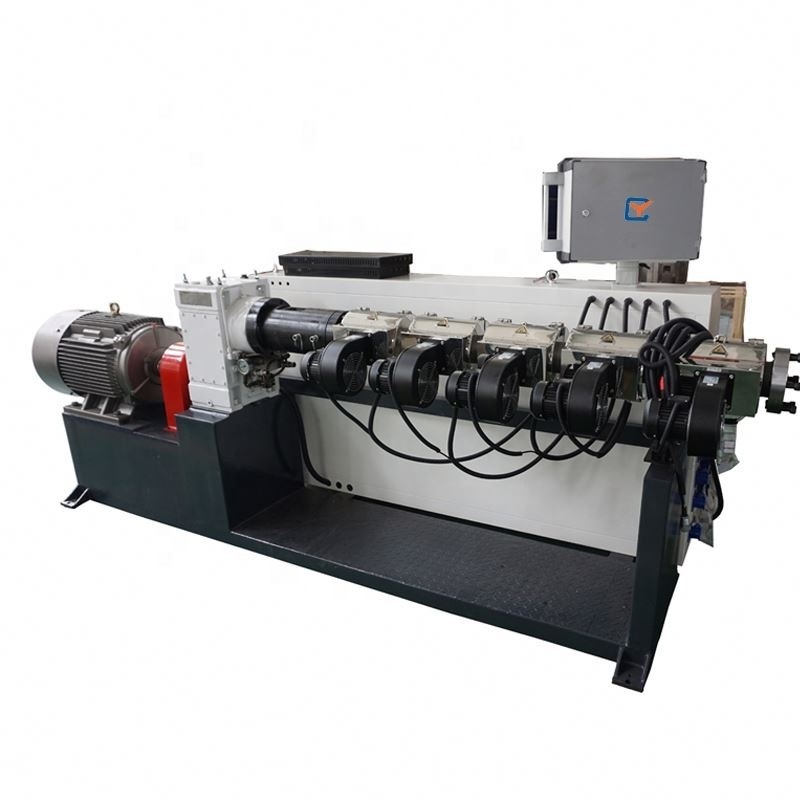

1. The extruder of HDPE pipe line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water
jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening
teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The
control system adopts Siemens PLC control or button control.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
5000 KG
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
38:1
-
Screw Speed (rpm):
-
200 rpm
-
Place of Origin:
-
China
-
Weight:
-
5000 KG
Products Description
HDPE PIPE Extrusion Production Line
|
1
|
SJSZ65/132 Conical Twin Srew Plastic Extruder
|
1set
|
|
2
|
Mould
|
1set
|
|
3
|
Vacuum Calibration Tank
|
1set
|
|
4
|
Two caterpillars Hauling Machine –
|
1set
|
|
5
|
Pipe Cutting Machine
|
1set
|
|
6
|
Stacker
|
1set
|
1.We are a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines, plastic production line.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
3.Our plastic making machine can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.
4.Plastic Extruder is widely used in Plastic industry. It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line, Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe, machines to produce pellet, laminating machine, wooden window frames machine. Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery. Our plastic machine have long-life.
2.Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
3.Our plastic making machine can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.
4.Plastic Extruder is widely used in Plastic industry. It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line, Plastic Recycling Line and Plastic Granulating Line.
5.We provide plastic machine which can make Agriculture pipe, machines to produce pellet, laminating machine, wooden window frames machine. Our machine can make 3D printer material.
6.Our plastic extruder use good quality screw in plastic machinery. Our plastic machine have long-life.
Product Appliaction
It is widely used in producing HDPE water supply pipes, gas supply pipes. It can make HDPE pipes with diameter from 16mm to 1600mm. With many years of our plastic machinery development and design experience, this HDPE pipe extrusion line has the unique structure,the design is novel, the equipment entire line layout is reasonable, the control performance is reliable. By different requirement, this pipe line could be designed
as multiply-layer pipe extrusion line.
Recommend Products
Technical Parameter
|
Specifications
|
|
|
|
|
||||
|
Machine Model
|
|
FCPL
|
|
|
||||
|
Processed Material
|
|
PVC,PE,HDPE PPR and etc.
|
|
|
||||
|
Final Product Shape
|
|
Pipe
|
|
|
||||
|
Output Range(kg/h)
|
|
120-1100
|
|
|
||||
|
Diameter of screw
|
|
50mm-130mm(standard)
|
|
|
||||
|
Voltage Standard
|
|
According to the Voltage of the Customer's Location
|
|
|
||||
|
Warranty
|
|
12 months from the date of bill of lading
|
|
|
||||
|
Technical services
|
|
Project design, factory construction, installation and recommendations, commissioning
|
|
|
||||
|
Diameter scope(mm)
|
Conical twin-screw extruder
|
Motor(KW)
|
Max.Capacity(KG/H)
|
Max. Lineal speed(m/min.)
|
|
16-40Dual
|
SJZ51/105
|
18.5
|
120
|
10
|
|
20-63Dual
|
SJZ65/132
|
37
|
250
|
15
|
|
20-63
|
SJZ51/105
|
18.5
|
120
|
15
|
|
50-160
|
SJZ65/132
|
37
|
250
|
8
|
|
63-200
|
SJZ65/132
|
37
|
250
|
3.5
|
|
160-315
|
SJZ80/156
|
55
|
350
|
3
|
|
75-160Dual
|
SJZ92/188
|
110
|
800
|
6
|
|
315-630
|
SJZ92/188
|
110
|
800
|
1.2
|
|
560-800
|
ATP130/26
|
160
|
1100
|
1.3
|
Details Images
1.Far Creative Twin Screw Extruder
2.Die Mould
- Spacious flow channel design to guarantee highextrusion capacity and good melt.
- Optimized temperature control and flow channeldesign, precise melt temperature control.
- Optimized temperature control and flow channeldesign, precise melt temperature control.
3. Vacuum
calibration
tank
The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank
and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes;spraying
cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes;spraying
cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4.
Haul-off Unit
For the different pipe size and different speed requirement, Far Creative developed kinds of haul-off unit accordingly.
The haul-off unit equiped with single motor drive or every caterpilar with seperate motor drive ,
there is the belt tyope haul-off unit,stable hauling.
For the large diameterpipe, a pipe winch device is equipped to the production line to reduced the waster material.
The haul-off unit equiped with single motor drive or every caterpilar with seperate motor drive ,
there is the belt tyope haul-off unit,stable hauling.
For the large diameterpipe, a pipe winch device is equipped to the production line to reduced the waster material.
5.
Cutter
The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to
reduce the work of maintenance to the lowest degree.
reduce the work of maintenance to the lowest degree.
