- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ODD-V5
-
Resolution:
-
1080*720
-
WIFI:
-
WIFI 802.11b/g/n
-
lens:
-
3.6mm, B/W, CMOS
-
work temperatue:
-
-40°c--+70°c
-
Vision angle:
-
166° Wide Angle
-
Pickup Range:
-
5m
-
Features:
-
Motion Detection
-
Type:
-
Two-way Audio
-
Waterproof:
-
Waterproof / Weatherproof
Quick Details
-
Additional Function:
-
Recording Function, Support WIFI, Weatherproof, Snapshot
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oddvans
-
Model Number:
-
ODD-V5
-
Resolution:
-
1080*720
-
WIFI:
-
WIFI 802.11b/g/n
-
lens:
-
3.6mm, B/W, CMOS
-
work temperatue:
-
-40°c--+70°c
-
Vision angle:
-
166° Wide Angle
-
Pickup Range:
-
5m
-
Features:
-
Motion Detection
-
Type:
-
Two-way Audio
-
Waterproof:
-
Waterproof / Weatherproof

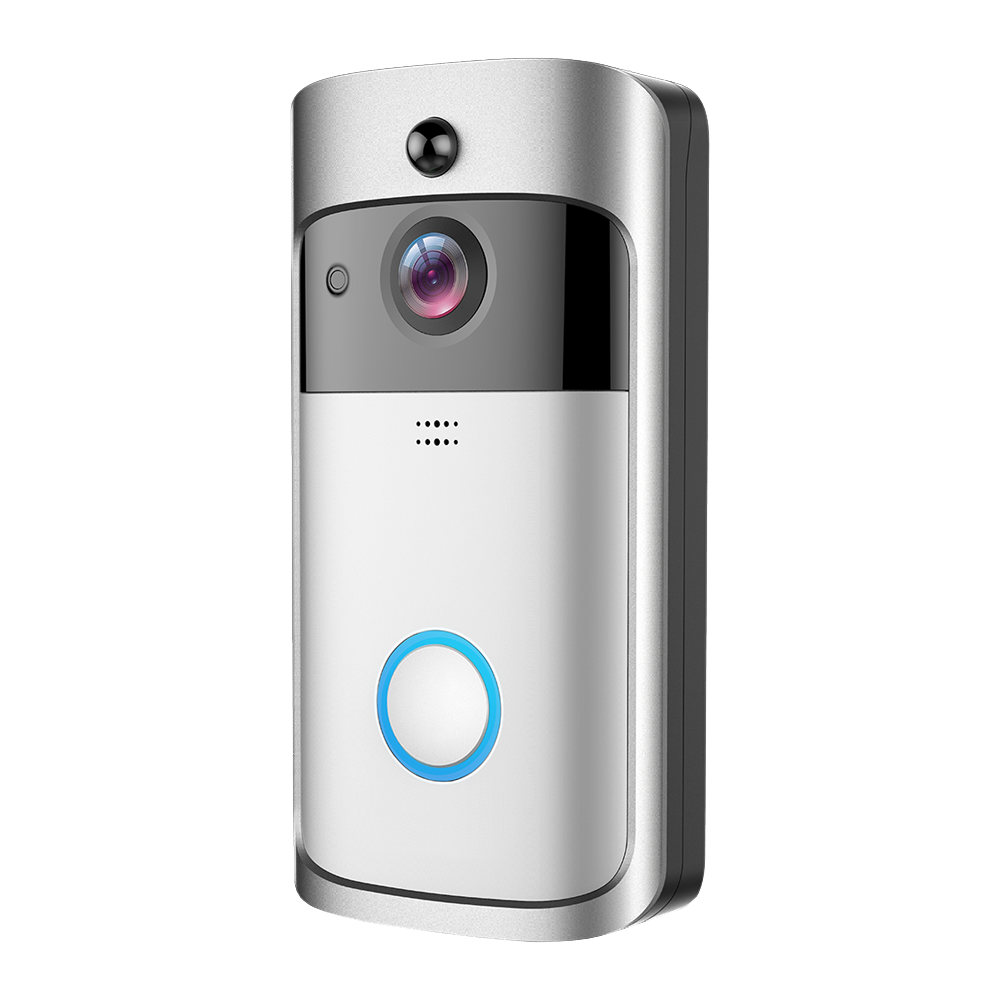

Factory Direct Supply Smart Doorbell Video Door Phone Night Vision vdp ip Ring Cameras Doorbell
| Specification | |
| Chipset(CPU) | GM8135S,ARM®CPU core 32bit RISC up to 600MHZ |
| Sensor | 720p GC1054 CMOS |
| Lens | 140° wide angle |
| Sensor capability | Support automatic white balance, automatic gain control, automatic backlight compensation |
| Signal to noise ratio | ≥39dB |
| Minimum illumilation | Night mode: low trigger (<=8Lux) |
| Night vision |
double filter automatic switching
6pcs 850nmΦ28Mil high power infrared lights night vison 5 meters |
| Video format | H.264 |
| Video size/frame rate | 720P15fps |
| Video mode |
1. Record when there is motion detection
2. Record when someone ring the doorbell 3. Record manually from APP |
| Battery type/capacity | 18650 battery cell, 2600mAH |
| Battery discharge time | 3 batteries last for 3-4 months |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,,DHCP,DNS,DDNS,NTP,RTP,P2P,etc. |
| WIFI connection | support (802.11 b/g/n) |
| Storage | support TF card 8GB~32GB |
| Working voltage | DC: 5V 1.5A |
| Working current | 300mA |
| Charging voltage | DC 5V / 1A |
| Storage temperature(℃) | (0℃~50℃) |
| Operating temperature(℃) | Working temperature: -10~50℃ |
| Operating humidity | <95% |
| Wake-up methods |
1. Wake-up by ringing the doorbell
2. Wake-up by PIR motion detection 3. Wake-up by APP live preview |
| Application/Use | When there is visitors, the doorbell can record short videos, do two-way talk, and the house owner can see online what is happening outside the house. |
| Features | Wireless installation; ultra-low power consumption; long distance active wake-up; support multiple users view online at the same time |
| AC Power | AC 8-16v |
Feature
Power: Low-power Doorbell, more environment friendly
S ystem security: password authority management, have a call automatically, and also support PIR detection.
P2P technology: wireless
M
obile phone visit:
support IPhone,
Android 2.2 above mobile phone long-distance answer doorbell and
unlocking,
support motion detection,give an alarm message sink
as well as long-distance surveillance,
and support long-distance
video
recording
C
ompress mode:
H.264
Signal System: CMOS Sensor
F
rame rate:25/
30
fps
I
mage adjustment:
a
utomatic white balance,
B
ack
light compensation
Lens
: I
nfrared LED:
6
IR LEDs, Night visibility up to 15
meters
A
larm detecting motion detection,
detection sensitivity set
I
mmediately give an alarm:
immediately give an alarm to mobile phone
S
ystem:
Android 2.2 above versions IOS system iphone,
Android
Package includes:
1 * WIFI doorbell
1 * bracket holder
2 * Rechargeable battery(optional)
1 * Screws bag
1 * User manual
Packing
