Quick Details
-
Voltage:
-
380V,50HZ
-
Power:
-
6KW
-
Dimension(L*W*H):
-
4700X900X1650MM
-
Weight:
-
1500 kg
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
motor:
-
servo
-
certification:
-
CE,TUV
-
warranty:
-
one year
-
Product name:
-
Jumbo Tissue Paper Making Machine
-
After Warranty Service:
-
Video technical support
-
Application:
-
Disposable Hygiene Industry
-
Raw material:
-
spunlace
Quick Details
-
Production Capacity:
-
150-200 pcs/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DC
-
Voltage:
-
380V,50HZ
-
Power:
-
6KW
-
Dimension(L*W*H):
-
4700X900X1650MM
-
Weight:
-
1500 kg
-
Warranty:
-
one year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
motor:
-
servo
-
certification:
-
CE,TUV
-
warranty:
-
one year
-
Product name:
-
Jumbo Tissue Paper Making Machine
-
After Warranty Service:
-
Video technical support
-
Application:
-
Disposable Hygiene Industry
-
Raw material:
-
spunlace

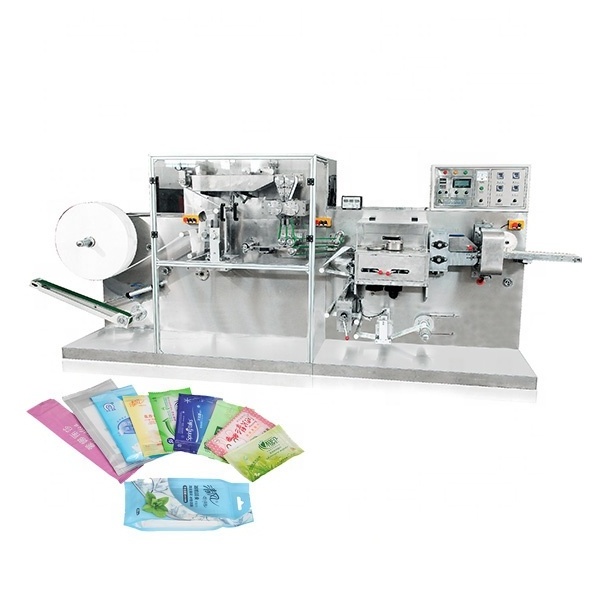

Machine Picture
Machine working procedure
Raw materil folding → → W etting → → C utting → → C ounting → → feeding to the packing film → → Longitudinal and horizontal sealing →→ Cutting product output
Finished product as follow
Technical Parameter
|
Motive factor |
6KW |
|
Power supply |
380V, 50HZ |
|
Suitable material |
Spun-lace non-woven fabrics, Hot-rolling non-woven fabrics, air laid paper. |
|
Quality of material |
40~80g/m2 |
|
Size of raw material |
(150-200)* Φ1000 mm (W*Dia) |
|
Production size(unfolded) |
(160-260mm)*(150-200mm)(L*W) |
|
Production size(folded) |
(80-130mm)*(50-80mm)(L*W) |
|
Production speed |
150-200pcs/min |
|
Packing film |
OPP/PE, PET/PE. |
|
Control system |
PLC control system, color touching screen |
|
Machine size(mm) |
4700*900*1650(L*W*H) |
|
Weight of machine(kg) |
1500KG |
Dachang offer all kinds of wet wipes line solutions
