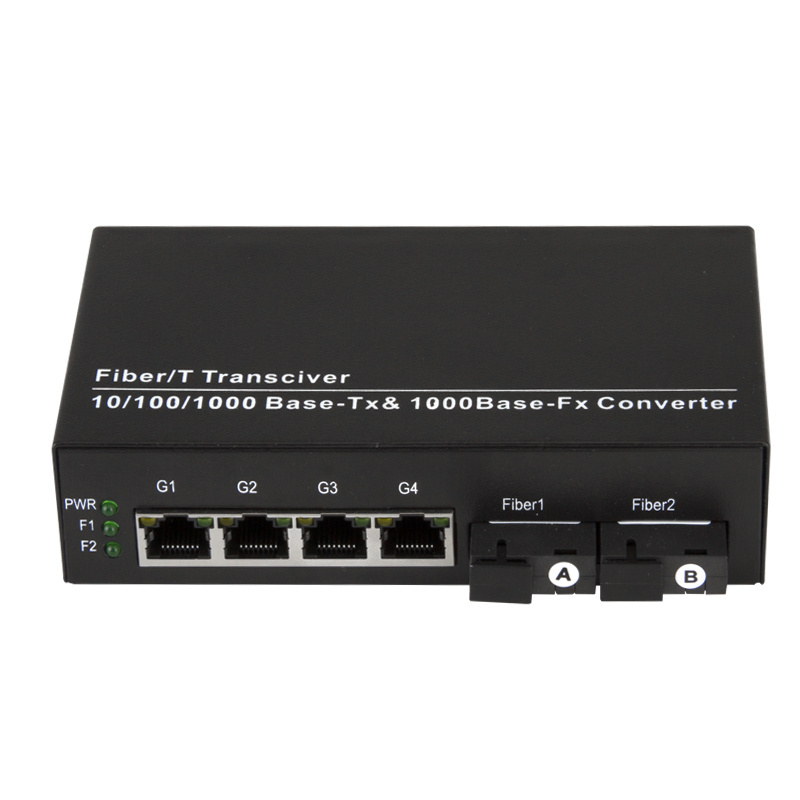

OEM 4 Port 10/100/1000M POE Switch + 2 Port 1000M POE Optical Fiber Switch

Parameter:

Weight: 0.8kg
Size: 140*95*40mm
Type: Standard (stand-alone)
Total power supply: DC48V 60W
Backplane Bandwidth: Standard Kraft Box

Features:
1.Support wireless access point (AP with POE function) and network surveillance camera (with POE function) through Category 5 Ethernet cable
2. 5~25 ports support standard IEEE802.3af power supply
3. 5-25 10/100/1000Mbps adaptive RJ45 ports
4. Comply with IEEE802.310Base-T and IEEE802.3u100Base-TX standards
5. Flow control mode: full duplex adopts lEEE802.3x standard, half duplex adopts
Back pressure standard
6. Support port auto flip (Auto MDl/MDlX)
7. Support uplink port lightning protection (port meets secondary lightning protection requirements)
8. Each port theory can reach 15.4W
9. Exchange mechanism using store-and-forward
10.The port supports wire-speed switching, and the line speed can be reached within the range of 64~1536 frames.
11. No fan, natural heat dissipation
12. Small, compact, quiet design suitable for placement on the desktop or wall

Product applicable :
1.Million HD monitoring transmission and power supply
2.Wireless AP layout transmission and power supply
3.Internet telephony transmission, smart home system, urban intelligent traffic monitoring system (ITS), safe city, wireless city
4.Highway monitoring system, electronic road monitoring, and capture system
5. Large-scale factory and mine enterprise security monitoring system, network multi-function system
6.Remote multimedia teaching / campus monitoring, video conferencing system
7.Building intercom, wireless communication, video surveillance
