Quick Details
-
Material:
-
wooden cases, Stainless Steel,FRP
-
Weight:
-
300kg
-
Size:
-
1700*700*1600mm, 1700x1200x1600mm
-
Power:
-
2.5
-
Product name:
-

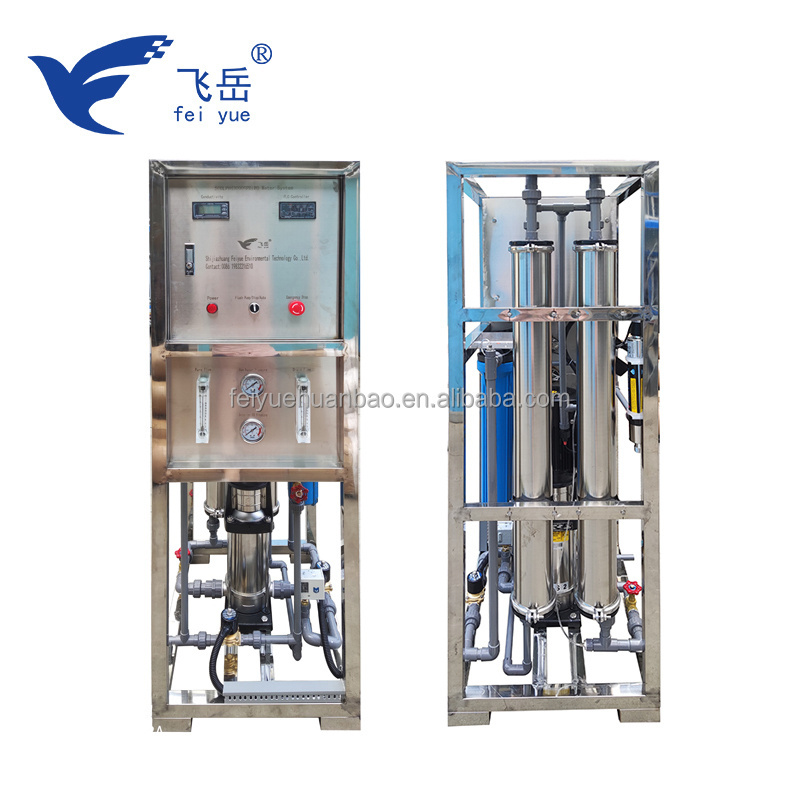

RO water treatment plant
-
On stream pressure:
-
0.7-1.1MPA
-
Capacity:
-
1000 Liter per hour
-
Voltage:
-
220V / 380V
-
Usage:
-
direct drinking water
-
RO Stage:
-
one stage
-
Ratio of Desalination:
-
≥98(%)
Quick Details
-
Applicable Industries:
-
Pure water treatment
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Feiyue
-
Material:
-
wooden cases, Stainless Steel,FRP
-
Weight:
-
300kg
-
Size:
-
1700*700*1600mm, 1700x1200x1600mm
-
Power:
-
2.5
-
Product name:
-
RO water treatment plant
-
On stream pressure:
-
0.7-1.1MPA
-
Capacity:
-
1000 Liter per hour
-
Voltage:
-
220V / 380V
-
Usage:
-
direct drinking water
-
RO Stage:
-
one stage
-
Ratio of Desalination:
-
≥98(%)
Product Introduction
1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable
membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different
osmotic pressures.
2.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and
condense.
3.More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse
osmosis.
4.It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable
characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy
operation and maintenance.
What's the information you need to Tell us before order?
A:What's your raw water?（Well Water,underground water or ?）
B:What's the capacity per hour of the equipment?C:How many hours do you need the machine work a day?
D:What's the application of purifier water?
E:Do you have raw water quality test report?What's your raw water TDS and hardness?
F:What is the power supply?(Such as 380V/50HZ,220V/50Hz etc;)
Depending on your water purification needs, you can ask our sales for more details and choose the most suitable water purification
solution.
Product description
Pressure: 0.8~1.2MPa
PH range: 5.5 ~8.5
Applicable temperature: 5~40°C
Feed Water TDS: ≤2000PPM
Desalination rate: ≥97%
Recovery rate: ≥50%
Organic matter removal rate: ≥99%
Bacterial removalrate: ≥99.9%
PH range: 5.5 ~8.5
Applicable temperature: 5~40°C
Feed Water TDS: ≤2000PPM
Desalination rate: ≥97%
Recovery rate: ≥50%
Organic matter removal rate: ≥99%
Bacterial removalrate: ≥99.9%
|
Model Number
|
Capcity(L/H)
|
Power(K/W)
|
RO Membrane
|
Size L*W*H(MM)
|
|
FY-RO-250
|
250
|
2.0
|
4040-1
|
1000*600*1600
|
|
FY-RO-500
|
500
|
2.0
|
4040-2
|
1630*600*1600
|
|
FY-RO-1000
|
1000
|
2.5
|
4040-4
|
2000*700*1900
|
|
FY-RO-2000
|
2000
|
3.5
|
4040-8
|
3000*800*1650
|
|
FY-RO-3000
|
3000
|
4.5
|
4040-12
|
4000*900*1750
|
|
FY-RO-4000
|
4000
|
6.5
|
8040-4
|
4750*900*1750
|
|
FY-RO-5000
|
5000
|
8.0
|
8040-5
|
4850*900*1900
|
|
FY-RO-6000
|
6000
|
8.0
|
8040-6
|
5500*800*1900
|
|
FY-RO-10000
|
10000
|
18.0
|
8040-10
|
5500*900*2850
|
ProductConfiguration
|
equipment name
|
specification
|
Material
|
brand
|
|
original water pump
|
CHL4-40, lift 36 meters of flow 4.0 cubic/hour
|
stainless steel
|
China Nanfang Pump
|
|
mechanical filter
|
400 x 1650 mm
|
Ф FRP
|
Beijing
|
|
Automatic valve head
|
flow 4.0 cube/hour model 5403
|
LED
|
Shandong
|
|
Activated carbon adsorber
|
Ф400 x 1650 mm
|
FRP
|
RongXin tai
|
|
automatic valve head
|
flow 4.0 cube/hour model 5403
|
LED
|
Shandong
|
|
metering pump
|
FGFY 601
|
electromagnetic diaphragm
|
Germany
|
|
precision filter
|
5 core flow 8 square
|
stainless steel
|
shenzhen
|
|
High pressure pump
|
cdl2-15Heading Pump 146 meter flow 2.0 cube
|
stainless steel
|
China Nanfang Pump
|
|
reverse osmosis membrane shell
|
US4040-1
|
stainless steel
|
|
|
RO film element
|
LP - 4040
|
polyamide
|
Hyde energy
|
|
meter
|
oil pressure shockproof
0-1mpa, 0-3mpa
|
0
|
Feiyue
|
|
Control valve
|
inlet and outlet DN20
|
brass
|
zhejiang
|
|
pipeline
|
DN15DN20, DN25
|
u-pvc
|
Feiyue
|
|
Electrical component
|
motor lacks phase, overload protection
|
|
Delixi
|
|
electric control box
|
|
stainless steel
|
Feiyue
|
|
rack
|
1500 * 700 x 1300mm
|
stainless steel
|
Feiyue
|
Product Details Show
Our product on trade fair
Technical conditions and indicators
1.1.2.1 pre-treatment: water yield: 2.0m3 / h
Residual chlorine acuities were 0.1 mg/l
1.1.2.2 level 1 reverse osmosis unit: water rate: 1.0 m3 / h (15 to 25 ℃)
Desalination rate is greater than 99%
Recovery rate is greater than 50%
Product Processing
500Liter per Hour Double Stage RO Water Machine for facial mask factory
2000Liter/Hour RO Water Treatment for a bread factory in Malaysia
6000Liter/Hour RO Water Machine for Water Supply Factory
5000LPH RO System for a porridge factory
20T/H RO Water Treatment for a water plant
