Quick Details
-
Product name:
-
33-Channel RTMP/RTMPS Network Encoder
-
Application:
-
Live Streaming
-
Network video input protocol:
-
HTTP/RTSP/RTMP/RTP/UDP-TS/GB28181
-
Network video output protocol:
-
HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/O NVIF
-
Video encoding format:
-
H.264/H.265
-
Audio encoding format:
-
AAC/G.711/MP3/MP2/AC3
-
Maximum sum bit rate:
-
60Mbit
-
Maximum number of network video channels:
-
33 channels
-
upgrade:
-
Supports firmware upgrades
-
Service:
-
Provide SDK and API and CGI for Secondary Development
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
xstrive
-
Model Number:
-
XSWTVR-60M33DCH
-
Product name:
-
33-Channel RTMP/RTMPS Network Encoder
-
Application:
-
Live Streaming
-
Network video input protocol:
-
HTTP/RTSP/RTMP/RTP/UDP-TS/GB28181
-
Network video output protocol:
-
HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/O NVIF
-
Video encoding format:
-
H.264/H.265
-
Audio encoding format:
-
AAC/G.711/MP3/MP2/AC3
-
Maximum sum bit rate:
-
60Mbit
-
Maximum number of network video channels:
-
33 channels
-
upgrade:
-
Supports firmware upgrades
-
Service:
-
Provide SDK and API and CGI for Secondary Development
The test link:
http://1aa67038723389c3c80b54c08718aa64.cloud.xstrive.com:9502/user/login
Products Description

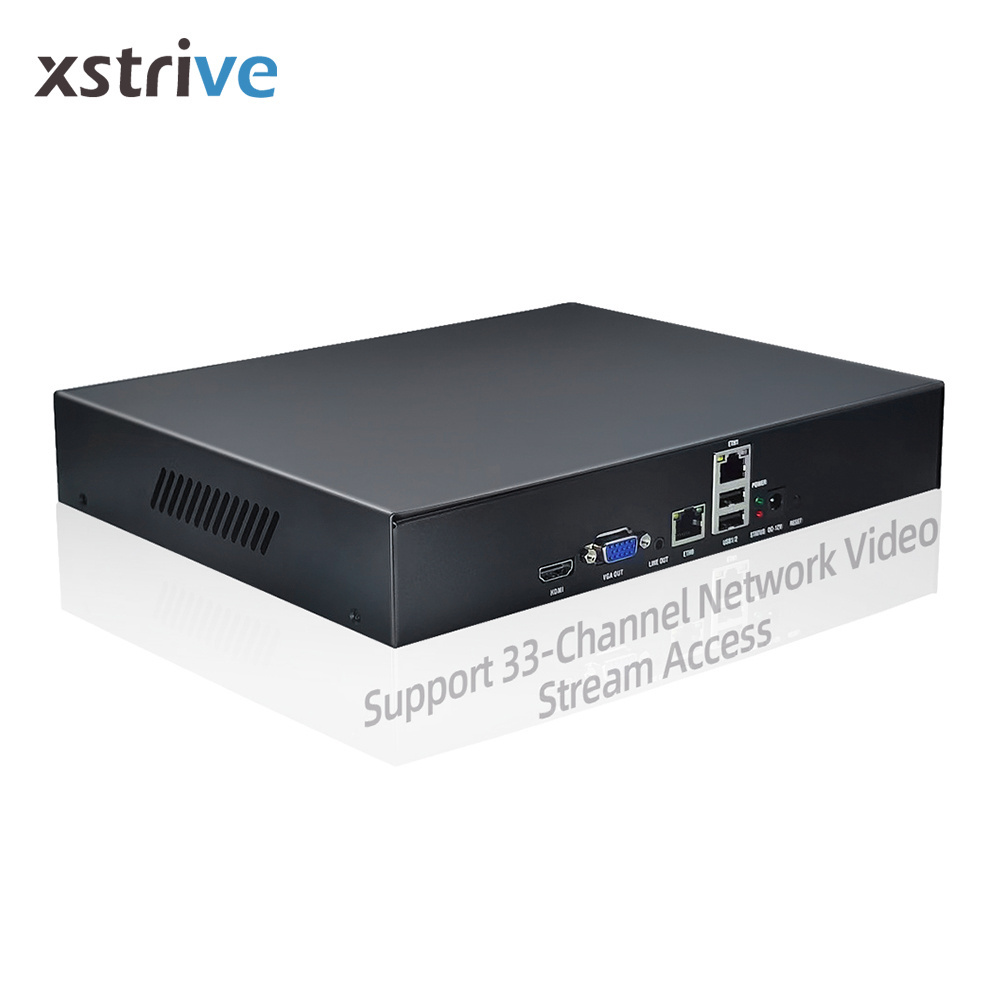

The xstrive 33-Channel dual network port RTMP/RTMPS encoder is a professional high-definition audio and video encoding product with powerful functions. It is a new generation of RTSP to RTMP transcoding and streaming all-in-one machine. It has the characteristics of integrating software and hardware design and H.264/H.265 code stream mixed encoding and transcoding.
It can not only be used as an NVR to work independently locally, but also be used as a streamer for real-time streaming of surveillance video streams, meeting the functions of cloud storage and real-time live viewing of surveillance video streams. Customers can build their own surveillance video cloud storage and surveillance live broadcast systems according to their own needs. It supports HTTP/RTSP/RTMP/RTP/UDP-TS network input protocol and HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF network output protocol.
It can not only be used as an NVR to work independently locally, but also be used as a streamer for real-time streaming of surveillance video streams, meeting the functions of cloud storage and real-time live viewing of surveillance video streams. Customers can build their own surveillance video cloud storage and surveillance live broadcast systems according to their own needs. It supports HTTP/RTSP/RTMP/RTP/UDP-TS network input protocol and HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF network output protocol.
1. Support 33-channel network video stream access.
2.
Have a good web control user interface, which supports web-based management and WAN remote control。You can use the device search tool to search directly for devices on the LAN
3.
The device has two gigabit network ports to separate internal and external networks. Push and stream Intranet videos to the public server
3.
Using hardware embedded system, the equipment can run stably and effectively for a long time, supporting 7d*24 hours work.
4.
Supports the video stream code push of various protocols, such as HTTP/RTSP/RTMP/RTMPS/RTP/UDP-TS, to be converted into
HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF protocol output.Supports independent 3.5MM audio input and output
HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF protocol output.Supports independent 3.5MM audio input and output
5.
Without the need to install any APP software and player, the IOS browser of any device including Android phone, iPhone, ipad and Macbook can obtain video streaming from the streaming media encoder at any time through the HLS protocol.
6. Encoding format: H265, H264, MP3 and AAC audio.
7. Transmission protocol: TCP, UDP, 1000M (RJ45 Internet port),
1000M (RJ45 Internet port)
.
8. Based on the RTMP protocol, any terminal device or decoder can directly get stream from software player such as VLC with the help of stream encoder.
9. Support firmware upgrade
10. Support Wowza,YouTube,Tik Tok, Facebook and other live broadcast platforms
|
Device model
|
XSWTVR-60M33DCH
|
|
Network video input protocol
|
HTTP/RTSP/RTMP/RTMPS/RTP/UDP-TS
|
|
Network video output protocol
|
HTTP-FLV/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/ONVIF
|
|
Input resolution
|
1080P\1080I\720P,1600x1200\1400x1050\1440x900\1280x1024\1280x960\1280x800\1024x768\800x600 etc.
|
|
Output Resolution
|
1920×1080/1280×720/1024×576/960×540/850×480/720×576/720×540/720×480/720×404/704×576/640×480/640×360 etc. Rate
|
|
Video formats
|
H264/AVC High/Main/Baseline Profile, H265/HEVC Main Profile MJPEG/JPEG Baseline
|
|
Ethernet
|
1000M internal network port, 1000M external network port (RJ45)
|
|
Input video encoding format
|
H.264/H.265 encoding
|
|
Output video encoding format
|
H.264/H.265 encoding
|
|
Input audio encoding format
|
AAC/G.711/MP3/MP2/AC3
|
|
Output audio encoding format
|
AAC
|
|
Maximum number of network video channels
|
33
|
|
Maximum total code rate
|
60Mbit (specifically, it will vary due to different protocols and encoding formats)
|
|
Video recording
|
Support 1 maximum 16TB hard drive
|
|
Control mode
|
Network-based management mode, automatically search IP addresses, support IP change, support remote network upgrade
|
|
Remote management
|
support remote modification of device parameters and remote playback of device recordings
|
|
Language
|
Chinese and English control interface
|
|
Operating temperature
|
-10 to 70 ℃
|
|
Relative Humidity
|
5% to 90%, non-condensing
|
|
Dimensions
|
27x21.6x4.5cm
|
|
Weight
|
1050g
|
|
Power adapter
|
Input: 100-240V 50/60Hz AC, Output: 12V DC 2A
|
Widely used in live broadcast, digital signage, multimedia display, hotel IPTV system, network video conference, network teaching, online TV, live broadcast of large event party.
XSTRIVE Technology Co., Ltd is committed to the development of software and hardware solutions for audio and video encoding and decoding and customer customization services. Founded in 2011, the company is a leading provider of professional audio and video solutions in China. It has a professional development team and is a national high-tech enterprise.
Products are sold to hundreds of laboratories and institutions in China. We can provide a complete set of solutions for video capture, video transmission, and video management. Also we provide high-quality products, which support OEM and ODM customization.
Shipping methods: FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly. We support PayPay, T/T, Western union,Veem and other payment methods.
FAQ
Q1,What is your shipping method?
A1, FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. Normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly
Q2, Can I get some samples?
A2, yes, of course, we are honored to provide you some samples for testing, but the samples are not free. In order to ensure the correct and safe purchase of the product, we will provide an online test
Q3, Can you provide OEM service according to our requirements? Is it free?
A3, with our professional and experienced design team, we can replace your company's logo on the chassis, software interface and carton to provide OEM service
Q4, How about your warranty
A4, 1 year warranty free repair or replacement. We provide online technical support through remote assistance, and repair services are provided by experienced after-sales specialists.
Q5, about delivery time
A5, our fast delivery time is within 3 days after payment. In case of special circumstances, we guarantee to arrange delivery within 7 days after receipt of payment. If you would like more information about delivery time, please contact us
Q6, about import duties
A6, in most countries, imported goods need to pay import tax, all our quotations and prices do not include import tax, as for the specific price, please consult the local customs, thank you for your understanding
