Quick Details
-
Warranty:
-
3 years, 36 mounths
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TKT
-
Car Model:
-
Tata Bus, City Bus, Coach
-
Key Words:
-
tata bus air conditioner
-
Voltage:
-
DC24V
-
Compressor type:
-
Bock Fx40 655k
-
Refrigerant:
-
R134A
-
Cooling Capacity:
-
37 KW / 126100 BTU/ 29770 Kcal/h
-
Structure:
-
Roof Top Model
-
Dimension of Roof Top Unit:
-
4725X1862X185MM
-
Dimension of power pack:
-
1300x650x695MM
-
Model Number:
-
TKT-380PB Roof Top Bus Air Conditioner
-
Certification:
-
ce
Quick Details
-
OE NO.:
-
OEM TKT-380PB Bus Air Conditioner
-
Reference NO.:
-
TKT
-
Size:
-
Roof Top Units: 4725X1862X185MM
-
Warranty:
-
3 years, 36 mounths
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TKT
-
Car Model:
-
Tata Bus, City Bus, Coach
-
Key Words:
-
tata bus air conditioner
-
Voltage:
-
DC24V
-
Compressor type:
-
Bock Fx40 655k
-
Refrigerant:
-
R134A
-
Cooling Capacity:
-
37 KW / 126100 BTU/ 29770 Kcal/h
-
Structure:
-
Roof Top Model
-
Dimension of Roof Top Unit:
-
4725X1862X185MM
-
Dimension of power pack:
-
1300x650x695MM
-
Model Number:
-
TKT-380PB Roof Top Bus Air Conditioner
-
Certification:
-
ce
DC 37KW Diesel Engine 12V Roof TOP tata bus air conditioner
DC 37KW Diesel Engine 12V Roof TOP tata bus air conditioner
1 )rooftop unit air condition for bus BRIEF INTRODUCTION:
TKT-380PB is designed for 11-12.8M City Bus, Coach and Intercity Bus and Shuttle
Bus (Ambient Temperature 55 ℃). It is powered by Sub Diesel Engine, you can feel
he cool air without influence the performance of bus in hot summer. It is famous in
Mid East, South America, Europe, South Africa and Asia. It has great advantage as follows:
*
High Cooling Capacity & Reliable Performance Suitable for Most Places in the World;
*Special Design for Mid East Market;
*Bigger Silencer to Keep Low Noise
*Digital Control Board to Show Bus A/C Running Time for Engine Maintenance;
*Stream Line Design to Apply All Kinds of Buses;
*Independent Diesel Engine for front engine bus, Not Influence the Speed of Bus;
*ISO 9001, CE & TS16949 Certification;
*Cheap Price with High Quality;
*36 Months Warranty Time After Delivery;
2 )rooftop unit air condition for bus TECHNICAL DATA:
|
Product Name |
rooftop unit air condition for bus |
|
|
Model No. |
TKT-380PB |
|
|
Structure |
Roof Top Model |
|
|
Cooling Capacity |
37 KW / 126100 BTU/ 29770 Kcal/h |
|
|
Engine |
Diesel, ISUZU4JB1, 2.71L |
|
|
Power Pack Dimension |
1300X650X695MM (LxWxH) |
|
|
Power Pack Weight |
410KG |
|
|
Compressor |
Bock FKX40 655CC |
|
|
Expansion Valve |
Danfoss, 9.6 T |
|
|
Voltage |
DC24V |
|
|
Power Consumption |
95A |
|
|
Condenser |
QTY of Condenser Fan |
5 PCs |
|
Condenser Coil Type |
Copper Tube & Aluminum Fin |
|
|
Condenser Air Flow |
11550M3/H |
|
|
Evaporator |
QTY of Evaporator Blower |
8 PCs |
|
Evaporator Coil Type |
Copper Tube & Aluminum Fin |
|
|
Evaporator Air Flow |
9020M3/H |
|
|
Alternator |
Bosh, 150A Battery less |
|
|
Refrigerant |
R134A, 9.8KG |
|
|
Dimension of Roof Top Unit |
4670X1830X210MM |
|
|
Weight for Roof Top |
190KG |
|
|
Application |
11-12.8M City Bus, Coach and Intercity Bus(Ambient Temperature 55 ℃) |
|
3) rooftop unit air condition for bus With Details

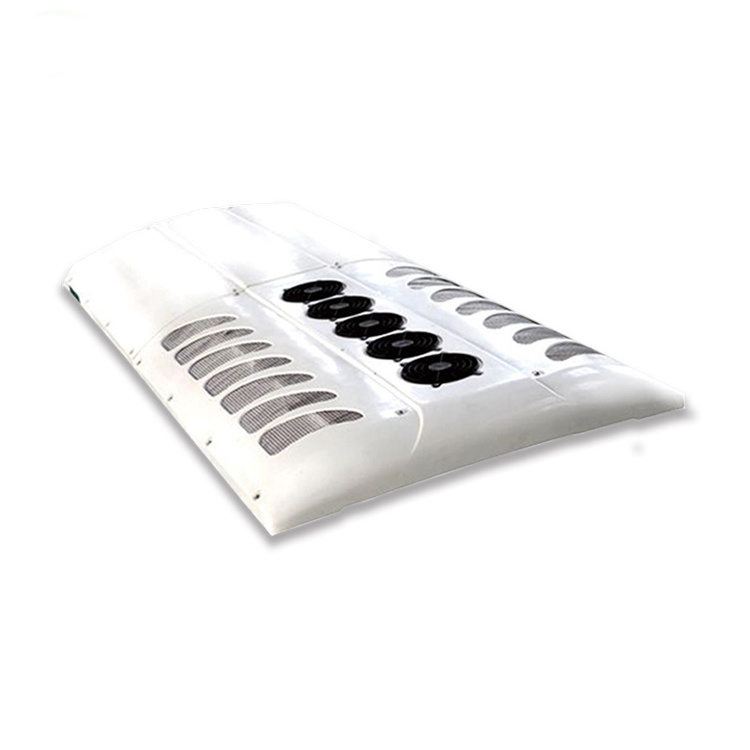

Complete units:
Evaporator unit:
Condenser unit:
Sub-engine/ power pack units:
Finished installation picture:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply your inquiry within 24 hours.
4. After shipping, we will track the products for you at once every two days, until you get the products. After you test them, a valuable feedback would be appreciated. Please contact us if any further information you need, we will do our best to cooperate with you until all problems are get resolved.
