Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JC
-
Dimension(L*W*H):
-
510*460*565mm
-
Weight:
-
43.1
-
Rated power/speed:
-
3600
-
Product name:
-

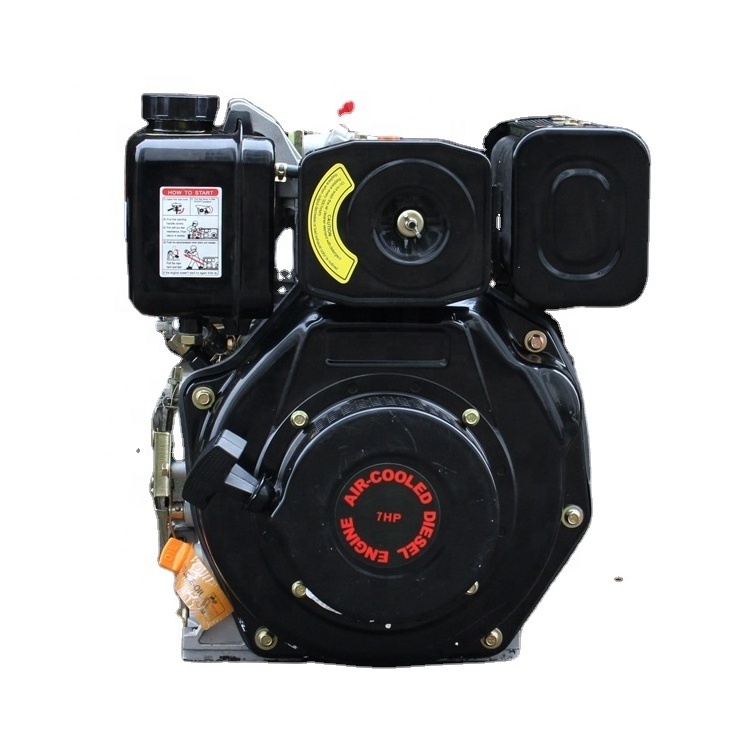

Taizhou JC10HP 186F diesel Engine Single Cylinder 4 Stroke
-
Engine Model:
-
JCD186F
-
Bore x Stroke (mm):
-
86x72
-
Compression Ratio:
-
19:1
-
Fuel Type:
-
0#, -10# diesel
-
Fuel Tank Capacity (Liter):
-
5.5
-
Lub. oil Type:
-
SAE10W30(Above CD grade)
-
Lub Oil Capacity (Liter):
-
1.65
-
Net weight (Kgs):
-
Recoil start: 48Kg ; With electric starter: 53Kg
-
20ft/40hq container loading qty:
-
300/740sets
Quick Details
-
Displacement:
-
418cc
-
Emission Standard:
-
Euro 2
-
Power:
-
10HP, 4.8 Kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JC
-
Dimension(L*W*H):
-
510*460*565mm
-
Weight:
-
43.1
-
Rated power/speed:
-
3600
-
Product name:
-
Taizhou JC10HP 186F diesel Engine Single Cylinder 4 Stroke
-
Engine Model:
-
JCD186F
-
Bore x Stroke (mm):
-
86x72
-
Compression Ratio:
-
19:1
-
Fuel Type:
-
0#, -10# diesel
-
Fuel Tank Capacity (Liter):
-
5.5
-
Lub. oil Type:
-
SAE10W30(Above CD grade)
-
Lub Oil Capacity (Liter):
-
1.65
-
Net weight (Kgs):
-
Recoil start: 48Kg ; With electric starter: 53Kg
-
20ft/40hq container loading qty:
-
300/740sets
Taizhou JC10HP 186F diesel Engine Single Cylinder 4 Stroke
Product Description
Specification
|
item
|
Taizhou JC10HP 186F diesel Engine Single Cylinder 4 Stroke
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts
|
|
Condition
|
New
|
|
Stroke
|
4 Stroke
|
|
Cylinder
|
Single Cylinder
|
|
Cold Style
|
Air-cooled
|
|
Start
|
Kick Start
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
JC
|
|
Dimension(L*W*H)
|
510*460*565mm
|
|
Weight
|
43.1KGS
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Displacement
|
418cc
|
|
Emission Standard
|
Euro 2
|
|
Rated power/speed
|
3600
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Engine
|
|
Key Selling Points
|
Easy to Operate
|
|
Power
|
10HP, 4.8 Kw
|
|
Product name
|
186F diesel Engine Single Cylinder 4 Stroke Diesel Engine 10HP
|
|
Engine Model
|
JCD186F
|
|
Bore x Stroke (mm)
|
86x72
|
|
Compression Ratio
|
19:1
|
|
Fuel Type
|
0#, -10# diesel
|
|
Fuel Tank Capacity (Liter)
|
5.5
|
|
Lub. oil Type
|
SAE10W30(Above CD grade)
|
|
Lub Oil Capacity (Liter)
|
1.65
|
|
20ft/40hq container loading qty
|
300/740sets
|
Packing & Delivery
Taizhou JC10HP 186F diesel Engine Single Cylinder 4 Stroke
Strong color box or 5 layers kraft-paper box
