Quick Details
-
Spindle Taper:
-
MT3 or R8
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMT
-
Model Number:
-
ZAY7032G
-
Table Travel (mm):
-
175/500mm
-
Year:
-
brand new
-
Voltage:
-
customer apponit
-
Dimension(L*W*H):
-
770X880X1160mm
-
Weight (KG):
-
370
-
Marketing Type:
-
Hot Product 2023
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Free spare parts
-
Use:
-
metal cutting
-
Logo printing:
-
AVAILABLE
-
Spindle taper:
-
MT3 R8
-
Machine color:
-
blue and white
-
Certification:
-
CE
Quick Details
-
Table Travel (X) (mm):
-
500 mm
-
Table Travel (Y) (mm):
-
170 mm
-
Table Travel (Z) (mm):
-
130 mm
-
Spindle Taper:
-
MT3 or R8
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMT
-
Model Number:
-
ZAY7032G
-
Table Travel (mm):
-
175/500mm
-
Year:
-
brand new
-
Voltage:
-
customer apponit
-
Dimension(L*W*H):
-
770X880X1160mm
-
Weight (KG):
-
370
-
Marketing Type:
-
Hot Product 2023
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Free spare parts
-
Use:
-
metal cutting
-
Logo printing:
-
AVAILABLE
-
Spindle taper:
-
MT3 R8
-
Machine color:
-
blue and white
-
Certification:
-
CE
Features:

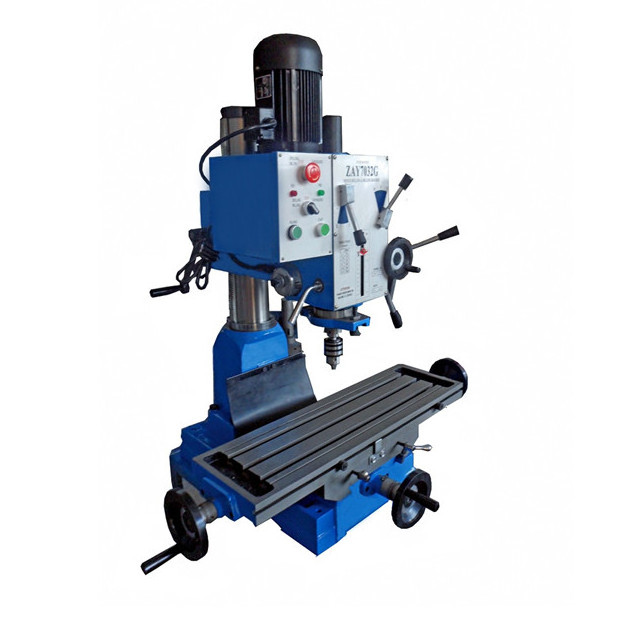

1) ZAY7032G Milling drilling,tapping boring, reaming.
2) Head swivels ±90° verticaly.
3) Spindle micro feed precisely.
4) Adjustable gibs on table precision.
5) Accurate position, strong rigidity,powerful cutting.
6) Gear-driven type and round column.
|
Model
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
||
|
Drilling capacity
|
Φ32mm(1-1/4")
|
Φ40mm(1-5/8")
|
Φ45mm(1-3/4")
|
||
|
Face milling capacity
|
Φ63mm(2-1/2")
|
Φ80mm(3-1/8")
|
Φ80mm(3-1/8")
|
||
|
End milling capacity
|
Φ20mm(3/4")
|
Φ32mm(1-1/4")
|
Φ32mm(1-1/4")
|
||
|
Distance from spindle nose to table
|
440mm(17-1/4")(optional 670mm)
|
|
|
||
|
Min.distance from spindle axis to column
|
272.5mm(10-3/4")
|
|
|
||
|
Spindle travel
|
130mm(5-1/8")
|
|
|
||
|
Spindle taper
|
MT3 or R8
|
MT4 or R8
|
MT4 or R8
|
||
|
Step of spindle speed
|
6 steps
|
|
|
||
|
Range of spindle speed 50Hz
|
80-1250 rpm
|
|
|
||
|
60Hz
|
95-1500 rpm
|
|
|
||
|
Swivel angle of headstock horizontally
|
360°
|
|
|
||
|
perpendicularly
|
±90°
|
|
|
||
|
Table size
|
800×240mm(31-1/2"×9-7/16")
|
|
|
||
|
Forward and backward travel of table
|
175mm(6-7/8")
|
|
|
||
|
Left and right travel of table
|
500mm(20")
|
|
|
||
|
Motor power
|
0.75KW
|
1.1KW
|
1.5KW
|
||
|
Net weight/gross weight
|
315kg/365kg
|
318kg/368kg
|
318kg/368kg
|
||
|
Packing size
|
770×880×1160mm
|
|
|
||
|
Loading amount/20" container
|
36pcs
|
|
|
||
Stand accessories :
1) Drill chuck and arbor
2) Draw bar
3) Allen wrenches
4) Wedge
5) Toolbox with tools
