Our auger drive can be mounted to excavator, skid steer loader, backhoe loader, crane, telescopic handler, wheel loader and so on.Fast quick attach from your bucket or breaker to a drilling machine. Drill large diameter holes in most ground conditions including frozen ground and rock. Maximum performance with minimal wear and tear. It’s a high-performance attachment with a great return on investment.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
150
-
Working Pressure:
-
205Bar
-
Max. Torque:
-
1870N.m
-
Application:
-
Post Hole Digging Machine
-
Type:
-
Hydraulic
-
Teeth Type:
-
Tungsten/Rock/Sharp Teeth
-
Hose:
-
1/2 Inch
-
Pin hitch:
-
Single/Double/Skid Steer Pin Hitch
-
Certification:
-
ISO9001
-
Advantages:
-
High Performance
-
Suitable:
-
excavator/skid steer loader/crane/tractor/backhoe loader
-
Color:
-
Customer's Request
-
Output Shaft:
-
65Rd/57Sq/2'' hex or others
Quick Details
-
Suitable Excavator(ton):
-
3-35 ton
-
Place of Origin:
-
Guangdong, China
-
Condition:
-
Customized
-
Weight:
-
150
-
Working Pressure:
-
205Bar
-
Max. Torque:
-
1870N.m
-
Application:
-
Post Hole Digging Machine
-
Type:
-
Hydraulic
-
Teeth Type:
-
Tungsten/Rock/Sharp Teeth
-
Hose:
-
1/2 Inch
-
Pin hitch:
-
Single/Double/Skid Steer Pin Hitch
-
Certification:
-
ISO9001
-
Advantages:
-
High Performance
-
Suitable:
-
excavator/skid steer loader/crane/tractor/backhoe loader
-
Color:
-
Customer's Request
-
Output Shaft:
-
65Rd/57Sq/2'' hex or others

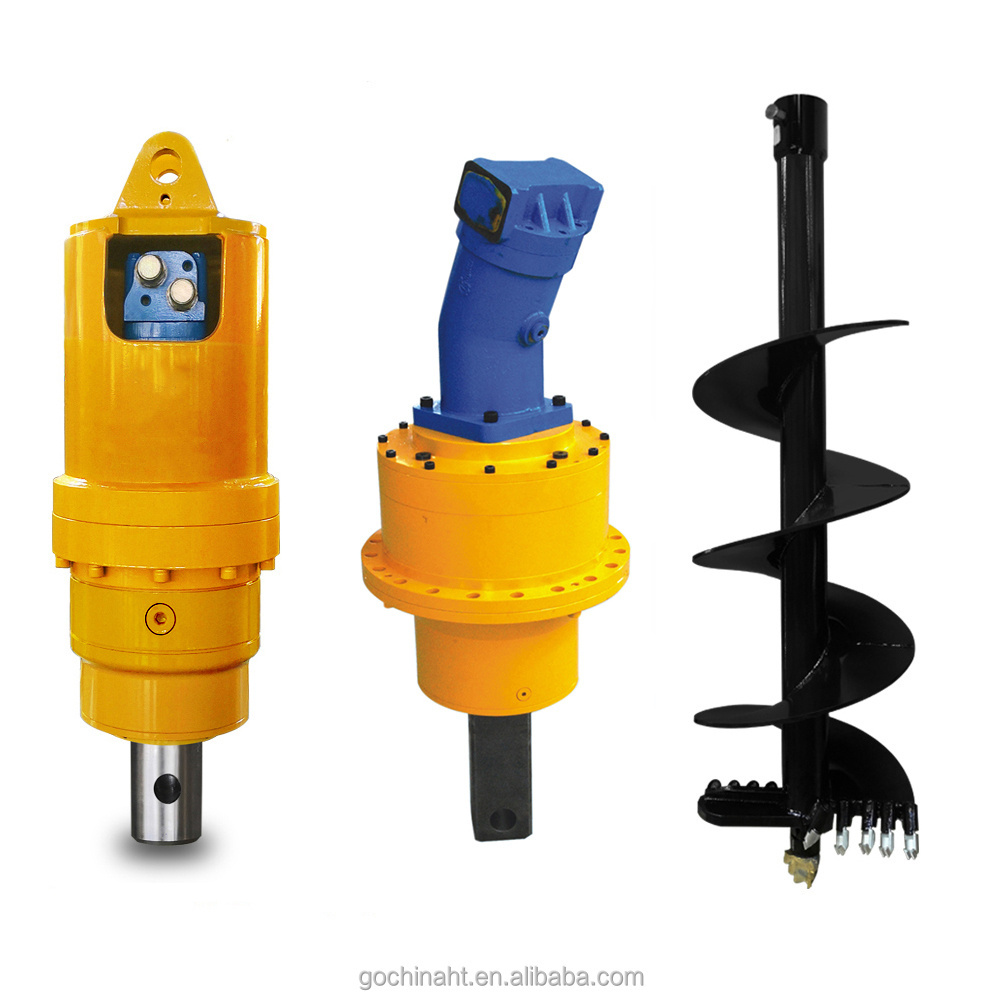

Excavator earth auger drive
We offer a complete set for mini and heavy duty excavator, no other accessories required. Also, this earth auger unit can be easily mounted to your excavator.
|
Model
|
HT80
|
HT150
|
HT200
|
HT300
|
|
Applicable Machine (T)
|
6-8
|
10-15
|
15-22
|
25-35
|
|
Drilling Diameter Range (mm)
|
150-1200
|
150-1200
|
150-1500
|
300-1500
|
|
Torque Range (N/m)
|
2000-8000
|
5000-15000
|
16000-24000
|
10000-30000
|
|
Oil Pressure Range (Bar)
|
80-240
|
80-240
|
160-240
|
160-240
|
|
Working oil flow (Lpm)
|
70-150
|
80-170
|
160-240
|
160-240
|
|
Speed Range (rmp)
|
33-70
|
20-43
|
12-26
|
12-26
|
|
Unit Weight (kg)
|
120
|
175
|
270
|
300
|
|
Output Shaft (Square)
|
75mm
|
75mm
|
75mm
|
75mm
|
Hydraulic Auger Drives
The 2-Speed High Flow auger drives are built for variable conditions that require a balance between torque and speed to be maximized throughout the project. The auger drive shifts-on-demand when high torque/low rpm conditions exist and returns to low torque/high rpm when digging eases up.
