1. CE, ISO Certification.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
according to your local voltage
-
Dimension(L*W*H):
-
1200*2076*3300
-
Weight (T):
-
4 T
-
Model Number:
-
Y27-100T
-
Motor Power (kw):
-
15 kw
-
Weight:
-
different weight
-
Color:
-
Customizable
-
Name:
-
stainless steel pot production line
-
Keyword:
-
production line
-
Application:
-
hydraulic press
-
Usage:
-
Pressing Metal Products
-
Item:
-
Four Column Press
-
Brand:
-
KLT
-
Model:
-
press Machine
-
Power(W):
-
different power
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
200
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
according to your local voltage
-
Dimension(L*W*H):
-
1200*2076*3300
-
Weight (T):
-
4 T
-
Model Number:
-
Y27-100T
-
Motor Power (kw):
-
15 kw
-
Weight:
-
different weight
-
Color:
-
Customizable
-
Name:
-
stainless steel pot production line
-
Keyword:
-
production line
-
Application:
-
hydraulic press
-
Usage:
-
Pressing Metal Products
-
Item:
-
Four Column Press
-
Brand:
-
KLT
-
Model:
-
press Machine
-
Power(W):
-
different power
Product Description
|

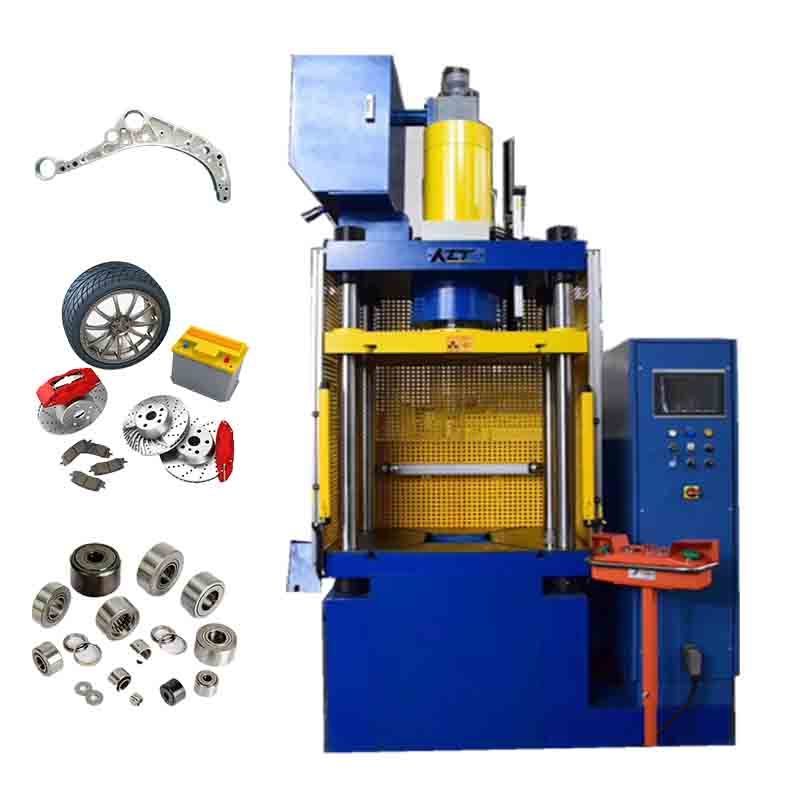

Y27 series stretch forming machine
|
|
Optional:
|
|
#Optoelectronic protective device
|
|
#Moving table
|
|
#Floating guide-way and rolling bracket for die exchange
|
|
#Blanking buffer device
|
|
#Quick die clamping mechanism
|
|
#Industrial touching screen monitor
|
|
#Stroke,pressure,speed digital control device
|
|
#Water cooler device Displacement sensor
|
|
#Blank holder slide,hydraulic cushion corners respectively regulating device(stretching asymmetric parts)
|
Characteristics:
1.3-beam & 4-column compact structure
2.Cartridge valve control, to improve the efficiency
3.Preset pressure forming and preset stroke
4.High efficiency of cooling device, suitable for continuous production
2.Cartridge valve control, to improve the efficiency
3.Preset pressure forming and preset stroke
4.High efficiency of cooling device, suitable for continuous production
Scope Of Application
Y27 series stretch forming machine, suitable for stretching and forming of head parts; applicable products: pots, sinks, LPG tanks, etc.
POT
SINK
lpg cylinder
Size Information
|
Item
|
Unit
|
100T
|
160T
|
200T
|
315T
|
400T
|
630T
|
1000T
|
|
Nominal Force
|
KN
|
1000
|
1600
|
2000
|
3150
|
4000
|
6300
|
10000
|
|
Slide Stroke
|
mm
|
510
|
560
|
710
|
800
|
800
|
1200
|
1000
|
|
Opening Height
|
mm
|
800
|
900
|
1120
|
1200
|
1200
|
1600
|
1800
|
|
Cushion Force
|
KN
|
400
|
630
|
630
|
1250
|
1250
|
1000*2
|
2000*2
|
|
Cushion Stroke
|
mm
|
200
|
200
|
250
|
300
|
300
|
350
|
400
|
|
Table size L.R
|
mm
|
690
|
1000
|
1200
|
1500
|
1750
|
2200
|
4500
|
|
Table size F.B.
|
mm
|
630
|
800
|
1000
|
1200
|
1250
|
1600
|
2600
|
|
Motor Power
|
KW
|
15
|
15
|
22
|
37
|
2*22
|
2*37
|
3*37
|
|
Total Weight(Approx)
|
T
|
7
|
10.3
|
16.2
|
25
|
31
|
80
|
100
|
Company Introduction
We can supply
Our service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Packing & Delivery
FAQ
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
