Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALLAMN
-
Model Number:
-
BHW
-
Product name:
-

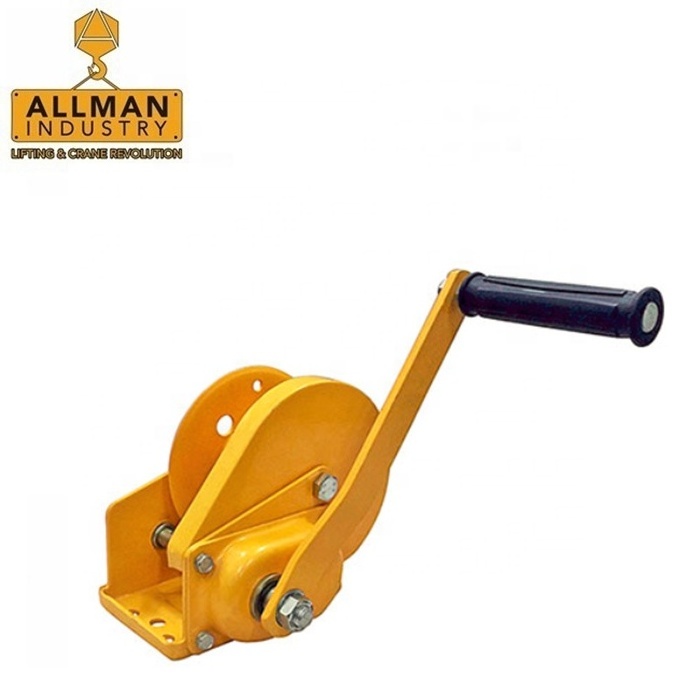

2600Lbs hand winch
-
Brake:
-
Automatic Brake
-
Color:
-
Orange , Green or as request
-
Material:
-
Steel Carbon
-
Drive gear:
-
spur gear
-
Wire rope diameter:
-
8mm
-
Package:
-
carton
-
Wire rope length:
-
5m/10m
Quick Details
-
Power Source:
-
Hand
-
Application:
-
Boat, Marine boat pulling and loading
-
Capacity:
-
2600lbs, 800/1200/1800/2600lbs
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALLAMN
-
Model Number:
-
BHW
-
Product name:
-
2600Lbs hand winch
-
Brake:
-
Automatic Brake
-
Color:
-
Orange , Green or as request
-
Material:
-
Steel Carbon
-
Drive gear:
-
spur gear
-
Wire rope diameter:
-
8mm
-
Package:
-
carton
-
Wire rope length:
-
5m/10m
Features
Lifting capacity - 180, 270, 410, and 600kg, manual wire rope winch with spur gear drive.
1. Winch housing and rope drum from robust steel plate.
2. Rope drum on bearings.
3. Spur gear drive for optimal efficiency.
4. Compact , light weight and durable design.
5. Automatic load pressure brakes for safe holding and lowering of the load.
1. Winch housing and rope drum from robust steel plate.
2. Rope drum on bearings.
3. Spur gear drive for optimal efficiency.
4. Compact , light weight and durable design.
5. Automatic load pressure brakes for safe holding and lowering of the load.
Technical Paramenters
|
Model
|
BHW-800
|
BHW-1200
|
BHW-1800
|
BHW-2600
|
BHW-1200S
|
BHW-2600S
|
|
Lifting Capacity 1st rope layer(kg)
|
180
|
270
|
410
|
600
|
270
|
600
|
|
Pulling Capacity 1st rope layer(kg)
|
370
|
545
|
820
|
1200
|
545
|
1200
|
|
Required Efforts 1st rope layer(kg)
|
14.5
|
15
|
22
|
19
|
15
|
19
|
|
Drum Diameter(mm)
|
21
|
48
|
60
|
75
|
48
|
75
|
|
Gear Ratio
|
3.7:1
|
4.1:1
|
5:1
|
10:1
|
4.1:1
|
10:1
|
|
Rope Diameter(mm)
|
Φ4
|
Φ5
|
Φ7
|
Φ8
|
Φ5
|
Φ8
|
|
Total Rope Capacity(m)
|
36
|
23
|
24
|
18
|
23
|
18
|
|
Net Weight(kg)
|
3
|
3.7
|
8.1
|
10.3
|
3.3
|
10.3
|
