Quick Details
-
Model Number:
-
HL-600H-48B
-
Output Frequency:
-
47~63Hz
-
Product:
-
Waterproof electronic led driver
-
IP Rate:
-
IP67
-
Efficiency:
-
96%(230VAC) / 96%(277VAC)
-
Voltage Adj.Range:
-
35.7 ~ 44.1V
-
Shell:
-
Metal housing
-
Warranty:
-
7 Years
-
Working Temp.:
-
-40~ +90°C
-
Dimension:
-
280*144*48.5mm (L*W*H)
-
Protections:
-
Short circuit /Over current /Over voltage /Over temperature
Quick Details
-
Warranty(Year):
-
7years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mean Well
-
Model Number:
-
HL-600H-48B
-
Output Frequency:
-
47~63Hz
-
Product:
-
Waterproof electronic led driver
-
IP Rate:
-
IP67
-
Efficiency:
-
96%(230VAC) / 96%(277VAC)
-
Voltage Adj.Range:
-
35.7 ~ 44.1V
-
Shell:
-
Metal housing
-
Warranty:
-
7 Years
-
Working Temp.:
-
-40~ +90°C
-
Dimension:
-
280*144*48.5mm (L*W*H)
-
Protections:
-
Short circuit /Over current /Over voltage /Over temperature

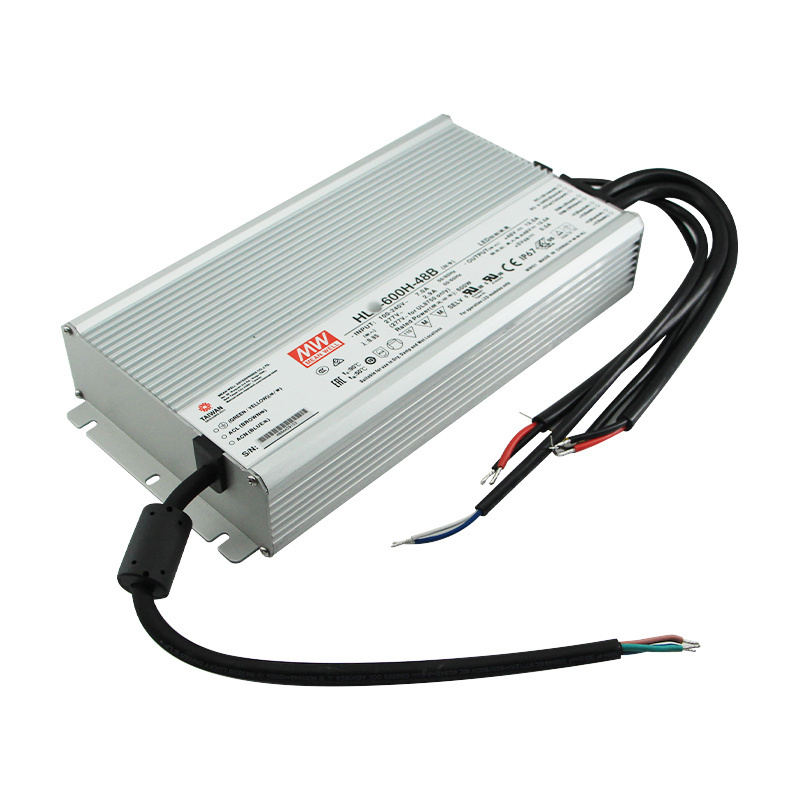

Meanwell 600W 42V LED Power Supply 42V 0-10VDC dimming 7 years warranty HL-600H-48B LED Driver
Features:
- Meanwell External Led Driver
- Constant Voltage + Constant Current mode output
- Universal AC input / Full range(up tp 305VAC)
- Metal housing with class Ⅰ design
- Standby power consumption <0.5W at remote off
- Protections: Short circuit /Over current /Over voltage /Over temperature
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming(dim-to-off)
- Typical lifetime > 62000 hours
- 7 years warranty
- LED high-bay lighting
- Parking space lighting
- LED fishing lighting
- LED greenhouse lighting
- Type "HL" for use in Class Ⅰ, Division 2 hazardous (Clssified) location.
| A: | IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer. |
| B: | IP67 rated. Constant current level adjustable through output cable with 1~10VDC or 10V PWM signal or resistance. |
| MODEL | HL-600H-36 | HL-600H-42 | HL-600H-48 | HL-600H-54 | |
| OUTPUT | DC VOLTAGE | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 16.7A | 14.3A | 12.5A | 11.2A | |
| RATED POWER | 601.2W | 600.6W | 600W | 604.8W | |
| RIPPLE & NOISE (max.) | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via built-in potentionmeter) | ||||
| 30.6 ~ 37.8V | 35.7 ~ 44.1V | 40.8 ~ 50.4V | 45.9 ~ 56.7V | ||
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via built-in potentionmeter) | ||||
| 8.3 ~ 16.7A | 7.1 ~ 14.3A | 6.2 ~ 12.5A | 5.6 ~ 11.2A | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms,80ms/115VAC, 230VAC | ||||
| HOLD UP TIME (Typ.) | 15ms/115VAC, 230VAC | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | ||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading≥50% at 115VAC/230VAC input and output loading≥75% at 277VAC input | ||||
| EFFICIENCY (Typ.)(230Vac) | 95.50% | 96.00% | 96.00% | 96.00% | |
| EFFICIENCY (Typ.)(277Vac) | 95.50% | 96.00% | 96.00% | 96.00% | |
| AC CURRENT | 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC; Per NAME 410 | ||||
|
MAX. No. of PSUs on 16A
CIRCUIT BREAKER |
1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||
| Constant current limiting, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 39.5 ~ 43.5V | 46 ~ 50V | 52.5 ~ 56.5V | 59 ~ 63V | |
| Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||
| FUNCTION | REMOTE ON/OFF CONTROL | Power on: "High">2~5V or Open circuit Power off : "Low"<0~0.5V or Short circuit | |||
| 5V STANDBY | 5VSB : 5V @0.5A ; tolerance±5%, ripple : 100mVp-p(max.) | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +90°C (Refer to "OUTPUT LOAD vs TEMPERATURE"section) | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+80°C,10~95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 55°C ) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y,Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL60950-1, U8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, IP65 or IP67, J61347-1, J61347-2-13 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | ||||
| EMC EMISSION | Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C(≥50% load) ; EN61000-3-3 | ||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A | ||||
| OTHERS | MTBF | 76.9K hrs min. MIL-HDBK-217F (25°C) | |||
| DIMENSION | 280*144*48.5mm (L*W*H) | ||||
| PACKING | 3.9Kg; 4pcs/16.6Kg/0.9CUFT | ||||
Mechanical Specification:
Meanwell 600W 42V LED Power Supply 42V 0-10VDC dimming 7 years warranty HL-600H-42B LED Driver
