Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY014
-
Torque:
-
Customized
-
Color:
-
Black or Grey white
-
Function:
-
Driving
-
Power:
-
DC
-
Protect Class:
-
IP54
-
Shape:
-
Linear
-
Stroke:
-
50-1000mm
-
Load capacity:
-
6000N
-
Limit switches:
-
inner
Quick Details
-
Speed(RPM):
-
customized
-
Continuous Current(A):
-
customized
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY014
-
Torque:
-
Customized
-
Color:
-
Black or Grey white
-
Function:
-
Driving
-
Power:
-
DC
-
Protect Class:
-
IP54
-
Shape:
-
Linear
-
Stroke:
-
50-1000mm
-
Load capacity:
-
6000N
-
Limit switches:
-
inner
Features :
1) High quality
2) Low noise
3) Competitive price
4) Excellent after-sale service
Specifications:
1) 24VDC permanent magnet motor
2) Thrust up to 6000N in push , and up to 4000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium outer tube / inner tube Ø32mm / Ø24mm
6) Aluminium or zinc alloy back fixture
7) Stroke : 50~500 option
8) Min Installation Dimension : S +175mm
9) Standard protection class
10) Noise level < 50 db
11) Warranty : Two years
12) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use
|

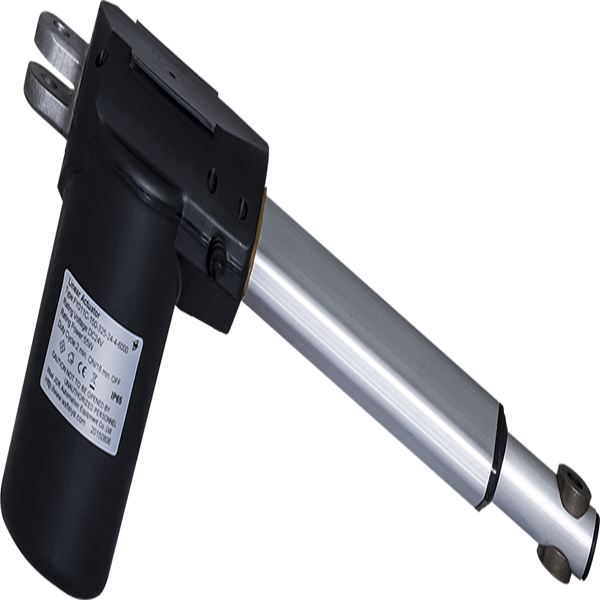

Name: |
Linear Actuator |
|
Model: |
FY011 |
|
Usage: |
Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use |
|
Input Voltage: |
12v or 24v DC |
|
Load Capacity: |
750N, 1500N, 4000N, 6000N |
|
Free Load Speed: |
30mm/s, 18mm/s, 8mm/s, 4mm/s |
|
Standard Stroke: |
50 mm --- 1000mm (Optional) |
|
Installation Dimension: |
S + 175mm |
|
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
|
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
|
Work Temp.: |
-26 to 65 centigrade |
|
Protection Grade: |
IP43, IP54, IP65 |
|
Certificate: |
CE / EMC + LVD, RoHS |
|
Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
|
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
|
|
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
|
|
Control 4 Linear Actuators: FYK012-4, FYK016-4 |
|
|
Control 5 Linear Actuators: FYK012-5, FYK016-5 |
|
|
Control 6 Linear Actuators: FYK016-6 |
|
|
Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of Our Electric linear actuator :
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle: 10%
Ambient temperature -26°C to +65°C
Standard protection class: IP 43
Built-in integral limit switch , not adjustable after leaving factory
Low noise design , dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR
QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
