Quick Details
-
Size:
-
Prismatic
-
Nominal Voltage:
-
1.2V
-
Description:
-
http://www.orientpower.asia/product/detail/id/169
-
Screw Thread of Terminal poles:
-
M10
-
Norminal voltage:
-
1.2V
-
Floating charge voltage:
-
1.45-1.5V/cell
-
operating temperature:
-
-40 to +60 degree C
-
operation life:
-
20 years
-
NIFE battery capacity range:
-
10--1200Ah
-
Type:
-
Nickel iron/NiFe
Quick Details
-
Brand Name:
-
Orient Power/zhuhai OTE
-
Model Number:
-
NF-70S
-
Place of Origin:
-
Guangdong, China
-
Size:
-
Prismatic
-
Nominal Voltage:
-
1.2V
-
Description:
-
http://www.orientpower.asia/product/detail/id/169
-
Screw Thread of Terminal poles:
-
M10
-
Norminal voltage:
-
1.2V
-
Floating charge voltage:
-
1.45-1.5V/cell
-
operating temperature:
-
-40 to +60 degree C
-
operation life:
-
20 years
-
NIFE battery capacity range:
-
10--1200Ah
-
Type:
-
Nickel iron/NiFe

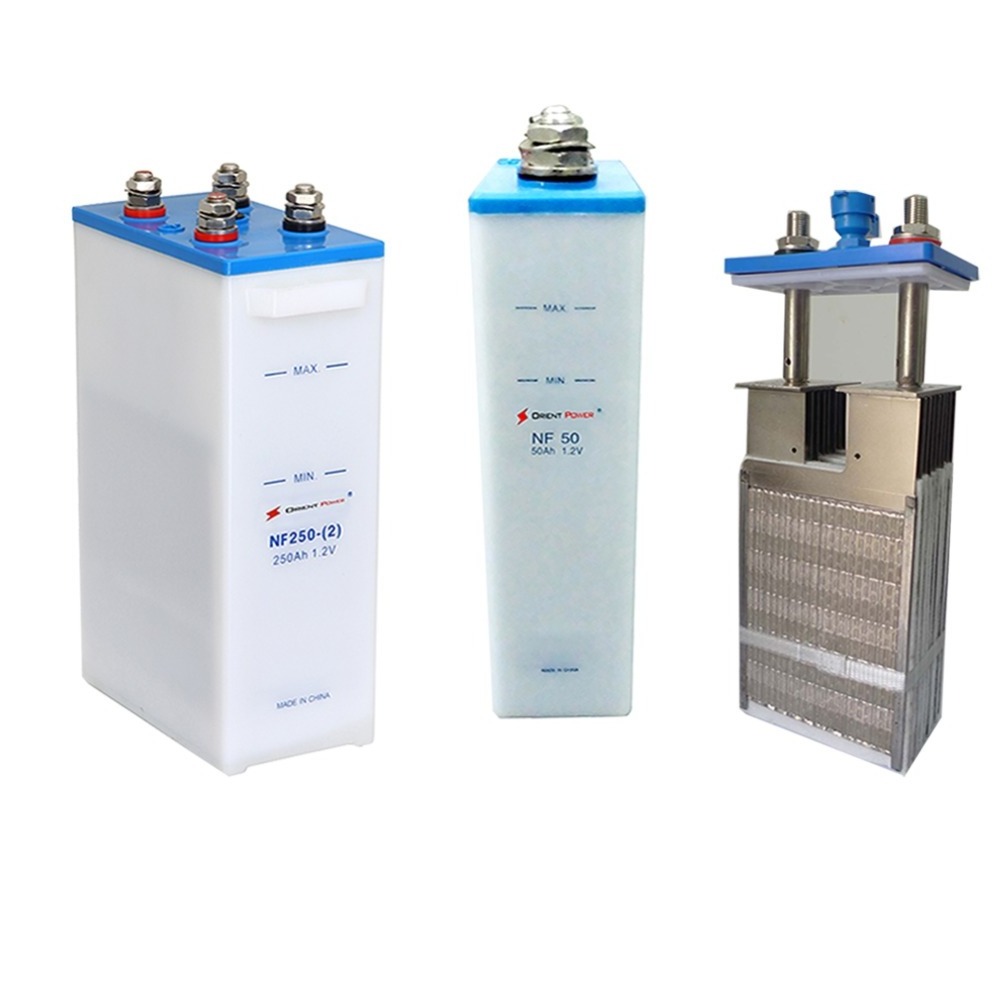

Military quality standard long life NiFe Solar storage battery 1.2V70Ah
Voltage: 1.2V
Capacity: 70Ah
| TYPE | MAX. DIM(mm) | Max. weightv(not filled) (kg) | Max.weight (filled) Kg | Casing Material | Terminal | ||
|---|---|---|---|---|---|---|---|
| Length (L) | Width (W) | Hight (H) | |||||
| OPNF70 | 80 | 141 | 370 | 3.8 | 5.7 | PP/MBS | M10X1 |
Characteristic
- Excellent charging efficiency and smooth discharge voltage
- High reliability without sudden death
- Ability to withstand ultra-high and ultra-low environmental temperatures
- Withstand physical and mechanical abuses
- Exceptionally long & reliable service life
- Pollution-free,total green energy
- low Self-discharging
- No emission of corrosive gases, Safe from flame & explosion
- Pollution-free and excellent mechanical strength
- Convenient for installation and low maintenance
- Comply with SGS and GOST standard.
- Availability to design and manufacture other model according to user's requirements
NF series solar NiFe batteries are suitable for all solar photovoltaic power systems . They are widely used as storage power supply for solar photovoltaic systems, offshore oil platforms, railway transportation, crossing guards lighting, signaling, isolated BTS station, cathodic protection for pipelines and radio navigation systems .
NF series solar Ni-Fe batteries can last longer than 20 years if they are operated with the commercial and residential buildings recommended practice.
Benefits of NF series NiFe Battery:
1. Environmental friendliness(no lead, cadmium, or acid and is highly recyclable).
2. Long cycling life( Maximum service life can reach 20 years or more, if operated correctly).
3. Able to withstand abuse and wide temperature variation.
4. Resistant to withstand failure of electronic control systems.
5. Higher charge ratio and utilization ratio.
6. Low transportation and installation cost.
7. Low maintenance.
NIFE battery for Photovoltaic Applications:
Effect of temperature on performance:
Cycling:
Effect of Temperature on Lifetime(compare with lead acid battery):
