Quick Details
-
Production Capacity:
-
300-500kg/h
-
Dimension(L*W*H):
-
1440*630*970mm
-
Power:
-
6.5/8kW
-
Voltage:
-
380V
-
Weight (KG):
-
450
-
Hopper volume:
-
110L
-
Shell, frame, motor base:
-
SUS304 stainless steel
-
Motor:
-
Siemens motor
-
Control appliances:
-
Schneider Electric
-
Bearing:
-
Japanese NSK
-
Electric control appliances:
-
Schneider
-
Lubricating grease:
-
Mobil
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZOYO
-
Application:
-
Large and medium-sized meat processing plants
-
Production Capacity:
-
300-500kg/h
-
Dimension(L*W*H):
-
1440*630*970mm
-
Power:
-
6.5/8kW
-
Voltage:
-
380V
-
Weight (KG):
-
450
-
Hopper volume:
-
110L
-
Shell, frame, motor base:
-
SUS304 stainless steel
-
Motor:
-
Siemens motor
-
Control appliances:
-
Schneider Electric
-
Bearing:
-
Japanese NSK
-
Electric control appliances:
-
Schneider
-
Lubricating grease:
-
Mobil
Product Description

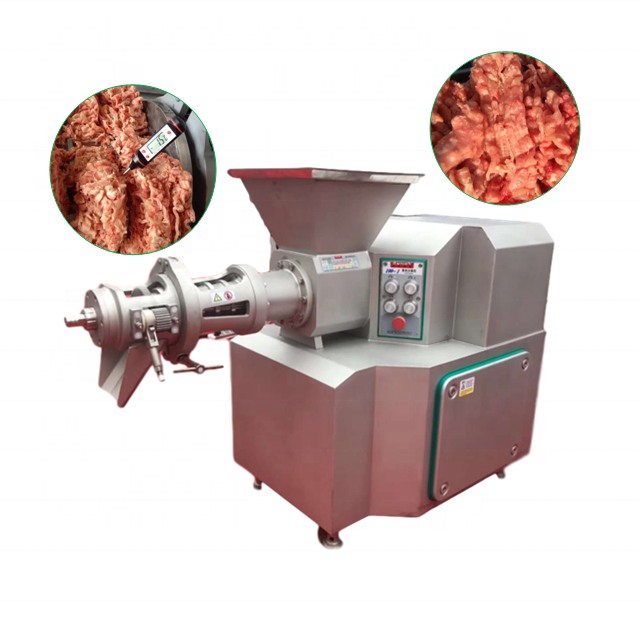

Poultry Meat Deboning Machine Chicken Deboner Machine Poultry Meat Bone Separator for Sausages Ham
The machine adopts high-quality high-strength stainless steel, sturdy and durable, simple structure, safe and convenient to operate, easy to clean, easy to disassemble, and no consumables.
Separable raw materials:
Chicken, goose, duck, rabbit, fish(such as chicken skeleton, full and half frame, whole chicken, chick neck, rabbit frame, chicken bone cartilage and meat fork, etc.)
Working characteristics:
The material is separated by one machine at one time, saving manpower, material resources and space. This machine can be used for low-temperature separation and chilled separation (the best separation raw material temperature is -3～0℃). The output rate can reach between 65% and 90% (the specific output rate parameter depends on the raw materials.)
Separated meat puree characteristics:
1. Good color, large addition；
2. Low bone residue content (0.06%~0.08%), good taste, no gritting teeth；
3.The meat tissue structure is small in damage, with flakes, filaments, and strong granules, which improve the product quality；
4. The meat temperature has been at low temperature from separation to use, .bacteria are not easy to multiply, and it is not easy to oxidize.
ZYD-130-I characteristics(the configuration can be changed according to customer's requirements or budget)
|
Item
|
Remarks
|
|
Shell, frame, motor base
|
All SUS304 stainless steel
|
|
Overall waterproof (inspection window, button station）
|
Hengshui Wanbang special (made according to the workshop environment)
|
|
Motor
|
Siemens motor
|
|
Reducer
|
Jiangsu Guomao hard tooth surface high torque reducer
|
|
Control appliances
|
Schneider Electric
|
|
Bearing
|
Japanese NSK
|
|
Grease
|
Mobil
|
|
Disassembly rotating hanger for cleaning( 1 set)
|
304 stainless steel
|
Specification
|
Model
|
Capacity
|
Power
|
Dimension
|
Weight
|
|
ZYD-100-I
|
300-500kg/h
|
6.5/8kW
|
1440*630*970mm
|
450kg
|
|
ZYD-130-I
|
800-1000kg/h
|
13/16kw
|
1990*820*1300mm
|
850kg
|
|
ZYD-160-II
|
1500-2000kg/h
|
18.5/22kW
|
2130*890*1400mm
|
1350kg
|
|
ZYD-180-I
|
2500-3000kg/h
|
26/32kW
|
2420*1200*1500mm
|
1650kg
|
|
ZYD-180-II
|
3000-4000kg/h
|
45kW
|
2420*1200*1500mm
|
1650kg
|
|
ZYD-220-I
|
5000-6000kg/h
|
55kW
|
2700*1450*1650mm
|
2150kg
|
Details Images
Processed meat from the bones
Customer on Site Cases
Finished meat products
