Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Single Pulse Energy:
-
/
-
Pulse Width:
-
/
-
Wavelength:
-
1080 nm
-
Focal Spot Diameter:
-
/
-
Dimensions:
-
1240*620*1060 mm
-
Weight (KG):
-
210 KG
-
Marketing Type:
-
3 In 1 Laser Welding Machine
-
Core Components:
-
Laser Generator
-
Product name:
-
Laser Welder Cleaner Cutter 3 In 1
-
Laser source:
-
1500W/ 2000W/ 3000W
-
Power adjustment range:
-
10%-100%
-
Control system:
-
Au3tech controller, single axis
-
Laser head:
-
Au3tech hand-held laser welding, cleaning,cutting combine head
-
Cooling way:
-
Water Cooling
-
Delivery cable length:
-
10m
-
Machine voltage:
-
1000-2000W 220V 1PH, 3000W 380V 3PH
-
Working temperature:
-
0-40℃
-
Working humidity:
-
<70% no condensation
Quick Details
-
Max. Output Power:
-
1500W
-
Usage:
-
Metal welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACCTEK
-
Single Pulse Energy:
-
/
-
Pulse Width:
-
/
-
Wavelength:
-
1080 nm
-
Focal Spot Diameter:
-
/
-
Dimensions:
-
1240*620*1060 mm
-
Weight (KG):
-
210 KG
-
Marketing Type:
-
3 In 1 Laser Welding Machine
-
Core Components:
-
Laser Generator
-
Product name:
-
Laser Welder Cleaner Cutter 3 In 1
-
Laser source:
-
1500W/ 2000W/ 3000W
-
Power adjustment range:
-
10%-100%
-
Control system:
-
Au3tech controller, single axis
-
Laser head:
-
Au3tech hand-held laser welding, cleaning,cutting combine head
-
Cooling way:
-
Water Cooling
-
Delivery cable length:
-
10m
-
Machine voltage:
-
1000-2000W 220V 1PH, 3000W 380V 3PH
-
Working temperature:
-
0-40℃
-
Working humidity:
-
<70% no condensation

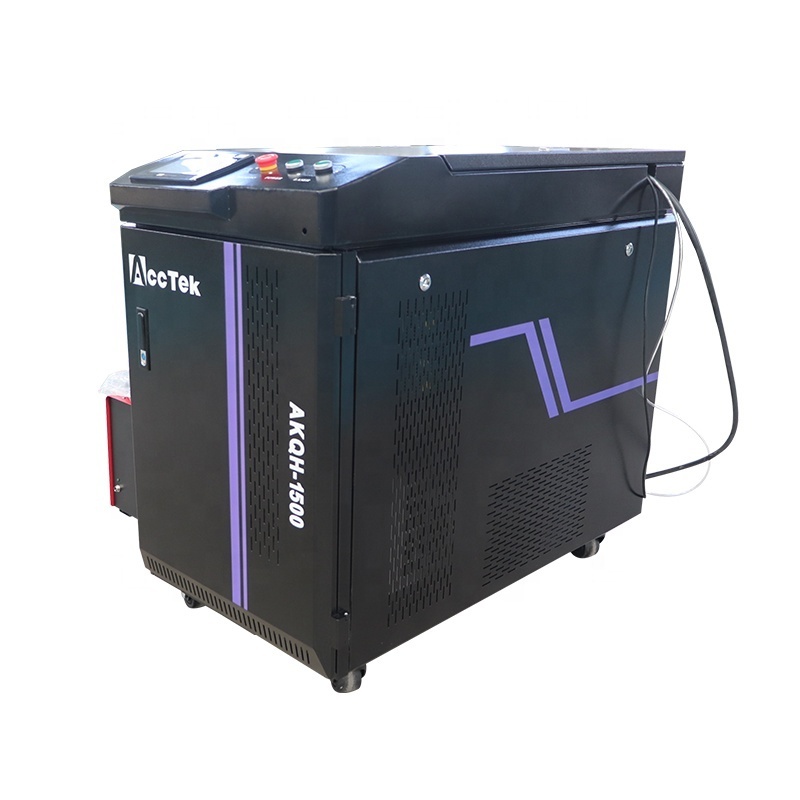

Hot Selling Handheld Fiber Laser Welding Machine For Metalworking Automatic Fiber Laser Welder Cleaner Cutter 3 In 1 in EU
Product Description
* Portable and flexible, easy and simple operation, meet the welding of multiple angles and positions;
* Equipped with 10m importable optical fiber, flexible and convenient for outdoor welding;
* Infrared positioning is used to verift the welding head position and verify the position during welding. The welding position is more accurate to ensure a more beautiful weld;
* Not easy to deform, easy to polish. Solved the problems of welding penetration, welding nugget, welding quality and other problems that occurred when using argon arc welding;
* The laser welding depth is large and the welding seam is firm. It's suitable for spot welding of various complicated welding seams and various devices.
* Equipped with 10m importable optical fiber, flexible and convenient for outdoor welding;
* Infrared positioning is used to verift the welding head position and verify the position during welding. The welding position is more accurate to ensure a more beautiful weld;
* Not easy to deform, easy to polish. Solved the problems of welding penetration, welding nugget, welding quality and other problems that occurred when using argon arc welding;
* The laser welding depth is large and the welding seam is firm. It's suitable for spot welding of various complicated welding seams and various devices.
Product Paramenters
|
Description
|
Specification
|
|
|
||
|
Model
|
AKQH-1500
|
AKQH-2000
|
AKQH-3000
|
||
|
Power
|
1500W
|
2000W
|
3000W
|
||
|
Range of adjustable power
|
10-100%
|
|
|
||
|
Laser wavelength
|
1080 nm
|
|
|
||
|
Fiber length
|
10 m
|
|
|
||
|
Way of working
|
Water cooling
|
|
|
||
|
Speed range
|
0-120mm/s
|
|
|
||
|
Welding thickness
|
0.5-3mm
|
0.5-4mm
|
0.5-6mm
|
||
|
Maximum cleaning width
|
80mm
|
|
|
||
|
Cooling way
|
Water cooling
|
|
|
||
|
Voltage
|
220V 1P, 50/60 Hz
|
220V 1P, 50/60 Hz
|
380V 3P, 50/60 Hz
|
||
|
Working temperature
|
0-40℃
|
|
|
||
|
Working humidity
|
＜70%(No condensation)
|
|
|
||
Detail Show
# 3 modes: welding, cleaning, cutting, everything mode is good and very stable.
# 1500W 2000W 3000W are available
# Support customization: make your own logo/design the appearance of the machine.
# The whole machine is guaranteed for 3 year, and online technical support after-sales.
# No MOQ request,Wholesale price.Please contact us for wholesale price.
# 1500W 2000W 3000W are available
# Support customization: make your own logo/design the appearance of the machine.
# The whole machine is guaranteed for 3 year, and online technical support after-sales.
# No MOQ request,Wholesale price.Please contact us for wholesale price.
Working Samples
Laser cleaning function:
- It can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc.
- It has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface; clean the surface oil, stains and dirt Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, machine tools, environmental protection industries and other fields.
Laser welding function:
It is suitable for stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Laser cutting function:
Fiber laser cutting head has an excellent cutting function on metal materials less than 3mm.
- It can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc.
- It has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface; clean the surface oil, stains and dirt Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, machine tools, environmental protection industries and other fields.
Laser welding function:
It is suitable for stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Laser cutting function:
Fiber laser cutting head has an excellent cutting function on metal materials less than 3mm.
Our Services
Pre-sale
1) Professional sales team and engineer team provide professional technical Support
2) 24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.
3) Test video and Sample support
4) OEM support
5) Certificate support: CE FDA
In-sale
1) In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.
2) Shooting working video and machine pictures for customers' confirmation.
Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve
questions faster.
After-sale
1) 3-year machine warranty; 2-year laser generator warranty
The machine with main parts(excluding the consumables) shall be changed free of charge, when if there is any problem during the
warranty period.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) We will provide the consumable parts at an agency price when you need replacement.
5) 24 hours of online service each day, free technical support.
6) Machine has been adjusted before delivery, operation disk and manual was included.
1) Professional sales team and engineer team provide professional technical Support
2) 24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.
3) Test video and Sample support
4) OEM support
5) Certificate support: CE FDA
In-sale
1) In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.
2) Shooting working video and machine pictures for customers' confirmation.
Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve
questions faster.
After-sale
1) 3-year machine warranty; 2-year laser generator warranty
The machine with main parts(excluding the consumables) shall be changed free of charge, when if there is any problem during the
warranty period.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) We will provide the consumable parts at an agency price when you need replacement.
5) 24 hours of online service each day, free technical support.
6) Machine has been adjusted before delivery, operation disk and manual was included.
