Quick Details
-
Voltage:
-
380V
-
Power:
-
According to machine model & configuration
-
Dimension(L*W*H):
-
According to machine model & configuration
-
Weight:
-
5000 kg
-
Finished Products:
-
Toilet Tissue Paper Roll/Kitchen Towel
-
Raw material:
-
Virgin Pulp
-
Processing:
-
Paper Slitting and Rewinding Machine, Paper Embossing
-
PLC:
-
Siemens
-
Capacity:
-
3-6tons
-
Material:
-
13-15.5gsm, 2plies; 16-18.5gsm, 3plies
-
Application:
-
To produce kitchen towel & toilet paper roll
-
After-sales Service:
-
rovided: Free spare parts, Video technical support, Field installation
-
Production speed:
-
200-240m/min
Quick Details
-
Production Capacity:
-
200-240m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Meijing
-
Voltage:
-
380V
-
Power:
-
According to machine model & configuration
-
Dimension(L*W*H):
-
According to machine model & configuration
-
Weight:
-
5000 kg
-
Finished Products:
-
Toilet Tissue Paper Roll/Kitchen Towel
-
Raw material:
-
Virgin Pulp
-
Processing:
-
Paper Slitting and Rewinding Machine, Paper Embossing
-
PLC:
-
Siemens
-
Capacity:
-
3-6tons
-
Material:
-
13-15.5gsm, 2plies; 16-18.5gsm, 3plies
-
Application:
-
To produce kitchen towel & toilet paper roll
-
After-sales Service:
-
rovided: Free spare parts, Video technical support, Field installation
-
Production speed:
-
200-240m/min

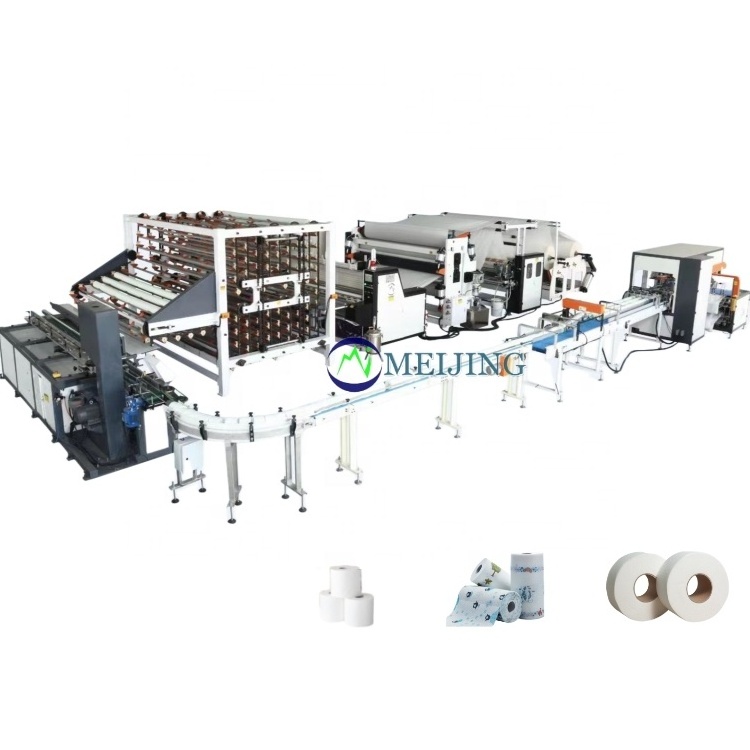

Maquinas para fabricar papel higienico Toilet Paper machine For
Cotton Towel Maxi Roll tissue Paper Lamination Making Machine
Cotton Towel Maxi Roll tissue Paper Lamination Making Machine
|
Machine Model
|
FS-1575
|
FS-2200
|
FS-2500
|
FS-2800
|
|||
|
Paper Width
|
1800mm
|
2200mm
|
2500mm
|
2800mm
|
|||
|
Finished paper core dia
|
30-55mm
|
|
|
|
|||
|
Jumbo roll dia
|
1200mm
|
|
|
|
|||
|
Jumbo Roll Core Diameter
|
Standard 76mm
|
|
|
|
|||
|
Finished Diameter
|
90-150mm, can be customized to 300mm for maxi roll
|
|
|
|
|||
|
Machine Speed
|
200-240m/min
|
|
|
|
|||
|
Back Stand
|
Standard three layer synchronous transmission
|
|
|
|
|||
|
Parameter Setting
|
PLC computer operating system interface
|
|
|
|
|||
|
Pneumatic System
|
The 3 horse air compressor,a minimum pressure of 5kg/cm2Pa
|
|
|
|
|||
|
Power
|
Stepless variable speed
|
|
|
|
|||
|
Driving
|
Independent motor step drive
|
|
|
|
|||
|
Machine Structure
|
Independent wallboard structure
|
|
|
|
|||
JUMBO ROLL STANDS
Upward pneumatic paper loading sets,greatly
lightens the labor intensity of the workers,
easy & fast change jumbo rolls. (2 sets)
PERFORATING UNIT
Perforation station is driven by individual motor.
It can avoid the oblique line of the perforation.
Perforating distance: adjustable
SLITTING UNIT
The machine can be equipped slitting system to cut
paper roll on the machine directly.Cutting length
can be adjustable on the machine.
REWINDING UNIT
Equipped with paper core guiding device.
Changing roll core automatically.
Full Embossing Unit
1.The whole wallboard Structure: 30 mm steel plate
2.Steel roll to steel roll or steel roll to rubber roll
3.Independent motor driving, frequency converter control
4.Embossing roll dia: 320 mm depends on machine width.
5.We will provide embossing pattern for free or design
High Level Glue Lamination System
1. It adopts scraping glue system, also can adopt rolling glue, the cost is different.
2.Independent motor control glue: when stop machines, automatically stir glue to avoid glue dry hard to clean.
3. dot by dot , dot by bottom, dot by nested embossing
1.What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
2.Are your a manufacturer?
A: Yes. Of course we are. We are specialized in paper tissue converting manufacturing in Foshan City for more than 30 years.Welcome to visit our factory and I believe you will be satisfied with our products.
3.What's your advantages? A: We have more than 15years experience in the field of paper making
industry. ISO9001 and BV certification. Strict quality control of every procedure. Perfect after-sales service.
industry. ISO9001 and BV certification. Strict quality control of every procedure. Perfect after-sales service.
4.Can you send us sample?
A: we can send samples for free, also wish you can send us your sample to analysis your tissue products.
