Quick Details
-
Model Number:
-
CY-PCB-89
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChengYue
-
Copper Thickness:
-
1OZ
-
Min. Hole Diameter:
-
0.7MM
-
Min. Line Width:
-
0.4MM
-
Min. Line Spacing:
-
0.25MM
-
Surface Finishing:
-
Lead Free HASL
-
Item name:
-
OEM PCB
-
Solder Mask Standard:
-
According to IPC_SM_840
-
Solder mask color:
-
green
-
Legend print:
-
milky white
-
Min track size:
-
0.25mm
-
min isolation:
-
0.25mm
-
Profile:
-
routing
-
Test:
-
AOI test, Electronicl Test
-
Quality standard:
-
IPC-6010 Series, class 2
-
Set size:
-
278.24*480.29/6
Quick Details
-
Base Material:
-
CEM-1
-
Board Thickness:
-
1.6MM
-
Board Size:
-
87.4*268.24mm
-
Model Number:
-
CY-PCB-89
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChengYue
-
Copper Thickness:
-
1OZ
-
Min. Hole Diameter:
-
0.7MM
-
Min. Line Width:
-
0.4MM
-
Min. Line Spacing:
-
0.25MM
-
Surface Finishing:
-
Lead Free HASL
-
Item name:
-
OEM PCB
-
Solder Mask Standard:
-
According to IPC_SM_840
-
Solder mask color:
-
green
-
Legend print:
-
milky white
-
Min track size:
-
0.25mm
-
min isolation:
-
0.25mm
-
Profile:
-
routing
-
Test:
-
AOI test, Electronicl Test
-
Quality standard:
-
IPC-6010 Series, class 2
-
Set size:
-
278.24*480.29/6
Product Description

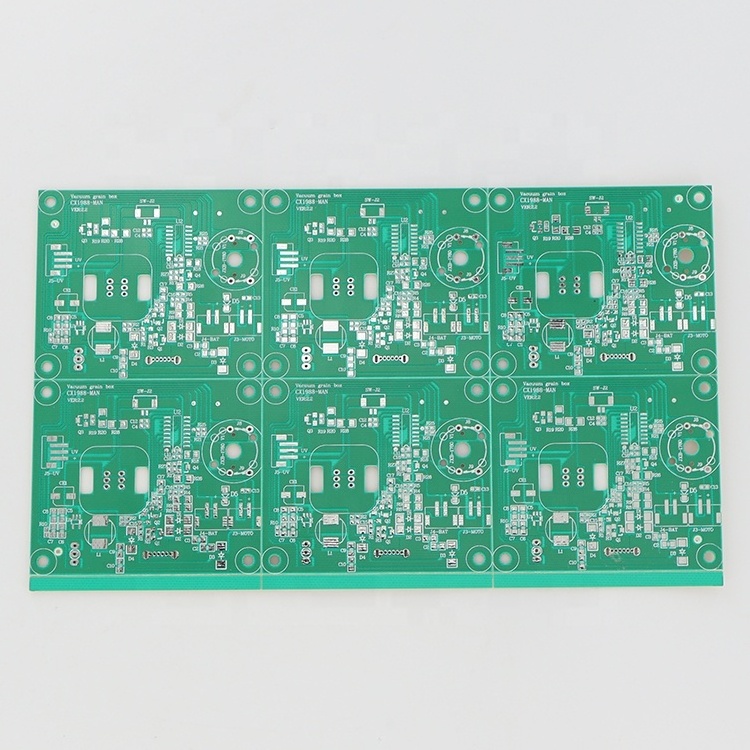

OEM pcb Manufacturer Single Layer Aluminum FR4 CEM-1 CEM-3 94v0 Circuit Board PCB Fabrication
| Item Code | CY-PCB |
| Material | CEM-1 base |
| Board thickness | 1.6mm |
| Copper thickness | 1OZ, 35UM |
| Solder mask color | green |
| legend printing | white |
| Surface finish | Lead free HASL |
| Min track size | 0.25mm |
| Min isolation | 0.25mm |
| Profile | Routing |
| Test | AOI Test, Electronicl test |
| Quality standard | IPC_SM_840, IPC-6010 Series, Class 2 |
| PCS Size | 87.4*268.24mm |
| panel size | 278.24*480.29/6 |
| Application | used for OEM LED Lighting, OEM indoor/Outdoor light. |
