Quick Details
-
Dimension(L*W*H):
-
2700*450*630mm
-
Weight:
-
300 KG
-
Mobility:
-
Portable
-
Air pressure:
-
0.5-0.7MPA
-
Hole diameter:
-
75-130mm
-
Hole depth:
-
20m
-
Air consumption:
-
9-17m3/min
-
Feed Stroke:
-
1m
-
Lifting power:
-
600N
-
Rotation Speed:
-
0-80rpm
-
Rock hardness:
-
F=8-16
-
Drive mode:
-
Electric motor
-
Drill pipe:
-
50*1000mm
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
JCDRILL
-
Voltage:
-
N/A
-
Dimension(L*W*H):
-
2700*450*630mm
-
Weight:
-
300 KG
-
Mobility:
-
Portable
-
Air pressure:
-
0.5-0.7MPA
-
Hole diameter:
-
75-130mm
-
Hole depth:
-
20m
-
Air consumption:
-
9-17m3/min
-
Feed Stroke:
-
1m
-
Lifting power:
-
600N
-
Rotation Speed:
-
0-80rpm
-
Rock hardness:
-
F=8-16
-
Drive mode:
-
Electric motor
-
Drill pipe:
-
50*1000mm

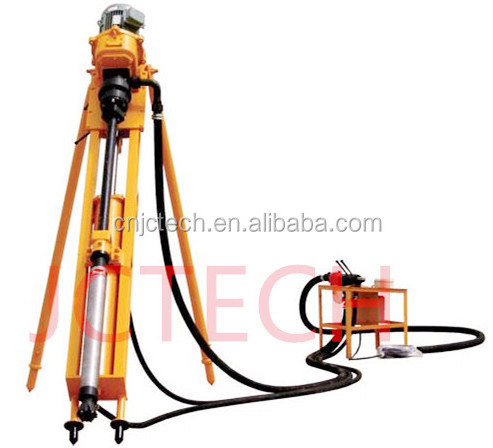

Portable pneumatic drilling rig
The drill DM100A&DM100B pneumatic drilling rig is high powered with easy operation system. It could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16, it can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes. It is really a grear helping hands for you to improve efficiency.
| MODEL | DM100A | DM100B |
| Air pressure(Mpa) | 0.5-0.7 | 0.5-0.7 |
| Hole diameter(mm) | 75-130 | 75-130 |
| Air consumption(m 3 /min) | 9-17 | 6-12 |
| Hole depth(m) | 20 | 20 |
| Feed Stroke(m) | 1 | 1 |
| Lifting power(N) | 600 | 600 |
| Rotation Speed(r/min) | 0-80 | 110 |
| Rock hardness | f=8-16 | f=8-16 |
| Drive mode | Wind motor | Motor(Electricity) |
| Rated power(kw) | 4 | 4 |
| Drill pipe | 50×1000mm | 50×1000mm |
| Size | 2700×450×630 | 2700×420×610 |
| Weight(kg) | 245 | 300 |
Packaging & Shipping
Standard sea transportation package or packed as customer's requirement
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
