Quick Details
-
Weight:
-
500kg
-
Size:
-
1980*900*1940mm
-
Power:
-
2kw
-
Weight (KG):
-
400 kg
-
Product name:
-
drinking water plant in container
-
Keywords:
-
small water purification machine
-
Application:
-
mineral water production machine
-
Capacity:
-
250lph-100000lph
-
Feature:
-
Automatic Control
-
Brand:
-
WINTO
-
Color:
-
Customized Color
-
Function:
-
Producing Fresh Water
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Voltage:
-
220v /380V /Customized
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WINTO
-
Material:
-
wood
-
Weight:
-
500kg
-
Size:
-
1980*900*1940mm
-
Power:
-
2kw
-
Weight (KG):
-
400 kg
-
Product name:
-
drinking water plant in container
-
Keywords:
-
small water purification machine
-
Application:
-
mineral water production machine
-
Capacity:
-
250lph-100000lph
-
Feature:
-
Automatic Control
-
Brand:
-
WINTO
-
Color:
-
Customized Color
-
Function:
-
Producing Fresh Water
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Voltage:
-
220v /380V /Customized

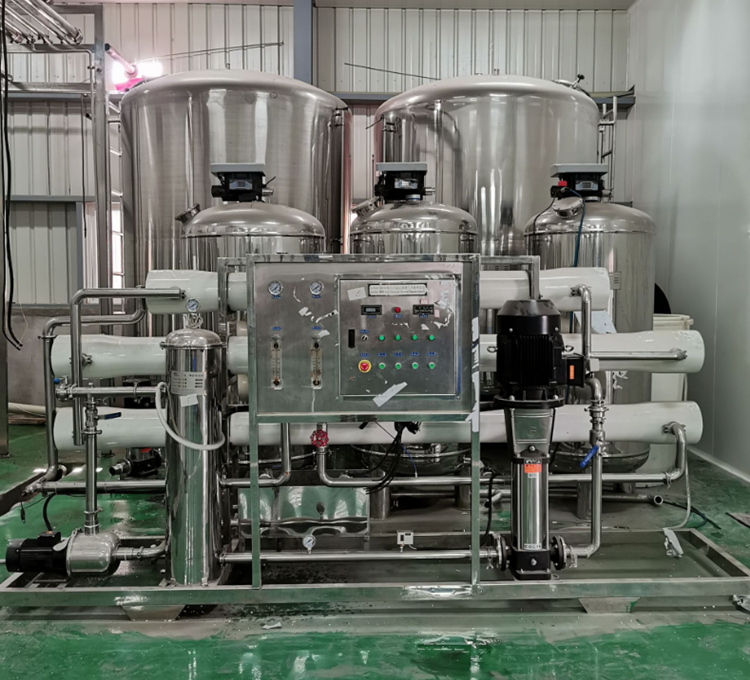

Mineral water production machine drinking water ro plant in container small water purification machine
Hi, I'm Harper, we have the exact machine you need.
Please contact me for telling your
raw water quality
,
capacity
and
treated water purpose
, we will give you the
best offer
.
Reverse osmosis system (RO) is a kind of water treatment machinery that uses semi permeable membrane to remove salt under the action of pressure difference. It is opposite to natural osmosis, so it is called reverse osmosis, also known as reverse osmosis. According to the different osmotic pressure of various materials, reverse osmosis machine can be used to achieve the purpose of separation, extraction, purification and concentration. Reverse osmosis can remove more than 97% of the dissolved salts and more than 99% of the colloids, microorganisms, micro materials and organic matters in water. It is characterized by low energy consumption, no pollution, simple process, high effluent quality, and easy operation and maintenance.
Features:
1. Can run and produce water continuously, highly automatic.
2. No need chemical to regeneration,easy operation and maintainance.
3. RO reverse osmosis system uses first-line membrane.
4. Automatic switch on when lack of water,and switch off when no water or full of water.
5. RO membrane auto wash and reduce the pollution speed.
6. Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7. Production water condutivity meter monitors water quality online contionuosly.
8. Input water and dense water pressure meters, monitor the water treatment machinery differential pressure and remind the time of washing.
Reverse Osmosis Sytem Processing:
Raw water pump → Quartz sand filter → Activated carbon filter→ Resin softener → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter.
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on.
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on.
4. Water Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to reverse osmosis system (at least 2.0 Mpa).
7. RO system-- main part of pure water treatment machinery plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8. UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis system.
9. Ozone sterilizer -- Use ozone Kill bacteria not killed by UV.
10. Finished water tank -- For pure water storage.
Water treatment machinery parameter:
Inlet water pressure:0.2-0.4 Mpa
PH range: 6 ~ 8.5
Water temperature: 25℃
Ion removal rate: ≥ 99%
Bacterial virus removal rate: ≥ 99%
Recovery: ≥ 60%
Specification of Water Treatment Machinery | ||||
Model | Capacity | Power | Size (L*W*H) | Weight |
WTRO-250 | 250L/H | 0.75kw | 1450*900*1820mm | 300kg |
WTRO-500 | 500L/H | 0.75kw | 1550*900*1820mm | 350kg |
WTRO-1000 | 1000L/H | 1.5kw | 1980*900*1940mm | 500kg |
WTRO-2000 | 2000L/H | 2kw | 4800*700*2050mm | 700kg |
WTRO-3000 | 3000L/H | 5kw | 6000*800*2200mm | 800kg |
WTRO-4000 | 4000L/H | 6.5kw | 7000*900*2400mm | 1000kg |
WTRO-5000 | 5000L/H | 8kw | 8000*1000*2700mm | 1500kg |
WTRO-6000 | 6000L/H | 12kw | 8500*1600*1900mm | 2000kg |
WTRO-8000 | 8000L/H | 15kw | 1000*1870*3000mm | 4000kg |
WTRO-10000 | 10000L/H | 20kw | 12000*1700*3500mm | 4500kg |
WTRO-20000 | 20000L/H | 30kw | 13000*1900*3500mm | 9000kg |
WTRO-30000 | 30000L/H | 35kw | 13500*2300*3800mm | 12000kg |
Contact us immediately to start your business!!!!
Zhengzhou Winto Machinery Equipment Co., Ltd. specializes in production and sales of water treatment machinery, reverse osmosis system and mechanical accessories. We have a number of advanced water treatment technologies, perfect quality assurance system and after-sales service. Owned a number of engineering and technical personnel with rich experience in project design and equipment installation and debugging. Able to provide cost-effective solutions according to the actual requirements of users.
All products are designed and produced in accordance with international quality standards. The main products include: Water treatment machinery, reverse osmosis system, ultra-filtration machine, seawater desalination machine, sewage treatment equipment, filling machine, bottle blowing machine and related ancillary products. Sincerely look forward to create a better future with you.
China supplier water treatment machinery plant.
In wooden case or container, standard export packaging, or depend on client's requirement.
1.Cover by PVC film + wooden case
2.Wooden case suitable for long distance ocean shipping.
Q1: Are you a factory or trading company?
A1: We are a professional water treatment machinery manufacturing factory that set up for 15 years.We can customize the machine for you.
Q2: Do you accept a sample order?
A2: Yes,we can make your customized sample before mass order placed.
Q3: When can I get my machine after I paid?
A3: Normally production time is around 10-20 working days, it depends on your project.
Q4: Which machine should I choose?
A4: It depends on your raw water quality, capacity and treated water purpose, you can contact us and tell the details, so as to choose the most suitable reverse osmosis system machine.
Q5: Can I get your products with our logo and design?
A5: Yes, we support OEM or ODM service.
Q6: Can I get a cheaper price?
A6: Yes, please contact us for the best price.
Q7: How long is your warranty?
A7: We offer 1 year warranty, but our machine usually can work 5 or 10 years without breaking down.
Q8: Can I visit your factory?
A8: Of course, welcome to our factory any time. Our professional engineers and technicians are at your service.
Q9: How to install the water treatment machine?
A9: The machine you received is assembled. We will also send you operation manuals and videos, or on-site service.
