- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ER14250
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
11, 11g
-
Size:
-
14.5x25.4mm
-
Max.Continuous Current:
-
25mA
-
Max.Pulse Current:
-
50mA
-
Packing:
-
Foam + Carton
-
Other Certificates:
-
UN38.3, SGS, MSDS, FCC, ISO
Quick Details
-
Battery Size:
-
1/2AA
-
Brand Name:
-
RUIZHI
-
Certification:
-
UN38.3
-
Model Number:
-
ER14250
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
11, 11g
-
Size:
-
14.5x25.4mm
-
Max.Continuous Current:
-
25mA
-
Max.Pulse Current:
-
50mA
-
Packing:
-
Foam + Carton
-
Other Certificates:
-
UN38.3, SGS, MSDS, FCC, ISO

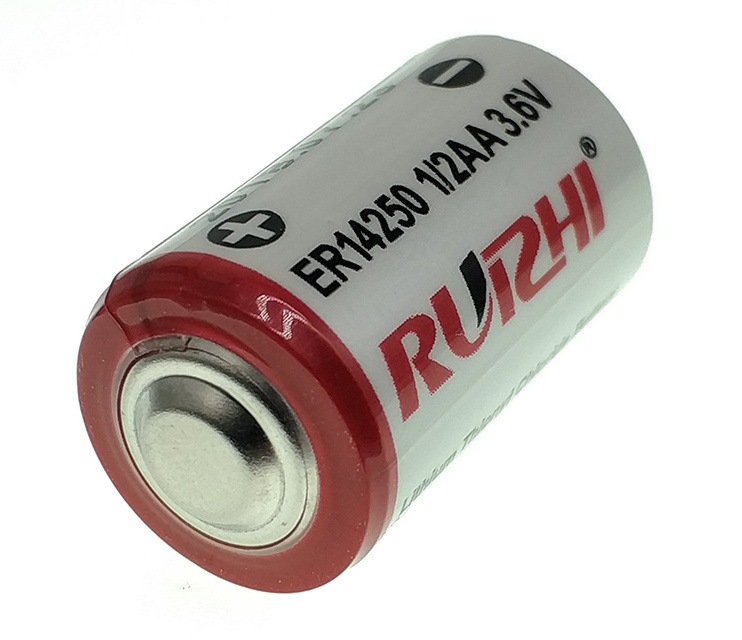

Product Description
|
Characteristcs
ER14250
|
|
|
|
Nominal capacity
|
1200mAh
|
|
|
Nominal voltage
|
3.6V
|
|
|
Max.continuous current
|
25mA
|
|
|
Max.pulse current capability
|
50mA
|
|
|
Weight
|
Approx.11g
|
|
|
Dimension
|
Ø14.5*25.4mm
|
|
|
Operating temperature range
|
-60℃ ~+85℃
|
|
Ruizhi use global high-end automated production systems, sophisticated analytical instruments, imports of raw materials, develop and produce various high performance primary cylindrical lithium battery.
■ Ruizhi battery has long storage lifetime.
■ Wide range of operating temperature.
■ Offer stable operating voltage and loading voltage platform.
■ Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs.
■ Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique
performance in wet environment.
■ Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request).
■ High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery.
■ Ruizhi batteries are mostly SGS, CE, RoHS, UN38.3, FCC, ISO approved.
■ Wide range of operating temperature.
■ Offer stable operating voltage and loading voltage platform.
■ Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs.
■ Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique
performance in wet environment.
■ Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request).
■ High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery.
■ Ruizhi batteries are mostly SGS, CE, RoHS, UN38.3, FCC, ISO approved.
Technical Data
|
Advantages:
|
|
|
|
High and stable operating voltage
|
|
|
|
Low self-discharge rate(less than 1% after 1 year storage at +25℃ )
|
|
|
|
Hermetic glass-to-metal sealing
|
|
|
|
Non-flammable electrolyte
|
|
|
|
Bobbin type
|
|
|
|
SGS, CE, RoHS, UN38.3, FCC certified
|
|
|
|
ISO9001 approved
|
|
|
Applications
Battery Catalog
|
Li-SOCL2 Battery (Lithium Thionyl Chloride Battery)
Bobbin Type
|
|
|
|
|
|
|
|
|||||||
|
Shape
|
Model
|
Max. Size
(mm)
|
Nominal
Voltage(v)
|
Capacity
(mAh)
|
Max.Constant Current(mA)
|
Max.Pulse
Current(mA)
|
Weight
(g)
|
|||||||
|
2/3AAA
|
ER10250
|
10.2x25.7
|
3.6
|
400
|
5
|
10
|
3.8
|
|||||||
|
AAA
|
ER10450
|
10.5x45.0
|
3.6
|
1000
|
15
|
25
|
9
|
|||||||
|
1/2AA
|
ER14250
|
14.5x25.4
|
3.6
|
1200
|
25
|
50
|
11
|
|||||||
|
2/3AA
|
ER14335
|
14.5x33.5
|
3.6
|
1650
|
40
|
80
|
13
|
|||||||
|
AA
|
ER14505
|
14.5x50.5
|
3.6
|
2700
|
50
|
100
|
19
|
|||||||
|
2/3A
|
ER17335
|
17.0x33.5
|
3.6
|
2200
|
100
|
200
|
19
|
|||||||
|
A
|
ER17505
|
17.5x50.5
|
3.6
|
3500
|
100
|
200
|
28
|
|||||||
|
A
|
ER18505
|
18.5x50.5
|
3.6
|
4000
|
100
|
200
|
32
|
|||||||
|
C
|
ER26500
|
26.2x50.0
|
3.6
|
9000
|
150
|
300
|
55
|
|||||||
|
CC
|
ER261020
|
26.2x102.0
|
3.6
|
17000
|
200
|
400
|
100
|
|||||||
|
D
|
ER34615
|
34.0x61.5
|
3.6
|
19000
|
230
|
400
|
107
|
|||||||
|
DD
|
ER341245
|
34.0x124.5
|
3.6
|
35000
|
500
|
1000
|
220
|
|||||||
|
|
ER9V
|
17.0x26.5x48.8
|
10.8
|
1200
|
25
|
50
|
34
|
|||||||
|
Spiral Type
|
|
|
|
|
|
|
|
|||||||
|
1/2AA
|
ER14250M
|
14.5x25.4
|
3.6
|
800
|
100
|
250
|
11
|
|||||||
|
2/3AA
|
ER14335M
|
14.5x33.5
|
3.6
|
1300
|
200
|
500
|
15
|
|||||||
|
AA
|
ER14505M
|
14.5x50.5
|
3.6
|
2200
|
400
|
1000
|
19
|
|||||||
|
2/3A
|
ER17335M
|
17.0x33.5
|
3.6
|
1900
|
400
|
800
|
19
|
|||||||
|
A
|
ER18505M
|
18.5x50.5
|
3.6
|
3500
|
1000
|
2000
|
32
|
|||||||
|
C
|
ER26500M
|
26.2x50.5
|
3.6
|
6500
|
1500
|
2500
|
55
|
|||||||
|
D
|
ER34615M
|
34.0x61.5
|
3.6
|
14500
|
2000
|
4000
|
110
|
|||||||
|
High Temperature Type
|
|
|
|
|
|
|
|
|||||||
|
1/2AA
|
ER14250S
|
14.5x25.0
|
3.60
|
800
|
10
|
50
|
10
|
|||||||
|
AA
|
ER14505S
|
14.5x50.5
|
3.60
|
2000
|
50
|
100
|
20g
|
|||||||
|
A
|
ER18505S
|
18.5x50.5
|
3.60
|
2800
|
100
|
200
|
27
|
|||||||
|
C
|
ER26500S
|
26.2x50.0
|
3.60
|
6000
|
200
|
400
|
55
|
|||||||
|
D
|
ER34615S
|
34.0x61.5
|
3.60
|
13000
|
200
|
400
|
100
|
|||||||
|
Li-MnO2 Battery (Lithium Manganese Dioxide Battery)
|
|
|
|
|
|
|
|
|||||||
|
1/2AA
|
CR14250
|
14.5x25.4
|
3
|
600
|
500
|
1500
|
11
|
|||||||
|
2/3AA
|
CR14335
|
14.5x33.5
|
3
|
800
|
1000
|
2000
|
14
|
|||||||
|
AA
|
CR14505
|
14.5x50.5
|
3
|
1400
|
1500
|
3000
|
21
|
|||||||
|
|
CR2
|
15.5x27.0
|
3
|
850
|
1000
|
2000
|
13
|
|||||||
|
2/3A
|
CR123A
|
17.0x34.5
|
3
|
1500
|
1500
|
3000
|
20
|
|||||||
|
|
CR17450
|
17.0x45.5
|
3
|
2000
|
1500
|
3000
|
26
|
|||||||
|
A
|
CR17505
|
17.0x50.5
|
3
|
2300
|
1500
|
3000
|
30
|
|||||||
|
A
|
CR18505
|
18.5x50.5
|
3
|
2500
|
2000
|
3000
|
35
|
|||||||
|
C
|
CR26500
|
26.2x50.5
|
3
|
5400
|
2000
|
3000
|
62
|
|||||||
|
D
|
CR34615
|
34.0x61.5
|
3
|
12000
|
2000
|
3000
|
125
|
|||||||
|
|
CR-P2
|
36.0x19.5x35.0
|
6
|
1500
|
1500
|
3000
|
42
|
|||||||
|
|
CR9V
|
17.0x26.5x48.8
|
9
|
600
|
500
|
1500
|
34
|
|||||||
Our Company
Nanjing Ruizhi Industries Co., Ltd. s
pecializes in R & D, production, sales and technical services of lithium thionyl chloride battery(Li-SOCl2) and lithium manganese dioxide battery(Li-MnO2).With a number of electromagnetic related national technical patents, super technological innovation ability and service consciousness, Ruizhi can provide customers with comprehensive product development and feasible & suitable power solution design. Ruizhi's products are widely used in utility metering, car electronics, security system, intelligent transportation, space remote sensing, cold chain monitoring, GPS positioning, military systems, marine safety, petroleum exploration, etc...
Ruizhi
is certified by ISO9001:2008 International quality management system, and its products are manufactured under ISO quality system. Ruizhi's products are certified CE, RoHS and UN38.3, and Ruizhi has made MSDS for all products to guide use and transport. The Products are sold to Europe, America, the Middle East, Southeast Asia and many other countries and regions, and product quality and service have been approved and praised by customers.
