Quick Details
-
Operating speed:
-
30~800mm/s
-
Working fluid:
-
air
-
Operating Temperature:
-
-20~80℃
-
Certification:
-
ISO2008:9001CE
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANRUK
-
Operating pressure:
-
0.15~1.0Mpa
-
Operating speed:
-
30~800mm/s
-
Working fluid:
-
air
-
Operating Temperature:
-
-20~80℃
-
Certification:
-
ISO2008:9001CE
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None

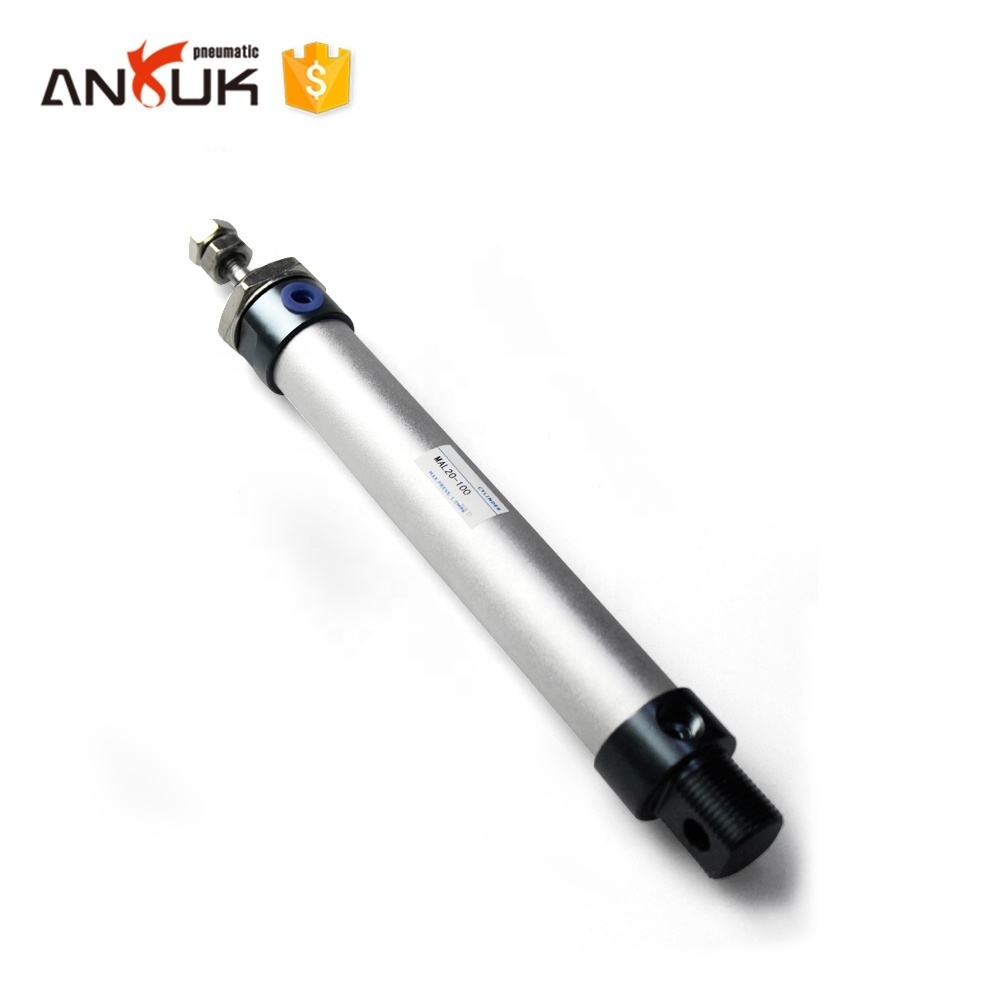

[ High quality stainless steel small pneumatic air cylinder ]
Ordering code
| 1.Model | 2.Bore size | 3.Stroke | 4.Magnet | 5.Back cover | 6.Mounting type[Note 1] | 7.Thread type |
| MA: Mini cylinder (Double acting) |
16 20 25 32 40 |
For details, please consult |
S: With magnet |
CA: Pivot type
U: Flat-end type CM: Round-end type |
Blank: No accessories
|
Blank: PT G: G T: NPT |
Specification
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting type | MSA/MTA | Single acting | - | |||||
| MA/MAD/MAJ | Double acting | - | ||||||
| MAR | - | Double acting | ||||||
| MAC/MACD/MACJ | - | Double acting with cushion | ||||||
| Fluid | Air(to be filtered by 40 um filter element) | |||||||
| Operating pressure | Double acting | 0.15~1.0MPa(22-~145psi)(1.5~10.0bar) | ||||||
| Single acting | 0.2~1.0MPa(28-~145psi)(2.0~10.0bar) | |||||||
| Proof pressure | 1. 5MPA(215psi)(15bar) | |||||||
| Temperature℃ | -20~70 | |||||||
| Speed range mm/s | Double acting:30~800 Single acting:50~800 | |||||||
| Stroke tolerance | 0~150 >150 | |||||||
| Cushion type | MAC/MACD/MACJ Series: Variable cushion; Other series: Bumper | |||||||
| Port size [Note 1] | M5*0.8 | 1/8" | 1/4" | |||||
Internal structure
Stainless Steel Mini Cylinder
Cylinder of lightweight materials, reliable sealing of the concept of the development of continuous improvement and hermetically sealed driving system, reduce the energy consumption during the operation of the three decisive factors. They can help customers to avoid the deviation in the calibration, so as to prevent potential leakage. Especially the successful application in the field of food and packaging industry automation.
Cylinder of lightweight materials, reliable sealing of the concept of the development of continuous improvement and hermetically sealed driving system, reduce the energy consumption during the operation of the three decisive factors. They can help customers to avoid the deviation in the calibration, so as to prevent potential leakage. Especially the successful application in the field of food and packaging industry automation.
