Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
SUNERGY
-
Model Number:
-
JX210-80
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1761x1097x30mm
-

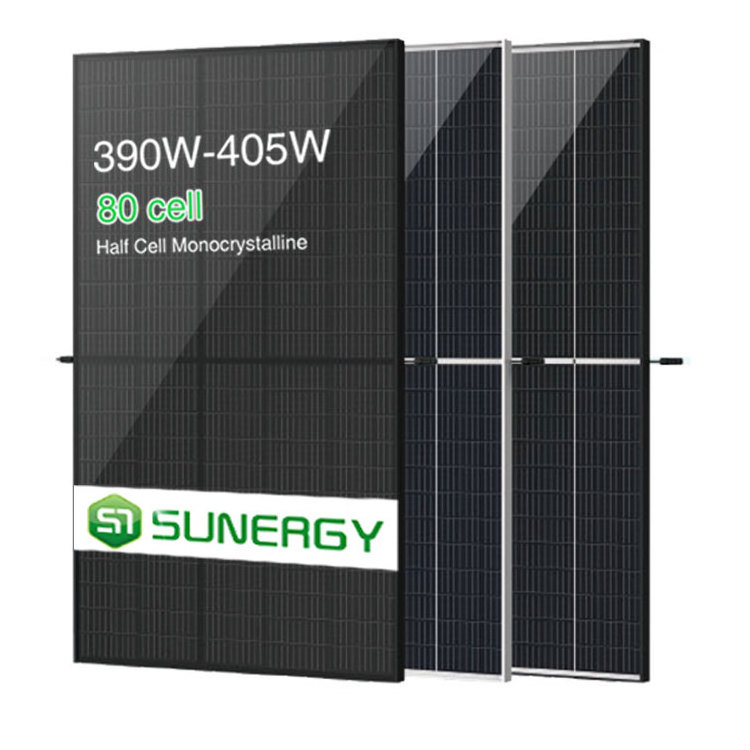

Product name:
-
half cell monocrystalline solar panel
-
Solar cell:
-
Mono 210mm*105mm
-
Color:
-
White/full black
-
Material:
-
Monocrystaline Silicon
-
Thickness:
-
30mm
-
Connector:
-
MC 4 Compatible Connector
-
Efficiency:
-
20%
-
Weight:
-
21kg
-
Application:
-
Solar Products
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
TUV,CEC, CE,SONCAP METI
Quick Details
-
Cell size:
-
210mm*105mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black
-
Panel Efficiency:
-
20%
-
Warranty:
-
25 years
-
Brand Name:
-
SUNERGY
-
Model Number:
-
JX210-80
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1761x1097x30mm
-
Product name:
-
half cell monocrystalline solar panel
-
Solar cell:
-
Mono 210mm*105mm
-
Color:
-
White/full black
-
Material:
-
Monocrystaline Silicon
-
Thickness:
-
30mm
-
Connector:
-
MC 4 Compatible Connector
-
Efficiency:
-
20%
-
Weight:
-
21kg
-
Application:
-
Solar Products
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
TUV,CEC, CE,SONCAP METI
|
DATA (STC) |
||||||
|
ELECTRICAL DATA(STC) |
||||||
|
Peak Power Watts-Pmax(Wp) |
390 |
395 |
400 |
405 |
||
|
Power Output Tolerance-P MAX(W) |
0~+5W |
|||||
|
Maximum Power Voltage-V MPP(V) |
22.5 |
22.7 |
22.9 |
23.1 |
||
|
Maximum Power Current-I MPP(A) |
17.31 |
17.43 |
17.55 |
17.65 |
||
|
Open Circuit Voltage-V OC(V) |
27.2 |
27.4 |
27.6 |
27.8 |
||
|
Short Circuit Current-I SC(A) |
18.21 |
18.31 |
18.42 |
18.51 |
||
|
Module Efficiency η m(%) |
20.3 |
20.5 |
20.8 |
21.1 |
||
|
|
|
|
|
|
|
|
|
STC:Irradiance 1000 W/m², Cell Temperature 25 ℃ , Air Mass AM1.5. |
||||||
|
|
|
|
|
|
|
|
|
MECHANICAL DATA |
||||||
|
Solar cells |
Monocrystalline 210×105mm |
|||||
|
Cell orientation |
80cells (5×16) |
|||||
|
Module dimensions |
1761x1097x30mm |
|||||
|
Weight |
21kg |
|||||
|
Glass |
3.2mm (0.13 inches), High Transmission, AR Coated Tempered Glass |
|||||
|
Frame |
Silver anodized aluminum alloy |
|||||
|
Backsheet |
White |
|||||
|
J-Box |
IP68 rated (3 or 6 diodes) |
|||||
|
Cables |
Portrait 300mm(+)/300mm(-) 4mmm² |
|||||
|
Connector |
MC4 or MC4 Compatible |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TEMPERATURE RATINGS |
||||||
|
Nominal Operating Cell Temperature (NOCT) |
44 ℃ (±2 ℃ ) |
|||||
|
Temperature Coefficient of PMAX |
- 0.37%/ ℃ |
|||||
|
Temperature Coefficient of VOC |
- 0.29%/ ℃ |
|||||
|
Temperature Coefficient of ISC |
0.057%/ ℃ |
|||||
|
|
|
|
|
|
|
|
|
PACKAGING |
MAXIMUM RATINGS |
|||||
|
Standard packaging |
36pcs/pallet |
Operational Temperature |
-40~+85 ℃ |
|||
|
Maximum System Voltage |
1500VDC(IEC) |
|||||
|
Max Series Fuse Rating |
25A |
|||||
| Tangshan Sunergy Science and Techonlogy Co., Ltd specialize in the design, production and sales of high-efficiency solar panels and solar power system.All our factory solar panels have passed ISO, CE, TUV etc. product quality certificates. In 2020, the factory introduce several full automatic production machines to further expand production capacity.At the beginning of our company establishment in 2012, we start to do the exportation of solar panels and solar power system. And until now we have sold our goods to over 60 countries, especially to Europe and Asia countries. All our customers are satisfied with our quality and service. In 2015 we built our domestic trade sales team to do the home distributed photovoltaic power generation system and large photovoltaic power station. Now we have built total 50MW photovoltaic power station at Henan and Shandong province and over 500 sets home distributed photovoltaic power generation system have been finished at local place. Besides in 2020, local place installation has a rapid development.With many years' experience in solar energy industry, we have won good reputation from our customers. We always take " integrity, responsibility, development, win-win" as our business philosophy to lead our work.We sincerely and warmly welcome you to contact us if you have any demands of our products. We are looking forward to cooperate with you. |
