SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
13000*3000*2000
-
Weight (T):
-
20 T
-
Power (kW):
-
0.6
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Loading capacity:
-
10 ton
-
Rated temperature:
-
620 Celsius Degree
-
Use:
-
Heat Treatment Furance
-
Feature:
-
Energy-saving
-
Fuel:
-
Natural Gas LPG
-
Structure:
-
Furnace Chamber
-
Material:
-
High Temperature Asistant Materials
-
Temperature control:
-
PLC Control
-
Furnace type:
-
Aluminum Billet Homogeneous Oven
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ALUMALL
-
Voltage:
-
415v
-
Dimension(L*W*H):
-
13000*3000*2000
-
Weight (T):
-
20 T
-
Power (kW):
-
0.6
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Loading capacity:
-
10 ton
-
Rated temperature:
-
620 Celsius Degree
-
Use:
-
Heat Treatment Furance
-
Feature:
-
Energy-saving
-
Fuel:
-
Natural Gas LPG
-
Structure:
-
Furnace Chamber
-
Material:
-
High Temperature Asistant Materials
-
Temperature control:
-
PLC Control
-
Furnace type:
-
Aluminum Billet Homogeneous Oven
Product Overview

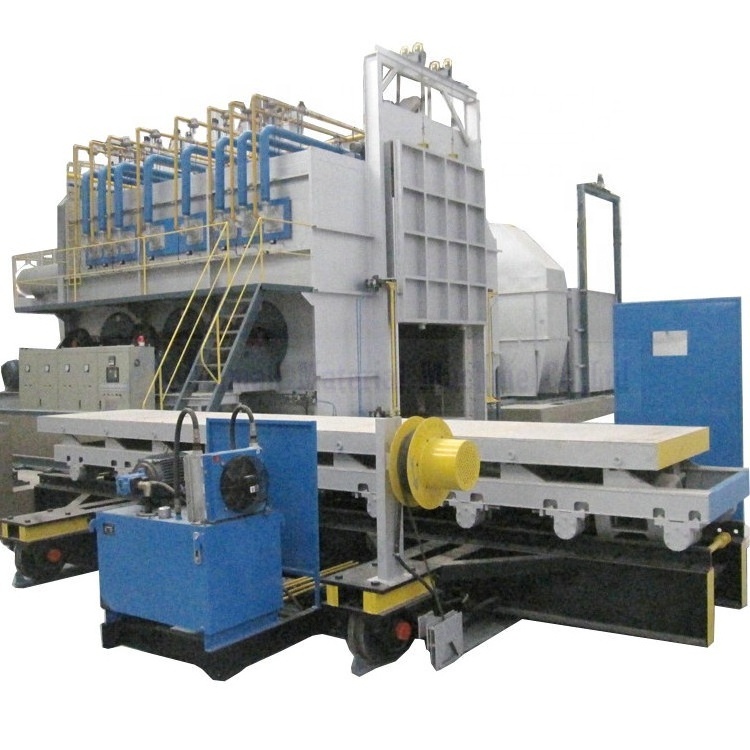

Aluminium Billet Homogenizing Furnace For Heat Treatment
The homogenizing furnace unit consists of one gas homogenizing furnace, one cooling chamber & one composite charging car.
It’s for homogenizing aluminium billets to eliminate the unevenness chemical composition and internal organization of the billets.
Then the billets are cooled at a controlled manner in the cooling chamber to improve metal processing performance for later extrusion or other processes.
It’s for homogenizing aluminium billets to eliminate the unevenness chemical composition and internal organization of the billets.
Then the billets are cooled at a controlled manner in the cooling chamber to improve metal processing performance for later extrusion or other processes.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
Right
Left
Front
PRODUCT SPECIFICATIONS
|
Model No.
|
ALM-JZ-10
|
ALM-JZ-15
|
ALM-JZ-20
|
|
ALM-JZ-25
|
ALM-JZ-30
|
ALM-JZ-35
|
ALM-JZ-40
|
|
|
Electricity-Heating Power (kw)
|
550
|
600
|
——
|
|
——
|
——
|
——
|
——
|
|
|
Max. Fuel-Consumption (KJ/hr)
|
5 x 106
|
5 x 106
|
6 x 106
|
|
8 x 106
|
10 x 106
|
10 x 106
|
11 x 106
|
|
|
Max. Working-Temp.(℃)
|
620
|
620
|
620
|
|
620
|
620
|
620
|
620
|
|
|
Circulating Blower(kw)
|
3 x (18.5/22)
|
3 x (22/30)
|
3 x (30/37)
|
|
3 x (37/45)
|
3 x (37/45)
|
3 x (55/75)
|
3 x (55/75)
|
|
|
Billet Qty in Furnace/Time (pcs)
|
50 (φ127mm)
|
84 (φ127mm)
|
105 (φ127mm)
|
|
125 (φ127mm)
|
150 (φ127mm)
|
135 (φ143mm)
|
160 (φ143mm)
|
|
|
Billet Weight (kg)
|
10000
|
16600
|
20700
|
|
25000
|
30000
|
35100
|
41000
|
|
|
Rated Loaded Capacity (kg)
|
10000
|
15000
|
20000
|
25000
|
|
30000
|
35000
|
40000
|
|
|
Hydraulic Station Motor (kw)
|
4
|
5.5
|
5.5
|
5.5
|
|
5.5
|
7.5
|
7.5
|
|
PRODUCT CONFIGURATION
high power engine
control valve
hydraulic motor
