> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25years, 25 Years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM50P-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
580*670*30mm
-
Front cover:
-
3.2mm High Transmission low Iron Tempered Glass
-
Frame color:
-
Silvery ,Black
-
Frame:
-
Anodized aluminium alloy
-
Backsheet Color:
-
White ,Black, Transparent
-
Junction Box:
-
Ip65 Rated/Passed the TUV certificate
-
OEM Order:
-
Acceptable
-
Name:
-

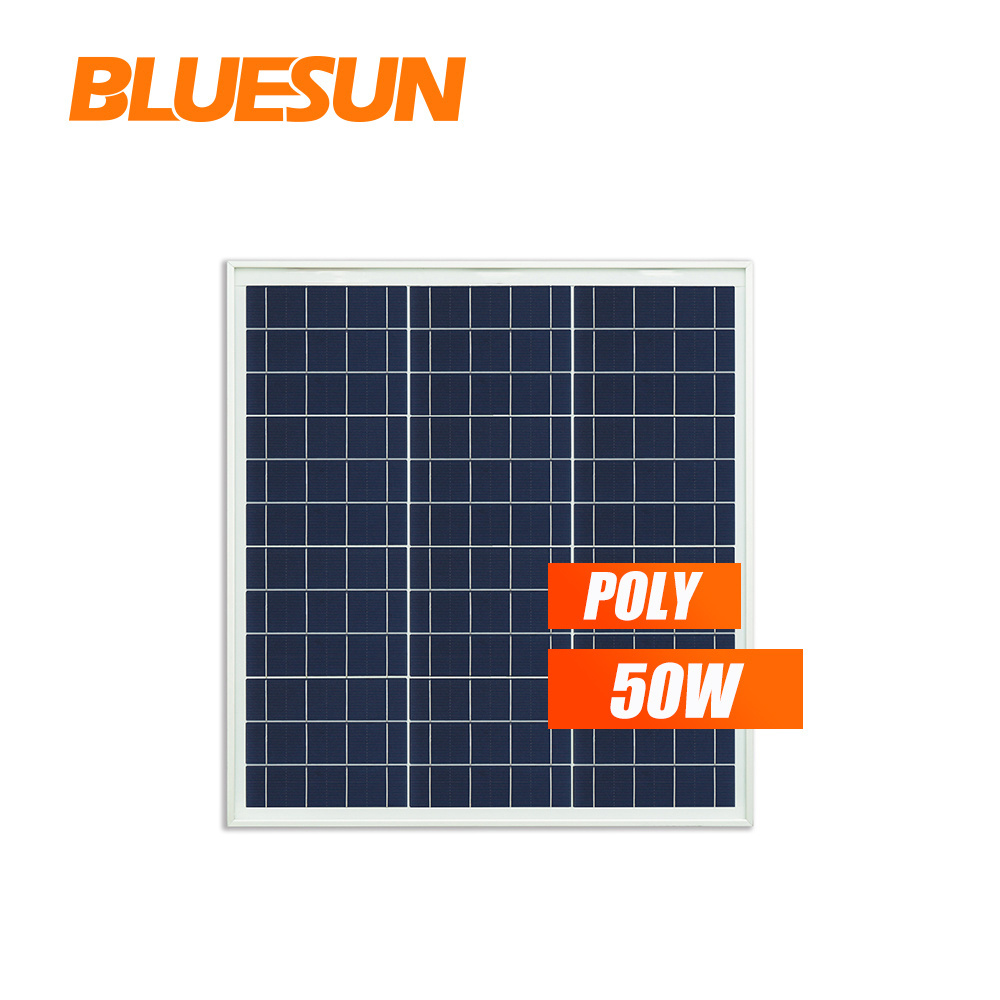

50w solar module
-
Certificate:
-
ISO9001/14001,CE/TUV
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
18%
-
Warranty:
-
25years, 25 Years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM50P-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
580*670*30mm
-
Front cover:
-
3.2mm High Transmission low Iron Tempered Glass
-
Frame color:
-
Silvery ,Black
-
Frame:
-
Anodized aluminium alloy
-
Backsheet Color:
-
White ,Black, Transparent
-
Junction Box:
-
Ip65 Rated/Passed the TUV certificate
-
OEM Order:
-
Acceptable
-
Name:
-
50w solar module
-
Certificate:
-
ISO9001/14001,CE/TUV
Product Description
|
Moduel
|
BSM100P-36
|
BSM80P-36
|
BSM50P-36
|
BSM20P-36
|
BSM10P-36
|
||||
|
Rated Maximum Power at STC
|
100
|
80
|
50
|
20
|
10
|
||||
|
Open Circuit Voltage(Voc/V)
|
21.6
|
21.6
|
21.6
|
21.6
|
21.6
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.5
|
17.5
|
17.5
|
17.5
|
17.5
|
||||
|
Short Circuit Current(Isc/A)
|
7.10
|
5.17
|
3.23
|
1.3
|
0.65
|
||||
|
Maximum Power Current(Imp/A)
|
5.714
|
4.58
|
2.86
|
1.15
|
0.58
|
||||
|
Module Efficiency(%)
|
16.50
|
16.50
|
16.50
|
16.50
|
16.50
|
||||
|
Power Tolerance
|
-0~+3%
|
|
|
|
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m
2
,Cell Temperature 25℃,Air Mass1.5
|
|
|
|
|
||||
Detailed&Production
Glass
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Packing & Delivery
|
By sea
|
Delivery from Shanghai or Ningbo seaport
|
|
|
||
|
By air
|
Departure from Shanghai Pudong Airport
|
|
|
||
|
By express
|
By TNT/DHL
|
|
|
||
Payment
|
Payment Term
|
T/T
|
EXW
|
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Project
250KW on grid solar project in Malta,EU
60KW on grid solar project in Guatemala,South America
1.2MW solar power plant in Ecuador,South America
144KW on grid solar project in California,USA
150KW on grid solar project in Japan
