Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elefine
-
Model Number:
-
EF-C026-300 DC 24V Motor swing gate operator
-
Rated Power:
-
24V DC 60W
-
Motor's Power:
-
60W
-
Rod's Running Speed:
-
2.4cm/s
-
Max Single-leaf Weight:
-
300kg
-
Input Voltage:
-
24V DC
-
Rotational Speed:
-
300RPM
-
Rod's Max Travel:
-
300mm
-
Product Name:
-
300KG automatic gate system electric dual arm swing gate opener
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Elefine
-
Model Number:
-
EF-C026-300 DC 24V Motor swing gate operator
-
Rated Power:
-
24V DC 60W
-
Motor's Power:
-
60W
-
Rod's Running Speed:
-
2.4cm/s
-
Max Single-leaf Weight:
-
300kg
-
Input Voltage:
-
24V DC
-
Rotational Speed:
-
300RPM
-
Rod's Max Travel:
-
300mm
-
Product Name:
-
300KG automatic gate system electric dual arm swing gate opener
Product Description
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
Application
|
Villa
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Elefine
|
|
Model Number
|
PKM-C026 300KG outdoor automatic gate system electric dual arm swing gate opener with App Smart Remote Control
|
|
Motor's Power
|
60W
|
|
Rod's Running Speed
|
2.4cm/s
|
|
Max Single-leaf Weight
|
300kg
|
|
Application
|
Home Office
|
|
Input Voltage
|
24V DC
|
|
Rotational Speed
|
300RPM
|
|
Rod's Max Travel
|
300mm
|
FEATURES
* swing gate opener
* Driving Method: Screw Driven Piston Type
* Operating Voltage: DC 24V
* Operate the single gate width up to 2.5m-3.5M
* Operate the single gate weight up to 300KG
* Waterproof IP55 design
* Adjustable Force
* Adjustable time-delay
* Manual Release
* Microprocessor-based control panel
* Working time protection
* Available to connect photocell, loop detector, card reader,backup battery etc.
RESONABLE INSIDE MACHINE DESIGN
Low working noise, Strong DC electric motor
AUTOMATIC RELEASE
Buit in easy manual override in case of emergency such as power failure
WIFI APP CONTROL OPTION
App control by WiFi remote
Control Panel
Technical Parameters:
1. Control Panel Voltage: AC24V, available for 24 V back up battery.
2. Applicable Range: Suitable for double arms swing gate opener.
3. Encode For transmitter: Our own customized rolling code.
4. Support remote control: Can memorize 120PCS transmitters at most
5. Motor character: 24V DC motor x2
1. Control Panel Voltage: AC24V, available for 24 V back up battery.
2. Applicable Range: Suitable for double arms swing gate opener.
3. Encode For transmitter: Our own customized rolling code.
4. Support remote control: Can memorize 120PCS transmitters at most
5. Motor character: 24V DC motor x2
Packing & Delivery
Carton package for
300KG outdoor automatic gate system electric dual arm swing gate opener with App Smart Remote Control

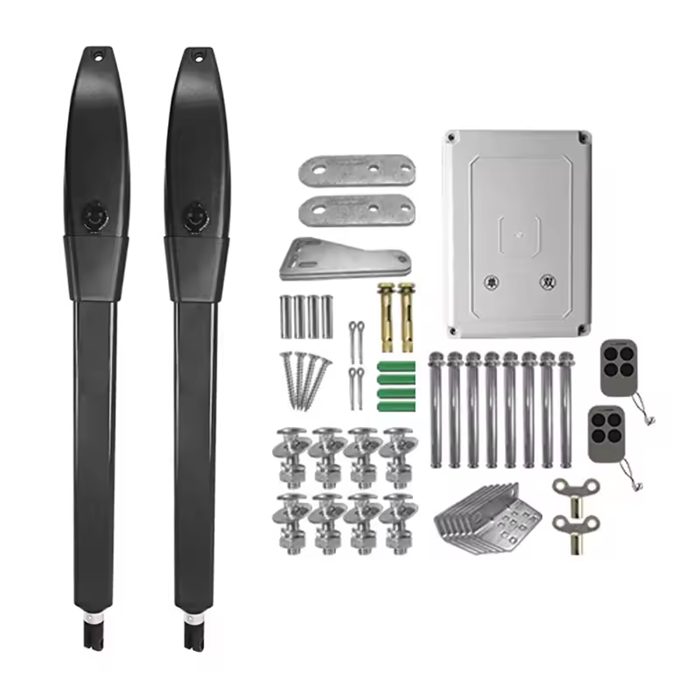

STANDARD KIT
2 x Heavy duty motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
2 x Post mounting bracket
2 x Gate mounting bracket
1 x Rubber Gate Stop
1 x Instruction manual
Attention
The pictures are for reference only.
When you purchase the door opener set, all other accessories such as solar panels, batteries, warning lights, sensors, etc. need to be purchased separately.
Please contact us to inquire about the relevant prices.
