Quick Details
-
Brand Name:
-
RIKA
-
Model Number:
-
RK510-01
-
Item:
-
Soil Moisture Monitor Sensor
-
Range:
-
0-100%(m3/m3)
-
Output Signal:
-
4-20mA ,0-5V,0-2V, RS485 optional
-
Response Time:
-
<1s
-
Power supply:
-
5VDC, 12-24VDC
-
Probe material:
-
316L stainless steel
-
Housing material:
-
ABS
-
Accuracy:
-
±2%
-
IP Grade:
-
IP68
-
Certificate:
-
CE
Quick Details
-
Type:
-
Soil Moisture Monitor Sensor
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
RIKA
-
Model Number:
-
RK510-01
-
Item:
-
Soil Moisture Monitor Sensor
-
Range:
-
0-100%(m3/m3)
-
Output Signal:
-
4-20mA ,0-5V,0-2V, RS485 optional
-
Response Time:
-
<1s
-
Power supply:
-
5VDC, 12-24VDC
-
Probe material:
-
316L stainless steel
-
Housing material:
-
ABS
-
Accuracy:
-
±2%
-
IP Grade:
-
IP68
-
Certificate:
-
CE

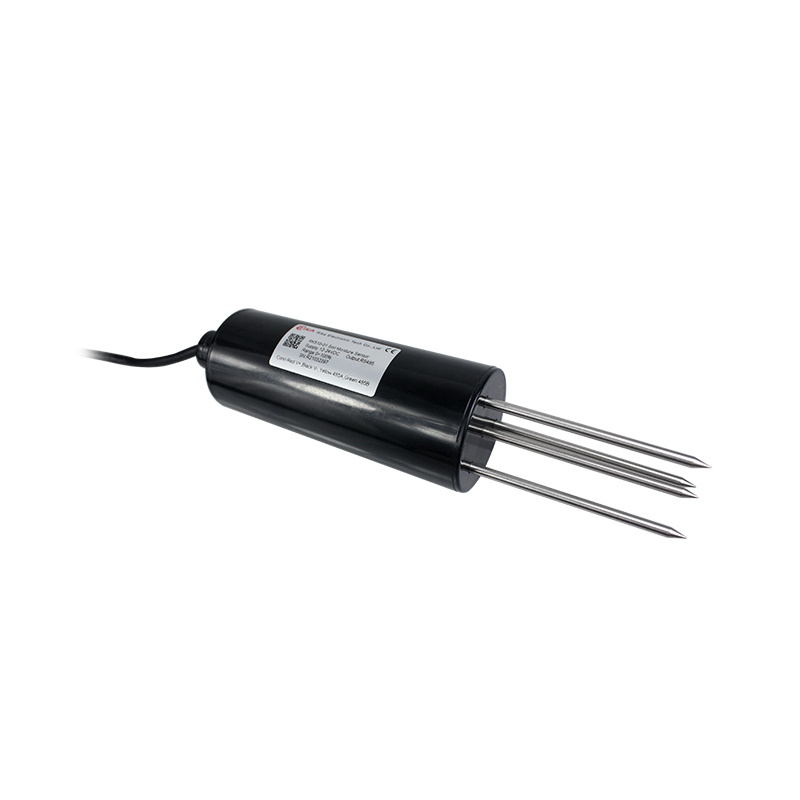

RK510-01 316L Stainless Steel RS485 High Accuracy Capacitive Soil Moisture Sensor Digital Meter
RK510-01 Soil Moisture Sensor (Plant Care Hygrometer) is based on FDR(Frequency Domain Reflectometry) principle to measures the volumetric water content in soil. The stainless steel probe is inserted into soil surface or soil profile to test soil moisture quickly. The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
FEATURES
- Four 316L needle probe
- High stability
- High accuracy
- Fast response
- Easy Installation
- Is not affected by chemical fertilizer and the influence of metal ions
APPLICATIONS
- Agriculture irrigation
- Greenhouse
- Grass farm
- Environment monitoring
- Water conservation,
- Soil testing
TECHINICAL SPECIFICATION
|
Item |
Technical Specification |
|
Range |
0-100%,0-50%,0-30% |
|
Accuracy |
±2%( 0-50%) |
|
Output Signal |
4-20mA,0-5V,0-2V,RS485 optional |
|
Response Time |
<1s |
|
Stable time |
After power on 10 s |
|
Supply |
5V,12-24VDC |
|
Effective testing area |
With the center of the probe diameter is 70mm, high 70mm cylinder |
|
Housing |
ABS |
|
Dimensions |
Ø50*208mm(probe: Ø 4 *7 8 mm ) |
|
Operating Temperature |
- 3 0℃-+ 7 0℃ |
|
Ingress Protection |
IP 67 |
|
Storage |
10-60 ℃ @20%-90%RH |
|
Probe material |
316 stainless steel |
DIMENTIONS
