Quick Details
-
Brand Name:
-
ugreen
-
Model Number:
-
wm, CM
-
Place of Origin:
-
Guangdong, China
-
Model Description:
-
USB HDD Enclosurer Docking
-
Colors:
-
as picture
-
Interface Type:
-
USB / USB C
-
Funtion:
-
Fast speed surfing
-
Standard:
-
USB 3.0 / USB-C
-
Certification:
-
CE/FCC/RHOS
-
MOQ:
-
50
-
Package:
-
Retail Packing
-
Warranty:
-
12months
Quick Details
-
Size:
-
3.5"
-
Case Material:
-
Aluminum
-
Internal Interface:
-
SATA
-
Brand Name:
-
ugreen
-
Model Number:
-
wm, CM
-
Place of Origin:
-
Guangdong, China
-
Model Description:
-
USB HDD Enclosurer Docking
-
Colors:
-
as picture
-
Interface Type:
-
USB / USB C
-
Funtion:
-
Fast speed surfing
-
Standard:
-
USB 3.0 / USB-C
-
Certification:
-
CE/FCC/RHOS
-
MOQ:
-
50
-
Package:
-
Retail Packing
-
Warranty:
-
12months

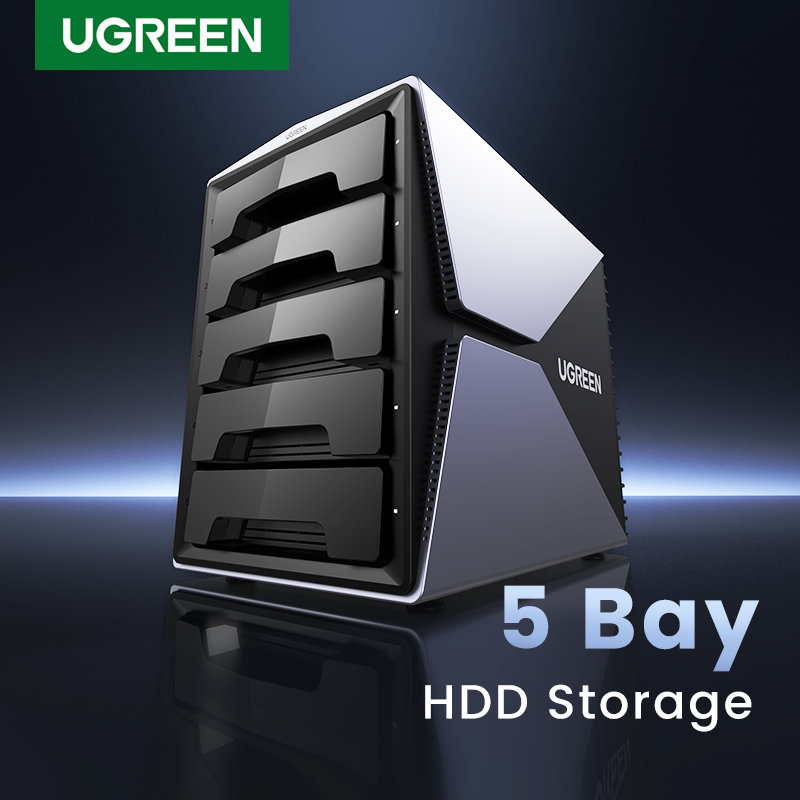

5-BAY 2.5/3.5" RAID Hard Drive Enclosure
5 bay RAID External Hard Drive Enclosure is a quick and simple way to expand storage capacity. Can install five 3.5 inch SATA HDD Hard drives. and a maximum total capacity of 90TB (16TB x 5) (Diskless)
8
8 Raid Modes
Support RIAD 0/RIAD 1/RAID 3/RAID 5/RIAD 10/PM/LARGE /CLONE models which can meet different work requirements
Up to 90TB
Support 90TB (18TB x 5 ) Large Capacity Storage .Single disk supports 18TB enterprise-class hard drive ;It is more safer for large-capacity hard disks to remove and store. (Support RAID, No NAS Function)
Multi- Scene use
Different modes meet all your needs
2-BAY2.5/3.5" RAID Hard Drive
Enclosure
4 RAID modes, Up to 36TB
4 Raid Modes
2-Bay hard drive enlosure
USB 3.0 Fast Speed
Built-in S.M.A.R.T and TRIM function Transfer
1GB file in 5 Seconds
7X24 Hours Stable Work
Built-in JMS576+JMB393 smart Chip excellent & stable performance
Safe Room for Datas
Inteqrated smart module,reduce the risk of data loss
Smart Auto-sleep
Protect Your SSD/HDD & Save tpower 15 min no operation
Good Dissipation & Silence
Internal fan and side hollow design help dissipate heat quickly
S
Two in One
With USBA+C toUSBC Cable,meet the needs of muiltiple euipment
Widely Compatibility
No need install drive,Support
Windows 11/10/8.1/7/xP、Linux、 Mac OS
Locker Design
Hidden handle & Drawer structure,Better push and pull experience
Powerful Power Supply
More stable and safer to work with DC12V/7.5A Power adapter
Solid And Reliable
Special design enhance stability to prevent hard drive damage
Tool-free Installation 3.5- inch Hard Drive
1.Pull out the set
2. Corresponding screw hole and tighten the screws
3. Push the set into the enclosure
Installation Steps 2.5-Inch Hard Drive
1. Pull out the set
2. Corresponding screw hole and tighten the screws
3. Pull the set into the enclosure
Light Display
5 LED light shows the working status
5
RAID Mode Detail
5-BAY Hard Drive Enclosure
* RAID 0
Faster read and write， largest capacity but low security.
When one of the hard drives fails, all of the data cannot be restored.
* RAID 1
High security, acceptable read and write with small capacity.
When one hard drive fails, other drives work normally; Then you will have to replace the broken drive(greater than or equal to the capacity of the original capacity), all of your lost data will be recovered automatically.
* RAID 3
Set one disk as the parity disk,and allo the other data disks.
When one data drive fails,the original data can be recovered by making use of the remaining data and the parity info.When two drives fail at the same time,all of the data will be unrecoverable.
* RAID 5
Data and parity info are restored respectively on different disks，and data and its corresponding parity info are on different drives.
When one of the drives fails,the original data can be recovered by making use of the remaining data and the parity info.hen two drives fail at the same time,all of the data will be unrecoverable.
* RAID 10
Take the min.capacity disk at the main one,then clone to the other disks,all of the disks share the same data.When one disk fails,all the others will not be affected.
* Clone
Two disks form a RAID 1,then two sets of RAID form a RAID 0.When two disks fail at the same time but they are not in the same RAID 1,then the data can still be readable.
* Large
All hard drives form a big dirve,when one of them fails,all of your data will be unrecoverable.
* PM
When one disk fails,all the others will not be affected.
PS：The default mode of the product is PM mode Switch back to PM mode first when you need to change modes,then switch to the RAID mode you prefer.
Product Specification
Brand： |
UGREEN |
Model： |
CM292 |
Model Name： |
5-BAY 2.5/3.5"hard drive Enclosure |
Type Function： |
USB C-SATA |
Chip： |
JMS576+JMB393 |
Function： |
S.M.A.R.T+ TRIM |
Material： |
ABS |
Color： |
Black |
Cable Lenght： |
100cm USB A+C to USB Cable |
Power adapter： |
DC12V/7.5A |
Output： |
USB3.0 |
Suitable： |
2.5/3.5 inchs SATA HDD/SSD |
Weight： |
3400g |
Size： |
L249xW151xH205(mm) |
Package： |
Ugreen retail box |
What's in the Box
1*5-Bay 3.5 raid enlosure
2*Power adapter
3* Screws
4*Power adapter
5*USB-A+C to USB-C cable
6*User manual
7*Warranty card
