Quick Details
-
Panel Dimensions:
-
500MMx718MM
-
Panel Efficiency:
-
16%
-
chip type:
-
CIGS
-
power:
-
23w
-
short-circuit current:
-
4A
-
open-circuit voltage:
-
10.6V
-
current at PMPP:
-
3.5A
-
voltage at PMPP:
-
8.6V
-
loading grade:
-
2400Pa
-
waterproof grade:
-
ip67
-
fire-proof grade:
-
A
-
hail-proof grade : working temperature:
-
level 4 (ANSI FM 4473) -40°C to +85°C
Quick Details
-
Brand Name:
-
DTEC
-
Model Number:
-
RH-30W
-
Place of Origin:
-
China
-
Panel Dimensions:
-
500MMx718MM
-
Panel Efficiency:
-
16%
-
chip type:
-
CIGS
-
power:
-
23w
-
short-circuit current:
-
4A
-
open-circuit voltage:
-
10.6V
-
current at PMPP:
-
3.5A
-
voltage at PMPP:
-
8.6V
-
loading grade:
-
2400Pa
-
waterproof grade:
-
ip67
-
fire-proof grade:
-
A
-
hail-proof grade : working temperature:
-
level 4 (ANSI FM 4473) -40°C to +85°C

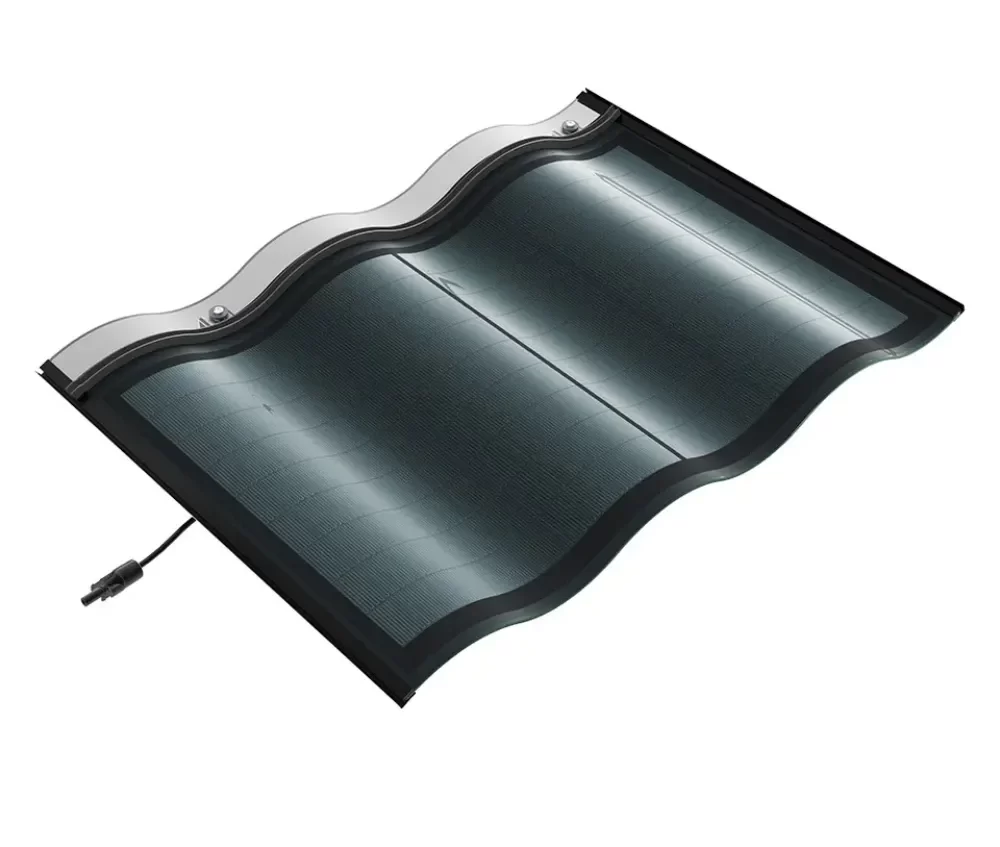

Products Description
Details Images
Product Paramenters
|
item
|
value
|
|
|
length:
|
500mm
|
|
|
width:
|
718mm
|
|
|
arch height:
|
41mm
|
|
|
weight:
|
10KG
|
|
|
color:
|
black，gray
|
|
|
junction box:
|
39*46*16.6 (mm) IP67
|
|
|
cable type:
|
2.5mm solar cable 450 (+10/-0) mm
|
|
|
cable connector:
|
pv connector
|
|
|
Physical parameters
|
|
|
|
chip type:
|
CIGS
|
|
|
power:
|
30W
|
|
|
short-circuit current:
|
4A
|
|
|
open-circuit voltage:
|
10.6V
|
|
|
current at PMPP:
|
3.5A
|
|
|
voltage at PMPP:
|
8.6V
|
|
|
Electrical parameters
|
|
|
|
loading grade:
|
2400Pa
|
|
|
waterproof grade:
|
IP67
|
|
|
fire-proof grade:
|
A
|
|
|
hail-proof grade: working temperature:
|
level 4 (ANSI FM 4473)
|
|
|
|
-40°C to +85°C
|
|
