Quick Details
-
Controller Type:
-
MPPT
-
Special Features:
-
Type C, RV Port
-
Model Number:
-
AL-300W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SNADI
-

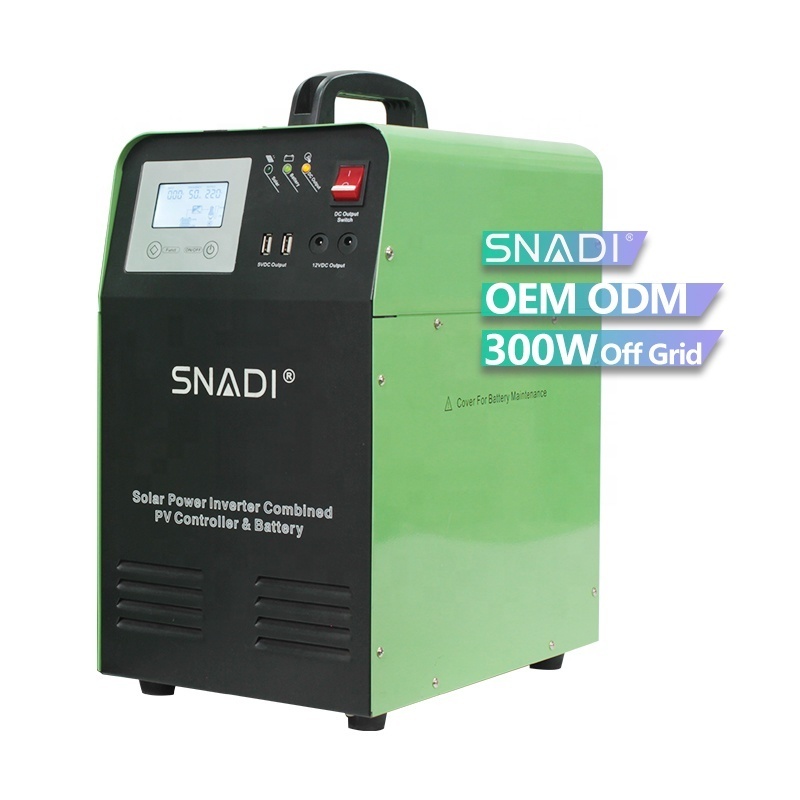

Product name:
-
Solar power generator
-
RATED output POWER:
-
300W
-
Application:
-
home solar system
-
Inverter type:
-
Pure Sine Wave
-
Surge Power:
-
900W
-
Efficiency:
-
98%
-
Maximum PV input:
-
150VDC
-
Battery Capacity:
-
12V 55AH
-
System Type:
-
Off-grid Solar Power Generation
-
Charge current:
-
30A
Quick Details
-
Power Source:
-
Solar Panel
-
Battery Type:
-
Lead-Acid
-
Inverter Type:
-
Pure Sine Wave
-
Controller Type:
-
MPPT
-
Special Features:
-
Type C, RV Port
-
Model Number:
-
AL-300W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SNADI
-
Product name:
-
Solar power generator
-
RATED output POWER:
-
300W
-
Application:
-
home solar system
-
Inverter type:
-
Pure Sine Wave
-
Surge Power:
-
900W
-
Efficiency:
-
98%
-
Maximum PV input:
-
150VDC
-
Battery Capacity:
-
12V 55AH
-
System Type:
-
Off-grid Solar Power Generation
-
Charge current:
-
30A
OUR
ADVANTAGES
Understanding the product from multiple angles
MULTIPLE
ANLES
Understanding the product from multiple angles
300W - 1500W Power
Easy to install
Portable design with handle
Low frequency hybrid inverter with
battery inside
PACKAGING & ACCESSORIES
professional Solar Power System Manufacturer
①Open the package, inspect product accessories,
including:1 host,1 piece user manual
②Inspect whether the machine have been damaged during the transport or not, If it have some damage, don’t start the machine, please contact us.
INTERNAL DETAILS
PRODUCT DETAIL
HELP YOU CONTROL EVERY DETAIL
The back panel illustration
PRODUCT ADVANTAGES
TECHNICAL INDEXES
|
Mode: AL
|
|
0.3kW/12V
|
0.5kW/12V
|
0.5kW/24V
|
1kW/24v
|
1.5kW/24V
|
|||||
|
Inverter |
Battery voltage
|
12v
|
|
24v
|
|
|
|||||
|
|
Built-in battery specification
|
1*55Ah/12V
|
|
2*55Ah/12V
|
|
4*55Ah/12V
|
|||||
|
|
Rated power
|
300W
|
500W
|
500W
|
1000W
|
1500W
|
|||||
|
|
Output voltage
|
110/220VAC
|
|
|
|
|
|||||
|
|
Output frequency
|
50/60HZ
|
|
|
|
|
|||||
|
|
Output waveform
|
pure sine wave
|
|
|
|
|
|||||
|
Charge by a mains supply |
Rated voltage
|
110/220V AC-*("*"mean an optional function)
|
|
|
|
|
|||||
|
|
Charge current
|
10A(maximum)-*(*means an optional function)
|
|
5A (maximum)-*(*means an optional function)
|
|
|
|||||
|
solar input |
Maximum power
|
≤25V
|
|
≤50V
|
|
|
|||||
|
|
Voltage of overcharge protection
|
10-25V
|
|
20-50V
|
|
|
|||||
|
|
Rated charge current
|
30A
|
|
|
|
|
|||||
|
|
Maximum power
|
360Wp
|
|
720Wp
|
|
|
|||||
|
|
Voltage of overcharge protection
|
14.2V
|
|
28.4V
|
|
|
|||||
|
|
Voltage of overcharge recovery
|
14.0V
|
|
28.0V
|
|
|
|||||
|
|
Voltage of floating charge
|
13.7V
|
|
27.4V
|
|
|
|||||
|
DC output |
Voltage of high-voltage protection
|
16V
|
|
32V
|
|
|
|||||
|
|
Voltage of high voltage recovery
|
15.2V
|
|
30.4V
|
|
|
|||||
|
|
Voltage of low voltage recovery
|
12.6V
|
|
25V
|
|
|
|||||
|
|
Voltage of lower voltage protection
|
11V
|
|
22V
|
|
|
|||||
|
|
5V DC USB output port
|
2one/max 2A
|
|
|
|
|
|||||
|
|
12V DC output port
|
2 DC ports + backboard 12V terminal block (maximum 8A)
|
|
|
|
|
|||||
|
Starting temperature of the exhaust fan
|
|
>45°C
|
|
|
|
|
|||||
|
Ambient temperature for operation
|
|
0 to 40°C
|
|
|
|
|
|||||
|
Ambient temperature for storage
|
|
-25 to 55°C
|
|
|
|
|
|||||
|
Operation/storage condition
|
|
0-90% (no condensation)
|
|
|
|
|
|||||
CUSTOMER REAL SHOT
professional Solar Power System Manufacturer
Foshan SNAT Energy Electrical Technology Co.,Ltd.
Foshan SNAT Energy Electrical Technology Co.,Ltd. is established in 2004,As a world's leading supplier for solutions for slsctric energy and new energy
SNAT has powerful strength and is emerged infield of solar inverter,solar inverters, solar planels, batteries with built-in sola r controller, solar charge controller, UPS, witch are used for household, telecommunication, electricity, infrastrucure and industrial makets.
OUR CERTIFITACE
professional Solar Power System Manufacturer
EXHIBITION
professional Solar Power System Manufacturer
Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us
Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.
