Quick Details
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kisen
-
Year:
-
2023
-
Voltage:
-
220/380/400
-
Dimension(L*W*H):
-
240*160*165cm
-
Hollow part volume:
-
1.5L
-
Clamping Force (kN):
-
400
-
Power (kW):
-
6
-
Weight (KG):
-
1200 KG
-
Name:
-
hz880 semi automatic pet blowing machine
-
Material:
-
PET
-
Machine type:
-
Semi-automatic Bblowing Machine
-
Capacity:
-
1000-2000BPH
-
blowing mould:
-
4 cavity
-
Cylinder:
-
SMC
-
Production Capacity (BPH):
-
2000 BPH
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
Quick Details
-
Neck Diameter(mm):
-
30 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
350 mm
-
Bottle Volume(ml):
-
1500 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kisen
-
Year:
-
2023
-
Voltage:
-
220/380/400
-
Dimension(L*W*H):
-
240*160*165cm
-
Hollow part volume:
-
1.5L
-
Clamping Force (kN):
-
400
-
Power (kW):
-
6
-
Weight (KG):
-
1200 KG
-
Name:
-
hz880 semi automatic pet blowing machine
-
Material:
-
PET
-
Machine type:
-
Semi-automatic Bblowing Machine
-
Capacity:
-
1000-2000BPH
-
blowing mould:
-
4 cavity
-
Cylinder:
-
SMC
-
Production Capacity (BPH):
-
2000 BPH
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support

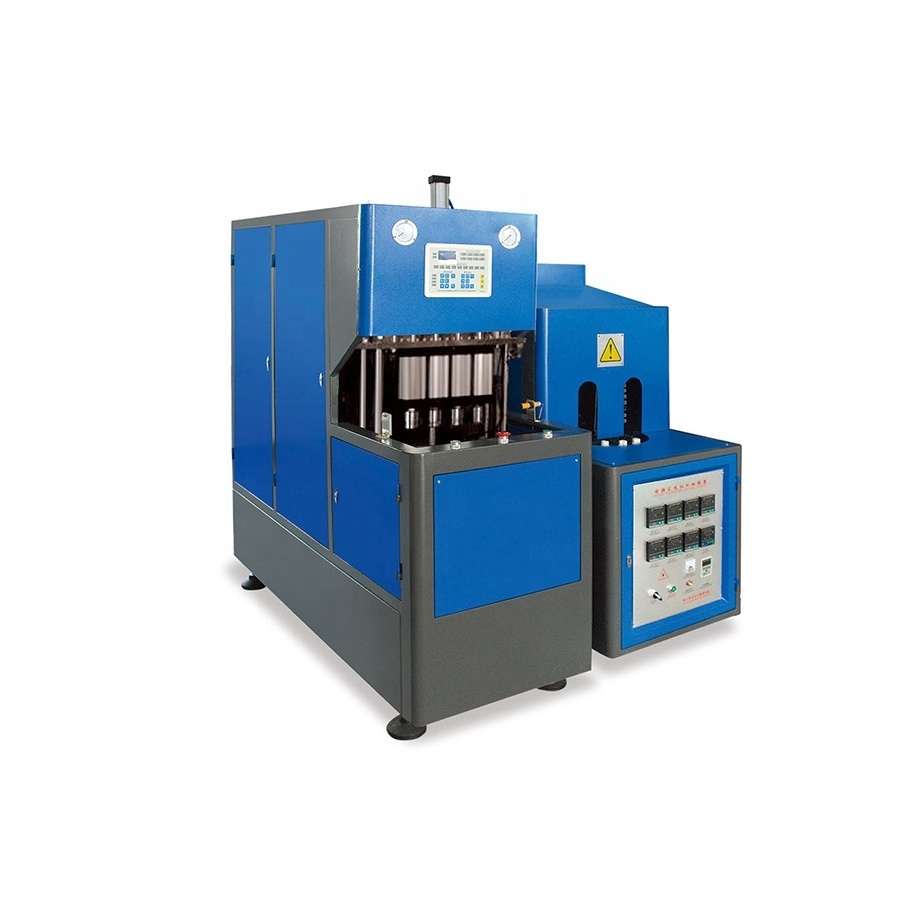

HZ880 semi automatic pet blowing machine
hz880 semi automatic pet blowing machine is suitable for producing PET plastic containers and bottles from 5L to 10L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Adopting double crank to adjust mould, heavy locking mould, stable and fast.
*Adopting infrared oven to heat the preform, the preform rotated and heated equally.
*The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated in the step-by-step mode and the semi-auto mode.
*The hz-880 semi automatic pet blowing machine is small with low investment, easy and safe to operate by one person.
|
Main parameter : |
||
|
Model |
hz880 semi automatic pet blowing machine |
|
|
Container |
Product material |
PET |
|
|
Volume |
0.1 L-1L |
|
|
Theoretical output |
1 5 00- 18 00 PCS/H |
|
|
B ottle height |
2 50 mm |
|
|
Preform inner diameter |
6mm |
|
Moulding |
Max.mould plate Dimenstion (L x W) |
50 0x 27 0 mm |
|
|
Max.mould thickness |
20 0 mm |
|
|
Clamping force |
180KN |
|
|
Mould opening stroke |
210mm |
|
Machine size and weight |
Main machine (L x W x H) |
200 0x 100 0x 2000mm |
|
|
Main machine weight |
65 0 Kg |
|
|
Heater (L x W x H) |
2200 x6 60 x1 600mm |
|
|
Heater weight |
30 0 Kg |
|
|
Power |
25.6kw |
hz-880 semi automatic pet blowing machine is the latest high output semi-automatic PET blow molding machine. Comparing to the traditional machine design, due to the new concept of automatic bottle discharging unit, the patented heating system.The hz-880 semi automatic pet blowing machine requires less labor and reducing the work intension for the operator.
Comparing to the output of normal manual blow molding machine,this is an outstanding improvement in the PET bottle blow molding industry.
we also provide this blower with full automatic prefrom loading system ,if you have this request ,please let me know it !
|
Main part: |
||
|
Pneumatic part |
Valve |
SMC/Airtech/FESTO |
|
|
Cylinder |
SMC/Airtech/FESTO |
|
Electric part |
PLC |
LG/SIEMENS |
|
|
Operating system |
LG/SIEMENS |
|
|
Relay |
SCHNEIDER |
|
Note |
All of the electrical components adopts CE, UL , CCC approved international advanced high-tech product. |
|
2. is there complete machine include bottle mould and air compresor ?
Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..
3.can we get extra bottle mould ?
Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .
4.What is the language of the PLC and touch button ?
Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .
5.can you help us with the shipment of this machine ?
Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please contact John for the freight , we will give you the best price we can .
