* Extremely thin as 0.2mm
* Extrmely light in weight
* Etched foil heating wires to improve 50-80% lifespan
* Strong Resistant to Chemical/OIl Medium
*Fast and precise heating
*Low voltage low ohm value heater film, e.g. 5V, 12V, 24V
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Songtai
-
Dimension(L*W*H):
-
packed, customized
-
Weight:
-
0.1 KG
-
Model Number:
-
Kapton Polyamide Film Heater
-
Power(W):
-
1-3W/cm2
-
Certification:
-
ROHS and CE
-
Shape:
-
Round, Square,Ring etc custom shape
-
Advantage:
-
move cleanly without adhesive residue
-
Thickness:
-
0.2-0.3 mm
Quick Details
-
Type:
-
Flexible Heater
-
Power Source:
-
Electric
-
Voltage:
-
220v and can be customized, 12v/24v/220v/240v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Songtai
-
Dimension(L*W*H):
-
packed, customized
-
Weight:
-
0.1 KG
-
Model Number:
-
Kapton Polyamide Film Heater
-
Power(W):
-
1-3W/cm2
-
Certification:
-
ROHS and CE
-
Shape:
-
Round, Square,Ring etc custom shape
-
Advantage:
-
move cleanly without adhesive residue
-
Thickness:
-
0.2-0.3 mm
Product Description

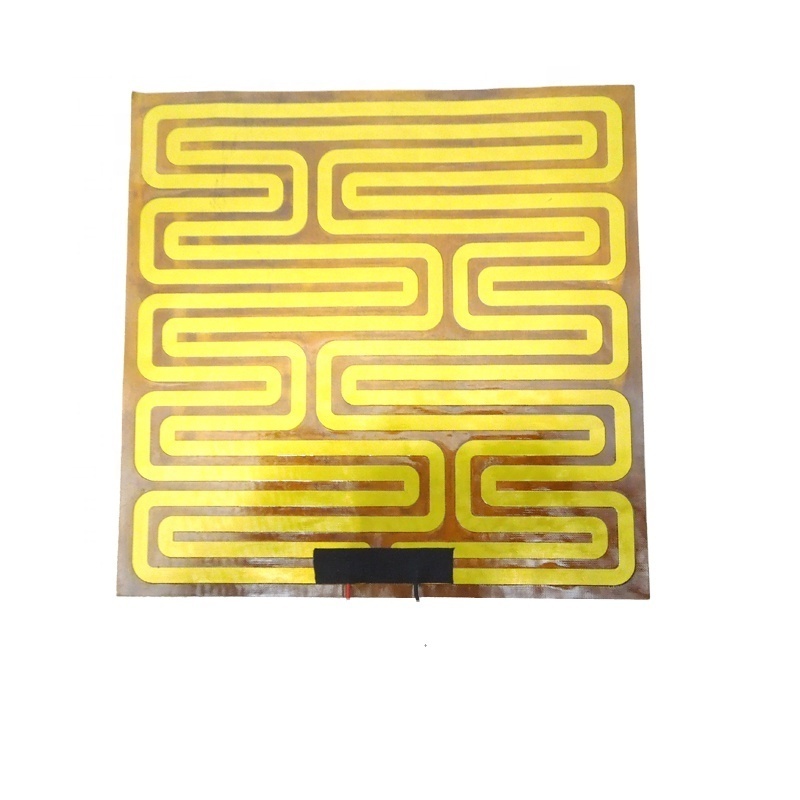

220v Flexible Polyimide Film Heater Electric Kapton Foil Heater
Polyimide (Kapton) film
is an organic material with very high dielectric capability, thin flexible profile and low
thermal mass, while providing superior resistance to most solvents, acids, and radiation.
Being transparent, Polyimide (Kapton) heater allows easy visual inspection of the internal foil circuit structure.
Foil Element
Polyimide (Kapton) heaters make use of very thin (e.g. 50μm) etched metal (usually nickel based alloy) foil as resistance element. The resistance pattern to be etched is designed in CAD and transferred to the foil, which is then processed through acid spray to produce the desired resistance pattern.
Technical Data Sheet
|
Max. element temp
|
220 (428) .°C, (°F)
|
Dielectric strength at 20°C
|
25 ASTM KV/m
|
|
Bending radius
|
≥0.8mm
|
Dielectric
|
> 1000V/min
|
|
Wattage Density
|
≤ 3.0 W/cm2
|
Watt tolerance
|
≤ ±5%
|
|
Insulation
|
> 100M ohm
|
Thickness
|
≤0.3mm
|
|
Temperature Sensor
|
RTD / film pt100
|
Thermistor / NTC
|
thermal switch etc
|
|
Adhesive backin
|
silicone based PSA
|
Acrylic based PSA
|
polyimide based PSA
|
|
Lead wires
|
Silicone rubber cables
|
Fiberglass insulated wire
|
different plug set / termination available
|
Features
Application
* Medical diagnostic instruments: Heat sample trays, * * * Reagent bottles, etc.
* Stabilize optoelectronic components
* Test or simulate integrated circuits
* Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD's
* Protect Aircraft electronic and mechanical devices in cold weather/area.
* Stabilize optoelectronic components
* Test or simulate integrated circuits
* Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD's
* Protect Aircraft electronic and mechanical devices in cold weather/area.
Spare Parts
3M Adhesives
Thermal Switch 20-200 Deg C
Thermistors
Digital Thermostat
PT100 wires
USB Connectors
