Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TENET
-
Card Material:
-
Paper/PVC/mylar cards
-
Item:
-
High quality Manufacturer RFID Card Vending Machine
-
Card Storage:
-
150,can add 2-3pcs extra hopper(one can add 100pcs card)
-
Control Interface:
-
RS232/TTL
-
Operating voltage:
-
24VDC (max current 2A, static current 0.1A)
-
Operating temperature:
-
-20°C to 85°C
-
Operating humidity::
-
30-90% (comparatively)
-
Use condition:
-
install in bin
-
Card available::
-
width: 54+/-0.5mm Length: 85+/-0.5mm
-
Thickness:
-
0.3-2.5mm (adjustable)
Quick Details
-
Type:
-
Vending Machines
-
After-sales Service Provided:
-
Video technical support, Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TENET
-
Card Material:
-
Paper/PVC/mylar cards
-
Item:
-
High quality Manufacturer RFID Card Vending Machine
-
Card Storage:
-
150,can add 2-3pcs extra hopper(one can add 100pcs card)
-
Control Interface:
-
RS232/TTL
-
Operating voltage:
-
24VDC (max current 2A, static current 0.1A)
-
Operating temperature:
-
-20°C to 85°C
-
Operating humidity::
-
30-90% (comparatively)
-
Use condition:
-
install in bin
-
Card available::
-
width: 54+/-0.5mm Length: 85+/-0.5mm
-
Thickness:
-
0.3-2.5mm (adjustable)
Manufacturer RFID Card Vending Machine /Card Dispenser For Parking lot access control system
Instructions
It is a classical mechatronics product, which has become into industrial standard actually. Its usability and reliability get from customers’ long time suggestion and manufacturer’s improvement and accumulation. TCD card machine is mainly used in parking entrance card dispenser, phone card automatic vending machine, ticket vending machine, all kinds of smart card vending and so on.
Main technical data
- Operating voltage: 24VDC (max current 2A, static current 0.1A)
- Operating temperature: -20°C to 85°C
- Operating humidity: 30-90% (comparatively)
- Use condition: install in bin
- Card available: width: 54+/-0.5mm
- Length: 85+/-0.5mm
- Thickness: 0.3-2.5mm (adjustable)
- Card material: Paper or Polyester card
- Net weight of card dispenser: 2.0kg (including the briquette)
- Time of issuing: max0.5s
- Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed
Control Interface
This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm) socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.
Measures of TCD-720Card Dispenser

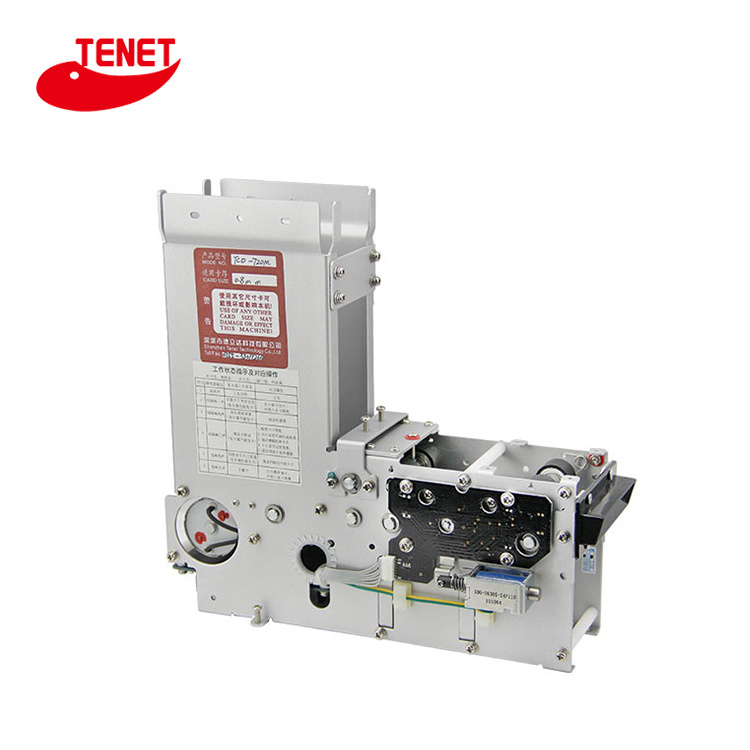

Pictures of TCD-720Card Dispenser
Certification
