Quick Details
-
Brand Name:
-
Hiyoung
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
590*350*722
-
Power (kW):
-
1.5
-
Weight (T):
-
0.3
-
motor:
-
1.5kw-4,single phase
-
usefulness:
-
Multipurpose shredder
-
input speed:
-
25rpm
-
input torque:
-
400Nm
-
blade number:
-
21 pieces
-
Within the cavity size:
-
180*190mm
-
material quality:
-
High quality stainless steel
-
Height of the feeding port above:
-
200mm
-
Product advantages:
-
Oil proof and waterproof discharge evenly
-
Efficiency:
-
High production capacity shredder
Quick Details
-
Max.Production Capacity (kg/h):
-
5000
-
Place of Origin:
-
Henan, China
-
Production Capacity (kg/h):
-
4000 - 5000 kg/h
-
Brand Name:
-
Hiyoung
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
590*350*722
-
Power (kW):
-
1.5
-
Weight (T):
-
0.3
-
motor:
-
1.5kw-4,single phase
-
usefulness:
-
Multipurpose shredder
-
input speed:
-
25rpm
-
input torque:
-
400Nm
-
blade number:
-
21 pieces
-
Within the cavity size:
-
180*190mm
-
material quality:
-
High quality stainless steel
-
Height of the feeding port above:
-
200mm
-
Product advantages:
-
Oil proof and waterproof discharge evenly
-
Efficiency:
-
High production capacity shredder
Product Description
advantages
1.
Oil and water proof, uniform discharge
2. It is suitable for shredding strong winding materials, allowing a small amount of light and thin metal objects in the materials
3. Low cost of tool use and maintenance
4. Under the same power condition, the price of double axis shredder, three axis shredder and four axis shredder is relatively low
5. Easy to change the tool
6. The material size can be adjusted according to the size of the screen aperture
2. It is suitable for shredding strong winding materials, allowing a small amount of light and thin metal objects in the materials
3. Low cost of tool use and maintenance
4. Under the same power condition, the price of double axis shredder, three axis shredder and four axis shredder is relatively low
5. Easy to change the tool
6. The material size can be adjusted according to the size of the screen aperture
Introduction

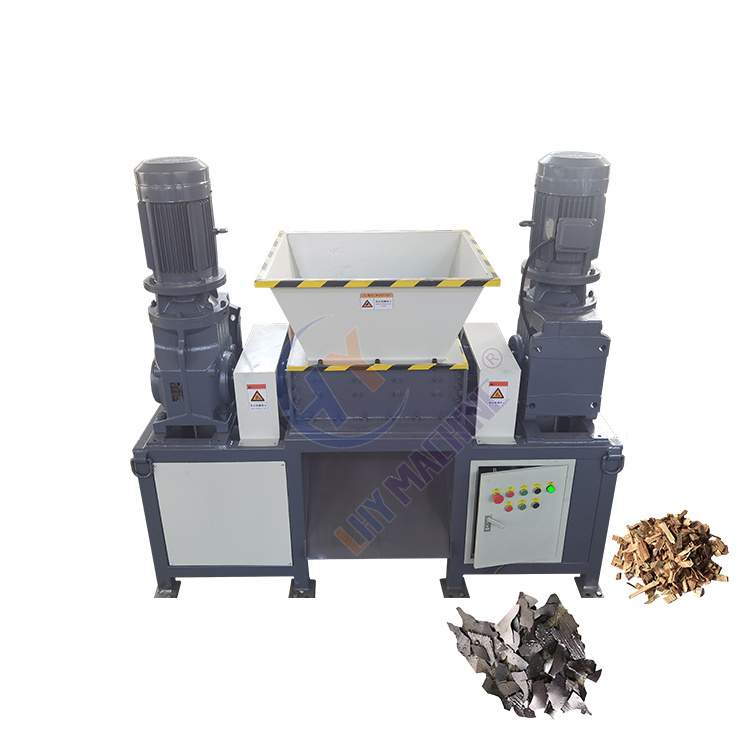

Shredder is mainly composed of blade spindle,fixed knife, carrying box, box support,feeding system,hydraulic pushing system,power system, electrical control system. Mainly used for shredding wood,rubber,plastic paper and other waste materials。
Can tear apart solid objects such as plastic, rubber, large tires, large nylon materials, rubber head materials, car bumpers, large fish nets, large pipes, fibers, paper, wood, electrical components, cables, PET bottles, cardboard, circuit boards, wood, plastic barrels.
|
model
|
HY-DDS
|
|
motor
|
1.5kw—4，single phase，220v,50Hz
|
|
Speed reducers
|
K47
|
|
input speed
|
25rpm
|
|
input torque
|
400Nm
|
|
Diameter of input shaft
|
Φ35
|
|
Blade specification and material
|
Φ90*8,9CrSi
|
|
blade number
|
21 pieces
|
|
Within the cavity size(mm)
|
180*190
|
|
Width of outlet(mm)
|
280
|
|
Height of the feeding port above the ground(mm)
|
200
|
|
weight
|
120kg
|
|
L*W*H
|
590*350*722
|
|
electrical machinery
|
1.5KW-4(220V，50HZ)
|
3KW-4(380V，50HZ)
|
4KW-4(380V，50HZ)
|
7.5KW-4(380V，50HZ)
|
4KW-4(380V，50HZ)
|
7.5KW-4，(380V，50HZ)
|
|
Speed reducer
|
JL1
|
JL2
|
JL3
|
JL4
|
JL3
|
JL4
|
|
Blade specifications
|
Φ90*8
|
Φ180*12
|
Φ180*15
|
Φ200*20
|
Φ180*15
|
Φ200*20
|
|
Number of blades
|
21
|
24
|
26
|
25
|
26
|
24
|
|
Hopper size
|
300*300*150
|
500*500*300
|
500*600*300
|
600*700*400
|
500*600*300
|
600*700*400
|
|
Machine dimensions (length * width * height)
|
600*400*730
|
1100*650*1350
|
1250*650*1450
|
1400*750*1600
|
1600*650*1450
|
1900*750*1600
|
