Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NSPV
-
Model Number:
-
4FBCF01-15
-
Insulation material:
-
PPE/PA
-
Rated current(Without fuse):
-
Max. Input:30A Max. Output:60A
-
Fuse Specification:
-
1A-50A
-
Rated voltage:
-
1500VDC
-
Maximum voltage:
-
8kV
-
Contact resistance:
-
≤0.25mΩ
-
Contact material:
-
Copper,Tin Plated
-
Degree of protection:
-
IP68
-
Rated Impulse voltage:
-
16kV
-
Safety degree:
-
II
Quick Details
-
Type:
-
Solar branch fuse connector
-
Application:
-
Power
-
Gender:
-
Female&male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NSPV
-
Model Number:
-
4FBCF01-15
-
Insulation material:
-
PPE/PA
-
Rated current(Without fuse):
-
Max. Input:30A Max. Output:60A
-
Fuse Specification:
-
1A-50A
-
Rated voltage:
-
1500VDC
-
Maximum voltage:
-
8kV
-
Contact resistance:
-
≤0.25mΩ
-
Contact material:
-
Copper,Tin Plated
-
Degree of protection:
-
IP68
-
Rated Impulse voltage:
-
16kV
-
Safety degree:
-
II

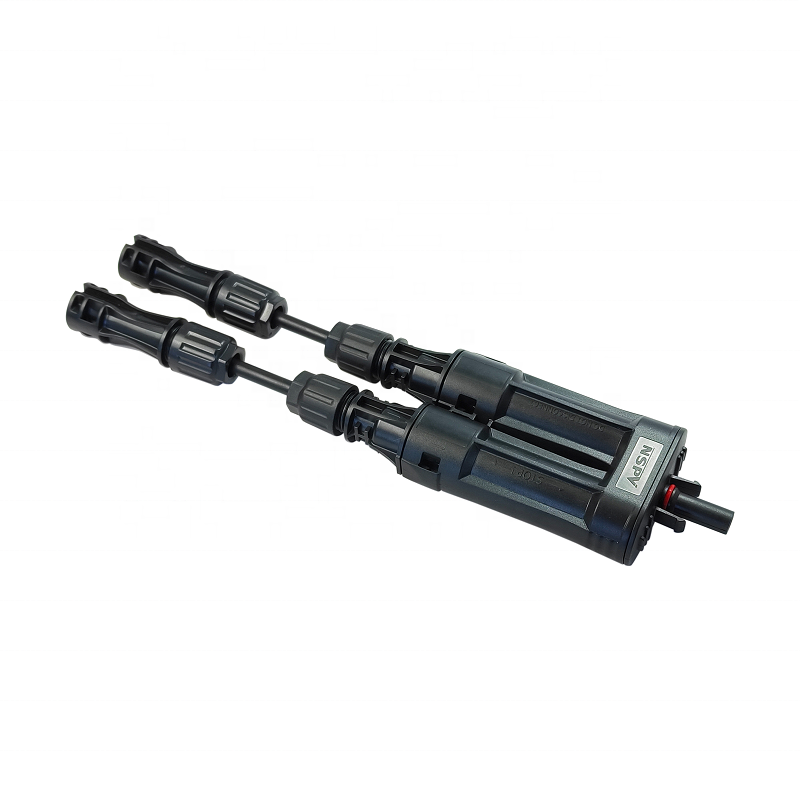

Wholesale Waterproof Solar Panel Male And Female Cable Connectors
Male And Female Cable Connectors
| 4FBCF01-15 | ||||
| Product description: | ||||
| Insulation material | PPE/PA | |||
| Rated current(Without fuse) | Max. Input:30A Max. Output:60A | |||
| Rated voltage | 1500VDC | |||
| Maximum voltage | 8kV | |||
| Contact resistance | ≤0.25mΩ | |||
| Contact material | Copper,Tin plated | |||
| Degree of protection | IP68 | |||
| Rated Impulse voltage | 16kV | |||
| Fuse Specification |
1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A, 20A,25A,30A,32A,35A,40A,45A,50A |
|||
| Safety degree | II | |||
| Ambient temperature range | -40℃…+85℃(IEC) | |||
| Upper limiting temperature | 110℃(IEC) | |||
| Suitable cable cross sections | 4-10sqmm cable | |||
| Suitable for fuse size(mm) | 10*85/10/14*85 | |||
| Regulatory approval | TUV/CE(EN60269/EN62208) | |||
NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management, which provide key one-step solution with design, research and development, mass production and sales. The project of our company is divided into two major parts: Firstly, the design, integration , installation and maintenance of PV solar power station, as well as photovoltaic engineering procurement and construction(EPC). Secondly, the development, production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc., which are in line with TUV, CE and other relevant standards. The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others. " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation, social responsibility " is the consistent spirit for NSPV people .
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
Q: How can I trust you and your company?
A: Dongguan Newsun PV technology Co.,Ltd has been established for above 13 years, our product were sold in many countries with good feedback, good quality, competitive price which mostly have been approved by TUV, CE and other EU institutions. Furthermore, our company has passed ISO9001 quality management system certification, hold the high-tech enterprise certificate and a number of patents.
Q: What's your shipment method?
A: We can ship by express, air, sea and train. Normally we checked and compared, then provide customer the most proper shipment method.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by e-mail. We will reply within 24hrs.
Q: What's your contact information?
A: Our Add:12A,168Building,Henggangtou Industrial Zone, Xin'an Community, Chang'an Town, Dongguan City, Guangdong.
TEL: +86-769 85371660
QQ: 3438928451
WhatsApp: +8613532737519
Email: info(at)new-pv.com
Looking forward to your contact, thank you!
