Quick Details
-
Maximum Torque:
-
0.8N.m
-
Operating Speed:
-
24000rpm
-
Power:
-
2.2kw (1HP=735w)
-
Size:
-
80x224mm
-
Voltage:
-
220V/380V
-
Current:
-
10A
-
Cooling type:
-
Air Cooling
-
Collet:
-
ER20
-
Frequency:
-
400Hz
-
Lubrication:
-
Greese
-
Bearing Type:
-
2X7005C P4 DT and 2X7002C P4
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
6
-
Brand Name:
-
G-PENNY Machine
-
Maximum Torque:
-
0.8N.m
-
Operating Speed:
-
24000rpm
-
Power:
-
2.2kw (1HP=735w)
-
Size:
-
80x224mm
-
Voltage:
-
220V/380V
-
Current:
-
10A
-
Cooling type:
-
Air Cooling
-
Collet:
-
ER20
-
Frequency:
-
400Hz
-
Lubrication:
-
Greese
-
Bearing Type:
-
2X7005C P4 DT and 2X7002C P4
Product Description

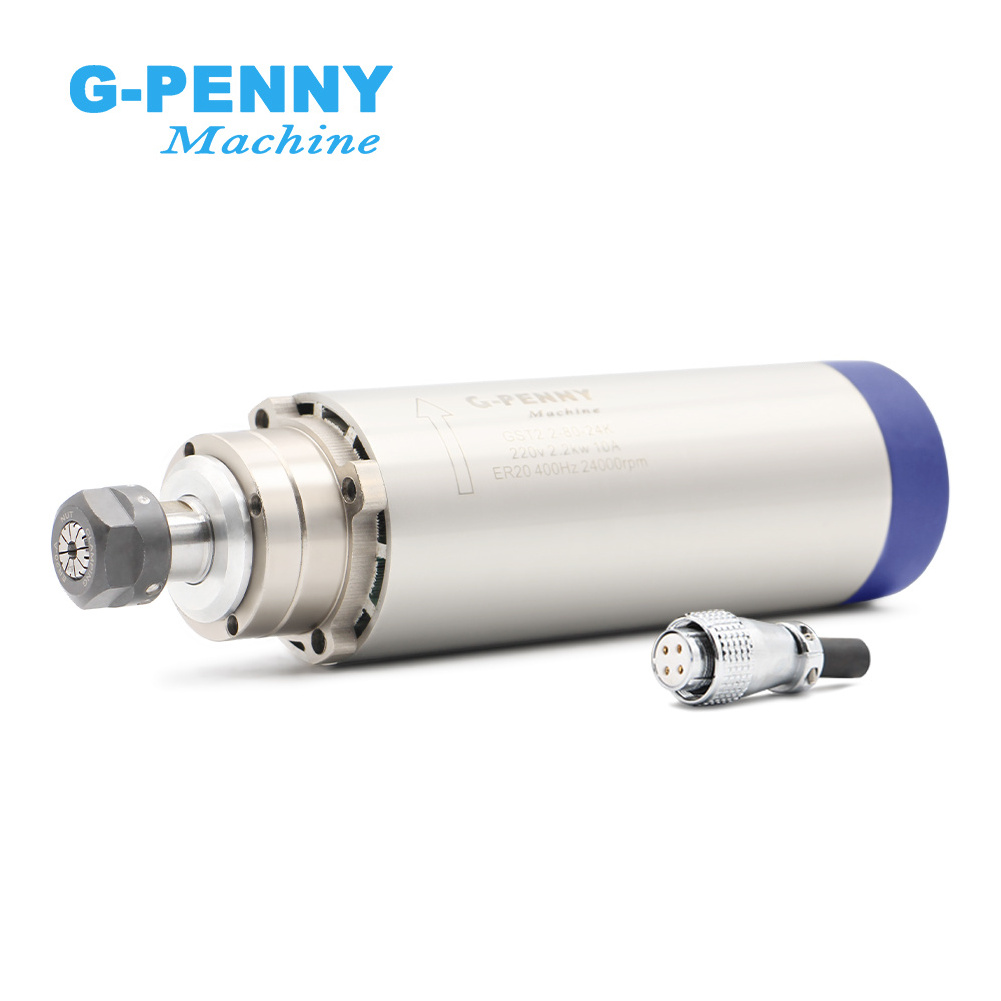

1 pcs -- 220v AC 2.2kw ER20 Air Cooled Spindle Motor 80mm 4 bearings
*
Size
:80x224mm
(Middle body diameter: 80mm x Length:224mm)
* Speed Ways :Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling :Air cooling
* Power Interface :Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
* Power :2.2kw
* Voltage :220v
* Current :10A
* Frequency :0-400Hz
* Speed : 0-24000rpm
* Runout Off :Less than 0.01mm
* Diameter(mm): 80
* Bearing Type : 2 x 7005 P4 DT & 2 x 7002 P4 DT
* 4pcs fully sealed angular contact bearings
* Collet : ER20
* Clip Knifediameter :13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
* Air Cooling ER20 collet chunk
* Grease Lubrication
* Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working. (Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
* Speed Ways :Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling :Air cooling
* Power Interface :Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
* Power :2.2kw
* Voltage :220v
* Current :10A
* Frequency :0-400Hz
* Speed : 0-24000rpm
* Runout Off :Less than 0.01mm
* Diameter(mm): 80
* Bearing Type : 2 x 7005 P4 DT & 2 x 7002 P4 DT
* 4pcs fully sealed angular contact bearings
* Collet : ER20
* Clip Knifediameter :13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
* Air Cooling ER20 collet chunk
* Grease Lubrication
* Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working. (Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
|
Size
|
Power
|
Voltage
|
Current
|
|
80x224mm
|
2.2kw
|
220v
|
10A
|
|
Frequency
|
Speed
|
Diameter
|
Collet
|
|
0-400Hz
|
0-24000rpm
|
80
|
ER20
|
* 4 P4 angular contact bearings,
2×7005C P4 DT&2×7002C P4 DT
,increase spindle life.
* ER20 collet nut,you can use ER20 collet kits for it.
* Carefull assembly make the spindle more precisional.
* Runout off 0.01mm.Coaxial degree less than 0.0025mm.
* Better appearance, after a long time using,still looks like new.
* We are the spindle manufacturer,we offer only best quality and best price to you.
* ER20 collet nut,you can use ER20 collet kits for it.
* Carefull assembly make the spindle more precisional.
* Runout off 0.01mm.Coaxial degree less than 0.0025mm.
* Better appearance, after a long time using,still looks like new.
* We are the spindle manufacturer,we offer only best quality and best price to you.
1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.
(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
If thespindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
* Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
* AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
* Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
* AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
* We will 100% guarantee security to the hands of the guests.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* Spindle from the production - assembly - test, and finally the perfect packaging .
Shipping Cost:
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
