Quick Details
-
Brand Name:
-
sAILI
-
Weight:
-
700kgs
-
Dimension(L*W*H):
-
2300*1450*1850mm
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Book box assembly machine
-
Function:
-
glue sparying and box assembling
-
Speed:
-
10-35PCS/Min
-
Material:
-
book type boxes ,eye shadow box ,ring box and some high-end gift boxes
-
Certification:
-
c/e
Quick Details
-
Voltage:
-
380V 50/60hz
-
Power:
-
4.8kw
-
Place of Origin:
-
China
-
Brand Name:
-
sAILI
-
Weight:
-
700kgs
-
Dimension(L*W*H):
-
2300*1450*1850mm
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Book box assembly machine
-
Function:
-
glue sparying and box assembling
-
Speed:
-
10-35PCS/Min
-
Material:
-
book type boxes ,eye shadow box ,ring box and some high-end gift boxes
-
Certification:
-
c/e

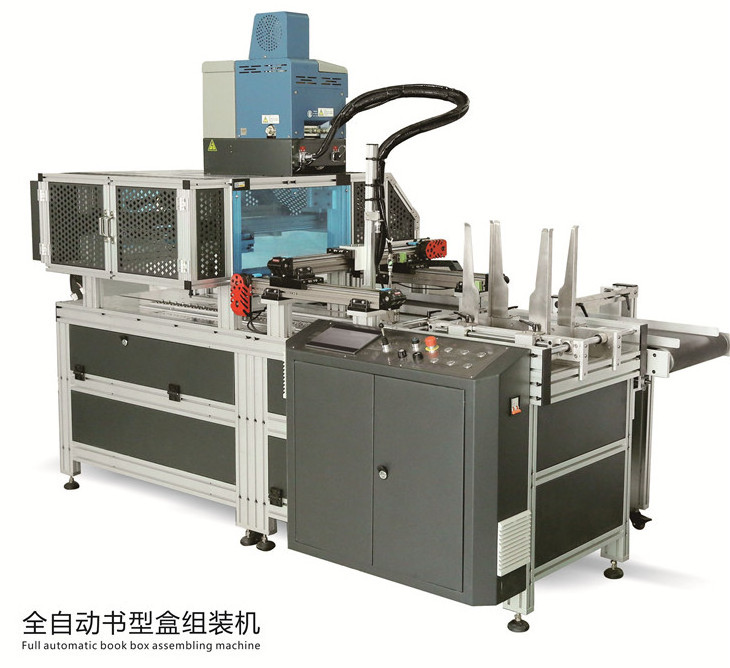

Automatic book box assembling machine SLZ -380/680
Product introduction
SLZ -380/680 is mainly used for assembling all kind of mobile phone boxes ,eye shadow box ,ring box and some high-end gift boxes .
Features:
1. The machine is easy and simple to operate ,stable performance,short time to exchange different product,easy to learn and understand.
2. Special designed gluing formula can sprayed with arbitrary graphics,the system has memory storage function,it’s needn’t to re-set gluing formula when you make the same products.
3. Fast assembling speed,high accuracy of positioning,the tolerance is ±0.3mm,the average speed can reach 600-20000PCS/Hour,it’s popular both in China and abroad.
4. In order to keep the products from transposition and cracking under the high temperature ,it can be equip with a extra cold gluing system,to ensure the quality and quantity of products ( hot gluing for positioning and cold gluing for reinforcing).
5. For assembling symmetrical eye shadow box or other box,it can be add a extra spraying gun with double gun heads for positioning and gluing at same time ,which can improve work efficiency.
Technical parameters:
|
Type |
SLZ -380 |
SLZ -680 |
|
Hard cover size |
Length:80-390mm Width:80-290mm |
Length:80-680mm Width:110-350mm |
|
Inner box size |
Length:45-300mm Width:45-280mm Height:5-70mm |
Length:80-350mm Width:100-350mm Height:5-90mm |
|
Way of gluing |
Single gluing / |
|
|
Positioning accuracy |
±0.3mm |
|
|
Working speed |
10-35PCS/Min |
10-30PCS/Min |
|
Air pressure |
0.5Mpa/500L/Min |
0.5Mpa/500L/Min |
|
Power |
220V/50-60HZ/4.8KW Gluer 2.36KW |
220V/50-60HZ/4.8KW Gluer 2.36KW |
|
PLC |
Panasonic |
Panasonic |
|
Touch screen |
Weinview |
Weinview |
|
Servo motor |
Panasonic |
Panasonic |
|
Guide rail module |
CCM |
CCM |
|
Spray gun |
Jingtai famous brand in China |
Jingtai famous brand in China |
|
Pneumatic components |
Airtac |
Airtac |
|
Frame material |
Aluminum profile |
Aluminum profile |
|
Weight |
700KGS |
900KGS |
|
Dimension |
2300*1450*1850mm |
3000*1550*185MM |
