Quick Details
-
Worktable Length:
-
220" / 5600mm
-
Worktable Width:
-
86.61" / 2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJINTUO
-
Model Number:
-
J-100
-
Warranty:
-
18 Months
-
Item Name:
-
ce approved high quality workshop rack workshop platform machine
-
Pulling Capacity:
-
10Ton/Tower
-
Certification:
-
CE&ISO
-
Chain Size:
-
12mm
-
Our Advantage:
-
OEM/ODM, Professional Manufacturer
-
Material:
-
Square Tube Steel
-
Post Working Range:
-
360 Degree
-
Mainly Market:
-
America, Europe and Asia
-
Function:
-
Car Body Collistion Reparing
-
car fitment:
-
Universal
Quick Details
-
Weight:
-
4400lbs / 2000KGS
-
Bench Height:
-
20.5"/520MM
-
Max. Lifting Capacity:
-
7700lbs / 3500kgs
-
Worktable Length:
-
220" / 5600mm
-
Worktable Width:
-
86.61" / 2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJINTUO
-
Model Number:
-
J-100
-
Warranty:
-
18 Months
-
Item Name:
-
ce approved high quality workshop rack workshop platform machine
-
Pulling Capacity:
-
10Ton/Tower
-
Certification:
-
CE&ISO
-
Chain Size:
-
12mm
-
Our Advantage:
-
OEM/ODM, Professional Manufacturer
-
Material:
-
Square Tube Steel
-
Post Working Range:
-
360 Degree
-
Mainly Market:
-
America, Europe and Asia
-
Function:
-
Car Body Collistion Reparing
-
car fitment:
-
Universal
Product Description
|

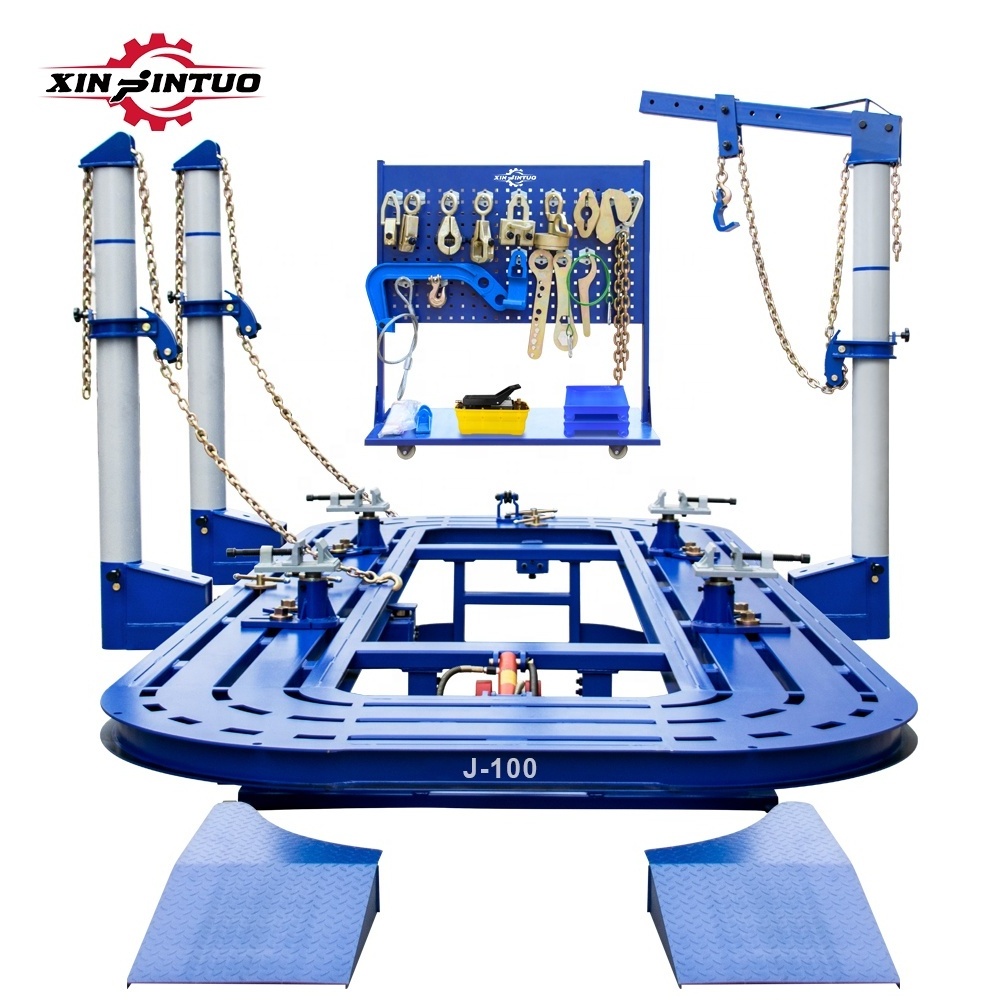

SPECIFICATIONS FOR J-100 AUTO BODY FRAME MACHINE
|
|
|
||
|
Length of the Platform
|
204"/5200mm
|
220"/5600mm
|
||
|
Width of the Platform
|
86.61"/2200mm
|
86.61"/2200mm
|
||
|
Height of the Platform
|
20.5"/520mm
|
20.5"/520mm
|
||
|
Air Supply Required
|
100-120PSI(0.6-0.8MPa)
|
100-120PSI(0.6-0.8MPa)
|
||
|
Hydraulic Power
|
10,000PSI(70MPa)
|
10,000PSI(70MPa)
|
||
|
Pulling Capacity of Tower
|
10-Ton(100KN)
|
10-Ton(100KN)
|
||
|
360°Range of Tower
|
360°
|
360°
|
||
|
Max Loading Capacity
|
7700lbs/3500kgs
|
7700lbs/3500kgs
|
||
|
Deck Platform Type
|
Square Tube Type
|
|
||
MAIN FEATURES
--Designed to service full-frame or uni-body typed vehicles
--Hydraulic tilt deck operation with 7,700 lb. lifting capacity
--Durable, heavy-duty constructions with powder coat finish
--Universal anchoring system with adjustable height pinch weld/clamp assemblies
--Clear Floor, 360 degree pulling capability
--Twin 10-ton round pull tower with telescoping tower heads
--Adjustable tower collars
--Quick disconnect hydraulic fitting & hose connection
--Drive-on ramps
--Hydraulic tilt deck operation with 7,700 lb. lifting capacity
--Durable, heavy-duty constructions with powder coat finish
--Universal anchoring system with adjustable height pinch weld/clamp assemblies
--Clear Floor, 360 degree pulling capability
--Twin 10-ton round pull tower with telescoping tower heads
--Adjustable tower collars
--Quick disconnect hydraulic fitting & hose connection
--Drive-on ramps
Details Images
Accessories Tools (For Choosing)
Product packaging
Our most professional packaging of frame machine
Plywood wooden box of frame machine
Transport of large trucks to the seaport
