- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
AHC15A
-
Max. Current:
-
16A
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KARINO
-
Model Number:
-
AHC15A
-
Max. Current:
-
16A
-
Certification:
-
CE
Specifications
* DIN rail installation
* Advanced pre-setting one week ago.
* Repeat programs with 16 times on/off settings.
* To-the-minute setting accuracy
* LCD displays real time to hour/minute and on/auto/off.
* Digital electronics general purpose time switch with daily and weekly programmable.

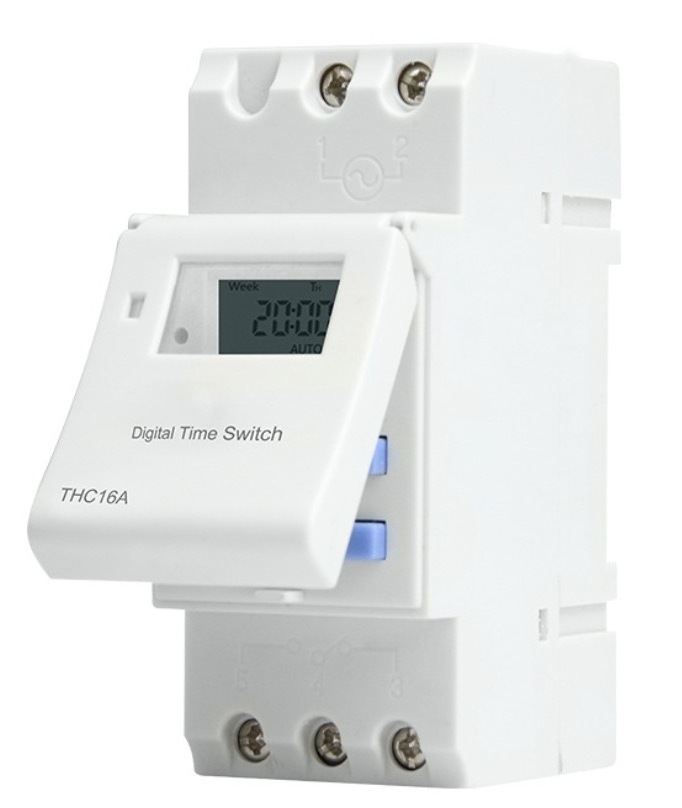

Time Switch Description
Digital Programmable Timer Switch
Weekly programmable time switch is designed with high performance microcomputer
chip, it can automatically switch on the ring on fixed time, and realize
automatic ring with max. 16 times group setting one day.
It is of the highest accuracy, reliability & durability.
Application of timer:
The time switch are widely used in many place to control the device working or stop working at the time you want.
Features:
- Din rail mounting
- 16 times setting /day
- working voltage can be customized
- ringing time range:1m--168h
Specifications:
| Time Switch Type | AHC15A |
| Working Voltage | 110VAC 220VAC 50/60HZ |
| Electric Power | 16A |
| Display | LCD |
| Time range | Day/ Week/ Hour/ Minute |
| Operation | 16 ON/OFF setting |
| Walking Erron | in 1minute |
| Installnation | screw / flush mounting |
| Relative Humidity | <95% |
| Bettery | Rechargalbe inside |
| Dimension | 67*36*64MM |
| Weight | 300g |
1. Sample:provide
2. OEM/ODM: avaliable
3. After-saled service: 2 years warranty.
If you have any need in 230 Volt AC Timer Switch , Pls feel free to contact me!
