Quick Details
-
Flow Rate:
-
1cfm
-
Meet the requirements:
-
ISO14644-1:2015
Quick Details
-
Brand Name:
-
Sujing
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Y09-310
-
Flow Rate:
-
1cfm
-
Meet the requirements:
-
ISO14644-1:2015

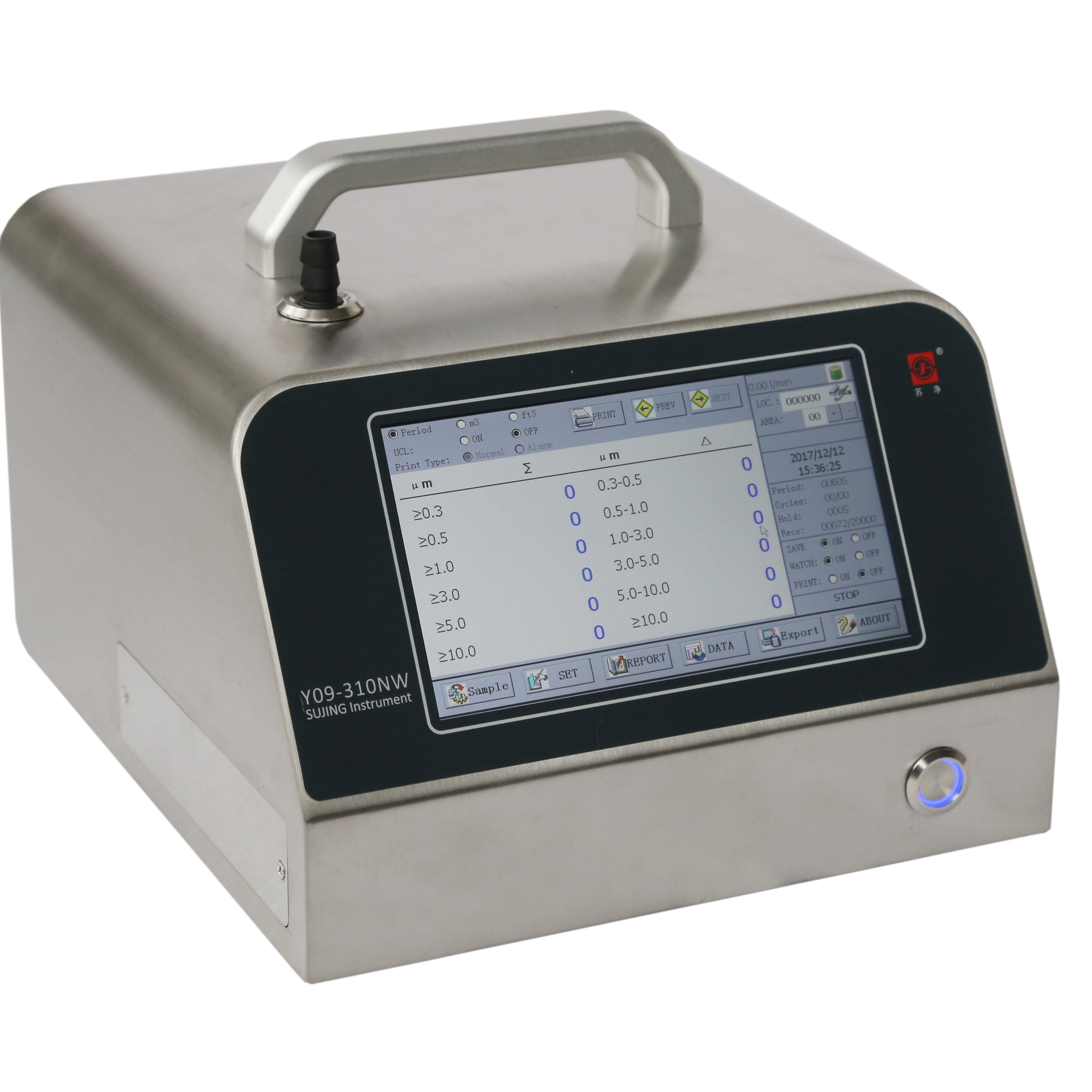

Y09-310NW
1CFM (28.3LPM)- Laser Particle Counter
The Model Y09-310NW Laser Particle Counter is used to detect the particles in the cleanroom. The instrument uses the laser diode as the light source. With LCD touch screen, it can measure six different size channels simultaneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
Features :
1. Sample volume
28.3 LPM (
1.0CFM)
.
2
. Simultaneously
display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
|
245*268*160 ( mm 3 ); (Wide*Deep*High) |
|
|
Display |
7 inch touch screen |
|
Weight |
3.5Kg |
|
Max. Consumption |
80W |
|
Power Source |
DC16.8V built-in Lithium Battery; AC 220V ± 10% |
|
Size Channels |
0.3, 0.5, 1, 3, 5, 10 μm |
|
Calculation |
95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
|
Flow Rate |
28.3L/min (Imported Pump) |
|
Sample Time |
6s---999999s (Selectable) |
|
Cycles |
0-99 |
|
Hold Time |
0-9999s |
|
Delay Time |
5-999s |
|
Zero Court |
<=10min |
|
Location |
1-99 |
|
Alarm |
ISO Class |
|
Printer |
Built-in Thermal Printer |
|
Data Storage |
20000Samples /300 Samples of UCL (With PC Software) |
|
Light Source |
Laser Diode (30,000 hours Mean Time Between Failures) |
|
Counting efficiency |
50% @ 0.3μm and 100% for particles > 0.45μm (ISO21501) |
|
Maximum Rated Particle Concentration |
35000 particles/L |
|
Operating Time |
More than 5.5 hours |
|
Environmental Temperature |
Temperature :10 -35 ℃ ; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Application
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
