Quick Details
-
Voltage:
-
220V/380V
-
No Load Speed:
-
0.5
-
Place of Origin:
-
China
-
Brand Name:
-
DELILAI
-
Model Number:
-
DL-D5
-
Heating System:
-
Electric Heating
-
Wall Panel:
-
EPS
-
Filter system:
-
Three-stage Filter System
Quick Details
-
Power:
-
37kw
-
External Size:
-
7000mmX4000mmX3500mm
-
Internal Size:
-
6900mmX3900mmX2800mm
-
Voltage:
-
220V/380V
-
No Load Speed:
-
0.5
-
Place of Origin:
-
China
-
Brand Name:
-
DELILAI
-
Model Number:
-
DL-D5
-
Heating System:
-
Electric Heating
-
Wall Panel:
-
EPS
-
Filter system:
-
Three-stage Filter System

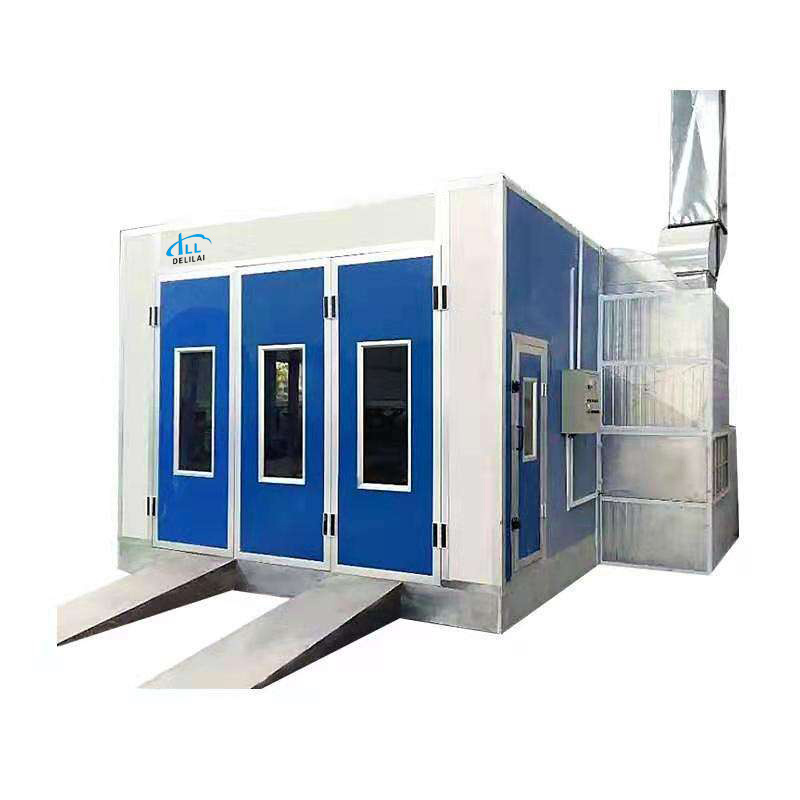

Product Description
Specification
|
Brand name
|
DELILAI
|
|
|
Product name
|
spray booth
|
|
|
External size
|
7000mmX4000mmX3500mm
|
|
|
Internal szie
|
6900mmX3900mmX2800mm
|
|
|
front door dimension
|
3000mmX2700mm
|
|
|
Noise
|
≤75db(A)
|
|
|
wind speed
|
0.25-0.3m/s
|
|
|
Voltage
|
415v/3phase/50HZ
|
|
|
Wall panel
|
50mm foam plate sealing steel strip, 0.376mm iron sheet, 10kg, no lower difference, the outer side of wall panel shall be covered
with film, front door of sheet metal door, side door: 700 * 2000mm |
|
|
Base
|
2 layers of steel grating, bearing 4 tons, without lower tolerance, 3 layers of checkered plate
|
|
|
Loading platform
|
two loading platforms, 1.8m * 0.75m
|
|
|
Box
|
0.8mm iron sheet, 4 * 4mm square tube frame, with isolation, 2.4m long * 1.2m wide
|
|
|
Inlet fan
|
2 sets of 3kw national standard copper core fans
|
|
|
Exhaust fan
|
1 set of 4kw national standard copper core fan
|
|
|
Filter cotton
|
Primary filter cotton, 600g top cotton, bottom cotton
|
|
|
Heating system
|
oil heating: 1 set of G20 combustion engine in Riyadh, Italy, with a stainless steel heat exchanger with backburning protection,
304 steel, argon arc welding, paint spraying, and paint baking converters. 20N electric damper, Belimo NMU230 |
|
|
Lighting system
|
ceiling lamp: 8x4 pieces=32Pcs * 16W LED
|
|
|
Waist lamp
|
sets * 4 pieces=24pcs * 16W LED Foshan lighting
|
|
|
light box
|
The light box is beautiful, without leakage of thread ends, and is sprayed with plastic. It is fixed with plastic
screws and sprayed with plastic, without dents and unevenness |
|
|
Electric control cabinet
|
The internal relay shall be of Delixi brand, and the font printing requirements shall be in English. Winner electric control
cabinet |
|
|
Others:
|
slot boxes, iron sheet beams, filter cotton frames, light boxes, and other spray molded materials should all be pure white
|
|
|
|
|
|
