Quick Details
-
Voltage:
-
Client's Local Standard
-
Dimension(L*W*H):
-
1000*800*800mm
-
Weight:
-
600 KG
-
Material:
-
vertical centrifuge
-
Application:
-
Mineral processing, material separate
-
Product name:
-
Vertical centrifuge
-
Capacity:
-
3-7 m3/h
-
Feeding size:
-
3-0.074mm
-
Packing:
-
According to the customer's requirements
-
Testing:
-
Before delivery
-
Keywords:
-
vertical centrifuge
-
Local Service Location:
-
None
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JC
-
Voltage:
-
Client's Local Standard
-
Dimension(L*W*H):
-
1000*800*800mm
-
Weight:
-
600 KG
-
Material:
-
vertical centrifuge
-
Application:
-
Mineral processing, material separate
-
Product name:
-
Vertical centrifuge
-
Capacity:
-
3-7 m3/h
-
Feeding size:
-
3-0.074mm
-
Packing:
-
According to the customer's requirements
-
Testing:
-
Before delivery
-
Keywords:
-
vertical centrifuge
-
Local Service Location:
-
None

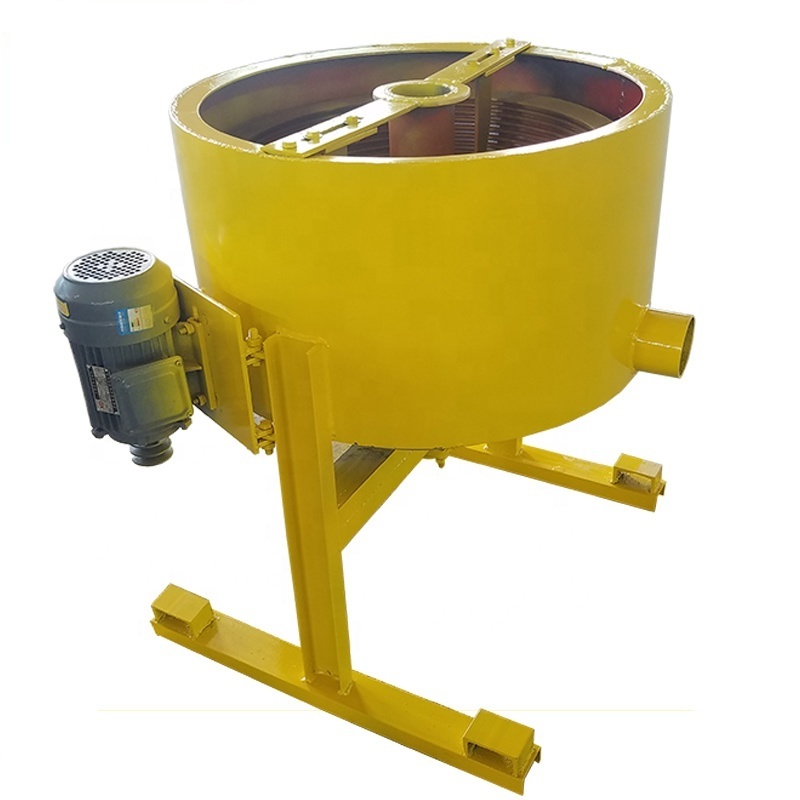

Simple vertical centrifuge for concentrate and refining gold:
The vertical centrifuge is developed according to the characteristics of the sand gold production in China. It is especially suitable for the selection of sand gold. It also has good separation effect for other large density minerals, such as tungsten sand and tin sand. It can replace chute and artificial elutriation to improve separation efficiency and reduce labor intensity. At present, it has been widely used in field geological survey, small gold mining and separation, and heavy sand separation in laboratories. Many combinations have been used in gold dredger both at home and abroad.
The mineral particles with different density and granularity are subjected to the action of friction, centrifugal force, gravity, medium buoyancy, hydrodynamic force, medium resistance and separation trough force in the inclined discline. Upward movement produces stratification, and then is discharged by water power and other functions. It becomes a concentrate and tailings.
The structure of the vertical centrifuge is composed mainly of the bracket, the disassembly plate, the overflow tank, the tilt adjuster, the water spray pipe, the motor, the reducer and so on. The foot pedal has a foot pedal device.
Simple vertical centrifuge for concentrate and refining gold:
-The recovery rate is as high as 96-97%, and the enrichment ratio can be as high as 1000 times. It
-The machine is small, portable, easy to operate, and can be moved.
-Many combinations, the products have been series, pedal type, diesel engine drive type, and AC electric type. If there are many pebbles in the river, it can be equipped with electric vibrating screen to remove large pebbles.
-Pre ore removal and classification before ore grading, the more uniform the grading, the better the beneficiation effect.
| Disc diameter(mm) | 600 |
| Working speeding(r/min) | 100~180 |
| Power(kw) | 0.75~1.1 |
| Dimension(mm) | 1000*800*800 |
| Weight(kg) | 150 |
| Drive | AC motor,diesel engine ect. |
| Feed time(min) | 20~40 |
| Feeding density(%) | 15~25 |
| Feeding size(mm) | 3~0.074 |
| Sediment percentage(-0.037)% | 15% |
| Capacity(m3/h) | 3~7 |
| Concentration ratio | 700~1000 |
| Grain recovery rate(0.5~0.2)% | 90~96 |
| Grain recovery rate(0.2~0.074)% | 80~90 |
| Grain recovery rate(0.074~0.037)% | 50~80 |
