Small Gravel and sand vibration mechanical shaker separator linear vibrating Screen sieve

Gravel and sand mechanical sieve shaker separator

1. Application of YK Circular mechanical seive shaker

YK series circular vibrating screen (sieve shaker separator) with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.

Vibrating screen for sand making and washing plant

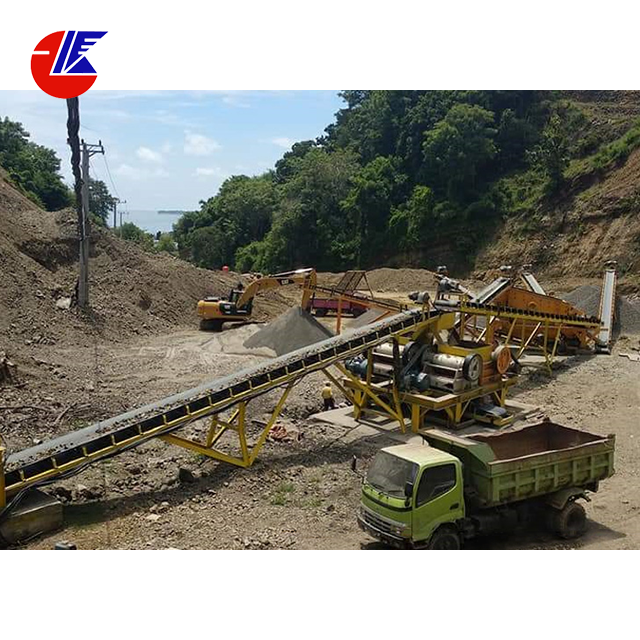

Vibrating screens installed at gravel and sand making sites:

2. Structure of vibrating screen

YK vibrating screen is mainly composed of screen box, screen mesh, vibrator, damping spring device, base, etc.
The side plate of the screener adopts the high quality of steel plate.

The screen mesh is easy to damage.
According to the requirements of the materials and consumers, the screen can be

• woven high manganese steel screen mesh
• punched screen plate
• rubber screen plate.

3. Working principle of vibrating screen

Circular vibrating screen adopts the cylindrical eccentric shaft exciter and essentric block to adjust amplitude.

During normal operation, the vibartion of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened.

The big and small materials fall from the upper side and lower side of the screen to get them separated.

4. Features of Zhongke vibrating screen structure

1. The exciting force is strong adopting the block eccentricity.

2. The beam and screen box is coupled with the high-strength bolt, no welding.

3. Simple structure, easy to maintain.

4. Adopt the tire coupling, in steady operation.

5. High efficiency of screening, large operational capacity, and long service life.

5. Installation and maintenance of vibrating screen

The vibrating screen should be started under the circumstances of no materials, fed into the materials when working steadily.

Firstly stop feeding the materials, and remove it from the surface, finally close the machine.

When working, observe the operating of the screener, if any abnormal running or sound happening, stop the machine timely for checking, find out the reasons, and remove the troubles.

6. Technical parameter of sieve shaker separator

Vibrating seive loaded nude packing, in container.
