Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xuanhai
-
Model Number:
-
330T/450T/540T
-
Voltage:
-
380V
-
Weight:
-
13500 KG
-
Marketing Type:
-
New Product 2023
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xuanhai
-
Model Number:
-
330T/450T/540T
-
Voltage:
-
380V
-
Weight:
-
13500 KG
-
Marketing Type:
-
New Product 2023
Products Description
Machine Advantages:

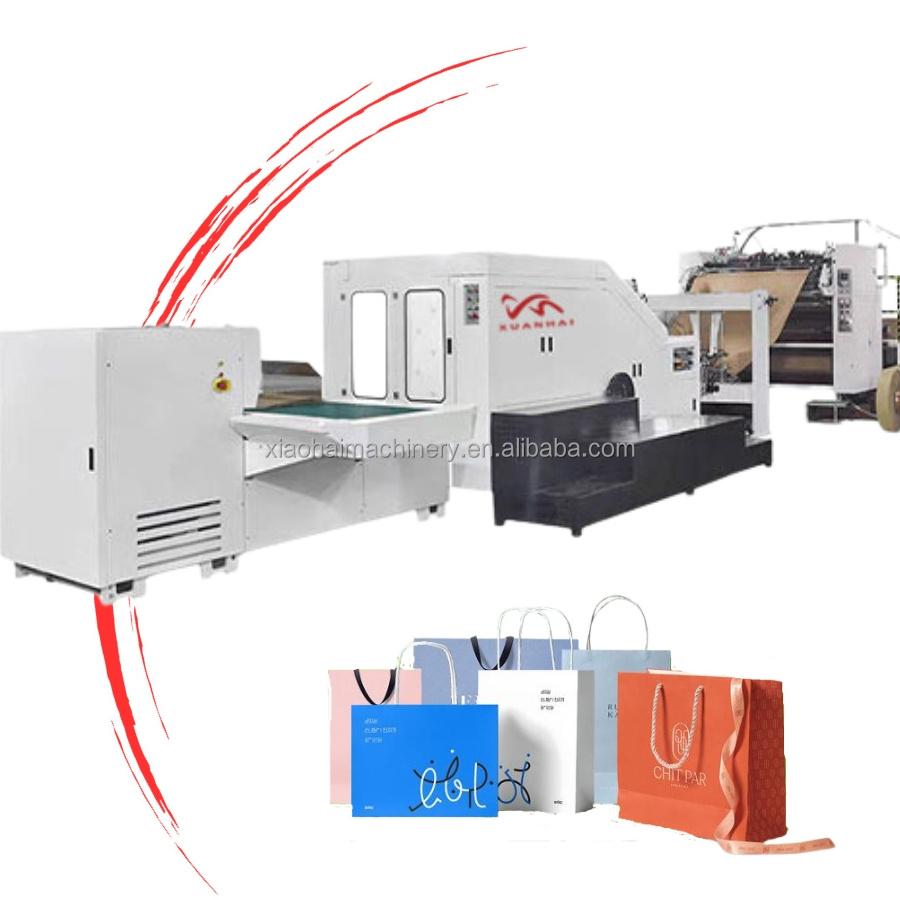

This paper bag machine is designed for the production of shopping paper bags with handle, it use the paper round ropes and reel paper to produce the twisted handle in the machine automatic, then deliver by the conveyor belt to paste in the primary color or printed paper roll, then the paper with hand glue through side gluing, forming, cutting off, open bottom, bottom gluing, closing bottom and conveying out of the bag, the whole process is completed simultaneously at one time. Therefore, it truly shows this machine is full automation production can effectively save labor costs.
This paper bag machine is designed for the production of shopping paper bags with handle, it use the paper round ropes and reel paper to produce the twisted handle in the machine automatic, then deliver by the conveyor belt to paste in the primary color or printed paper roll, then the paper with hand glue through side gluing, forming, cutting off, open bottom, bottom gluing, closing bottom and conveying out of the bag, the whole process is completed simultaneously at one time. Therefore, it truly shows this machine is full automation production can effectively save labor costs.
|
Model
|
FD-330T
|
FD-450T
|
FD-540T
|
|
Cutting length(Ful)
|
270-430mm
|
270-430mm
|
400-670mm
|
|
Bag width(Ful)
|
220-330mm
|
290-450mm
|
320-540mm
|
|
Bag Length(Ful)
|
225-370mm
|
225-370mm
|
320-580mm
|
|
Bottom width
|
60-180mm
|
80-220mm
|
120-260mm
|
|
Paper Thickness(Ful)
|
60-160g/m2
|
80-160g/m2
|
90-160/m2
|
|
Paper roll width(Ful)
|
585-1050mm
|
770-1370mm
|
910-1630mm
|
|
Roll paper diameter
|
φ1200mm
|
φ1200mm
|
φ1200mm
|
|
Paper core
|
76mm
|
76mm
|
76 mm
|
|
Handle Height
|
100mm
|
100mm
|
100mm
|
|
Patch length
|
152.4mm
|
203.2mm
|
203.2mm
|
|
Patch width
|
40-50mm
|
40-50mm
|
40-50mm
|
|
Handle distance
|
75mm
|
95mm
|
95mm
|
|
Rope diameter
|
φ3-5mm
|
φ3-5mm
|
φ3-5mm
|
|
Patch paper roll width
|
80-100mm
|
80-100mm
|
80-100mm
|
|
Patch paper thickness
|
100-135g/m2
|
100-135g/m2
|
100-135g/m"
|
|
Production speed for bags without handles
|
30-160bags/min
|
30-160bags/min
|
30-160bags/min
|
|
Production speed for bags with handles
|
30-120bags/min
|
30-120bags/min
|
30-120bags/min
|
|
Power Supply
|
380V 3Phase 35KW
|
380V 3Phase 35KW
|
380V3Phase 39KW
|
|
Machine weight
|
12000kg
|
13500kg
|
15000kg
|
|
Machine size
|
14000x5800x2400mm
|
14000x6000x2400mm
|
14000x6500x2400mm
|
Details Images
Open Bottom
Forming
Handle delivery
